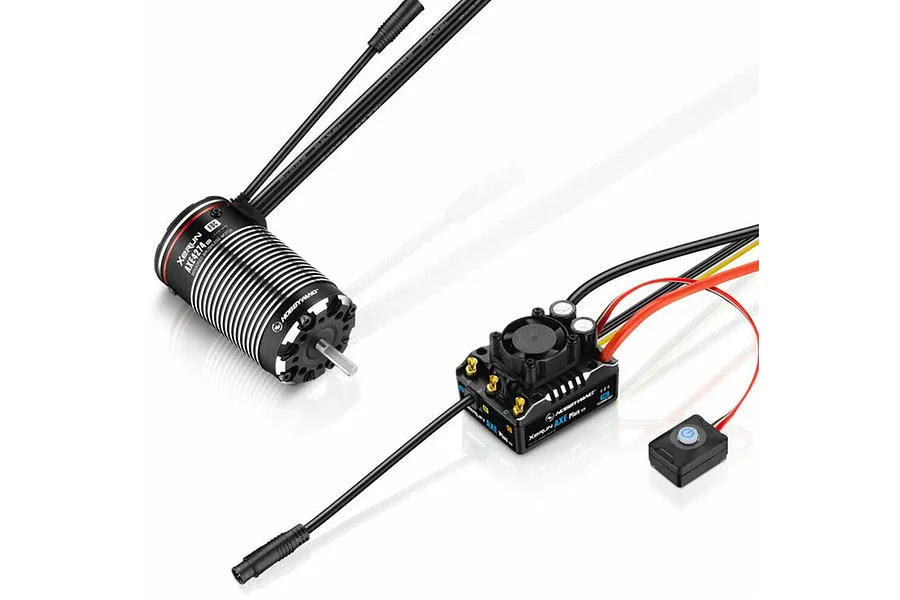

Hobbywing Xerun AXE Plus R3 135A ESC and AXE 4274SD 2000Kv Sensored Brushless Motor Combo

Brand: Hobbywing | SKU: 38020383
1 in stock

$425.37

Hobbywing XeRun AXE Plus R3: The Ultimate Power System for Demanding Rock Crawling!

Key Points
  • Sensored technology for improved response
  • Perfect for rock crawlers
  • Ideal for 1/8, 1/6 and 1/5 scale vehicles

Want more than 1?
and we'll notify you when the stock is here.

Fits 4 Vehicles

Login to My Garage to check compatibility.

Description

The Hobbywing XeRun AXE Plus R3 135A ESC and AXE 4274SD Sensored Brushless Motor Combo delivers the power and control you need to dominate the rocks. This combo is designed for serious rock crawlers, providing exceptional performance in demanding off-road environments. The high-torque 4274SD motor delivers exceptional climbing ability, while the 135A ESC offers advanced features like drag brake and hill hold for precise control on challenging terrain. With its waterproof and dustproof design, the XeRun AXE Plus R3 combo is ready for all-weather adventures. Experience the ultimate in rock crawling performance with the Hobbywing XeRun AXE Plus R3 combo.

Features
  • Specifically designed for 1/10th, 1/8th, and 1/6th scale rock crawlers.
  • High power output with a continuous current of 135A.
  • Built-in switch mode BEC with adjustable voltage (6V/7.4V/8.4V).
  • Advanced programming features including drag brake, hill hold, and variable throttle curves.
  • Waterproof and dustproof with an IP67 rating.
  • High-power 4274 size motor is suitable for 1/8th, 1/7th, and 1/6th scale crawlers.
  • IP67 waterproof and dustproof for reliable performance in all conditions.
  • Precision magnetic sensor for accurate rotor position sensing and smooth operation.
  • Supports optional motor adaptor for compatibility with different mounting hole patterns.
  • Premium materials: high-quality aluminium CNC shell, premium bearings, ultra-thin silicon steel sheets, high-temperature-resistant enamelled wire, and high-toughness alloy output shaft
  • Genuine Hobbywing Product
Specifications

ESC

  • Length: 49.5mm (1.95")
  • Width: 37.9mm (1.49")
  • Height: 32.8mm (1.29")
  • Weight: 126.5g (4.46oz)
  • Continuous/Peak Current: 135A/600A
  • Waterproof: Yes
  • Motor Limit: Only supports XeRun AXE R2/R3 motors
  • BEC: Switch Mode 6V/7.4V/8.4V @ 6A
  • Voltage Limit: 2-6S LiPo
  • Programmable: Yes (via built-in Bluetooth)
  • Scale: 1/10th, 1/8th, 1/6th
  • Sensored: Yes

Motor

  • KV: 2000Kv
  • Voltage Limit: 2-6S
  • Diameter: 42mm (1.65")
  • Length: 74mm (2.91")
  • Shaft Diameter: 5mm (0.20")
  • Weight: 415g (14.6oz)
Included Items
  • 1x Hobbywing Xerun AXE Plus R3 135A ESC
  • 1x AXE 4274SD 2000Kv Sensored Brushless Motor Combo
Note
  • Requires 30850501 to fit into vehicles such as the SCX6


Specifications
ESC (Electronic Speed Controller)
For Motor Type: Brushless Sensored
Max Voltage: 22.2V
Waterproof Design: Yes
Burst Amps: 600A
Continuous Amps: 135A
Motor Connectors: Bare Wires
Battery Connector: XT60
LVC: Yes
Programmable: Yes
Cooling Method: Fan
BEC Voltage: 6V, 7.4V, 8.4V
Dual Motor: No
Motor
Type: Sensored
KV: 2000KV
Sensored: Yes
Length: 74mm
Diameter: 42mm
Shaft Diameter (mm): 5
Reviews
Hobbywing Xerun AXE Plus R3 135A ESC and AXE 4274SD 2000Kv Sensored Brushless Motor Combo
1 reviews

Write review

Name

Rate this product

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

1 out of 5 stars

2 out of 5 stars

3 out of 5 stars

4 out of 5 stars

5 out of 5 stars

5 out of 5 stars

Odysseus T Verified Buyer

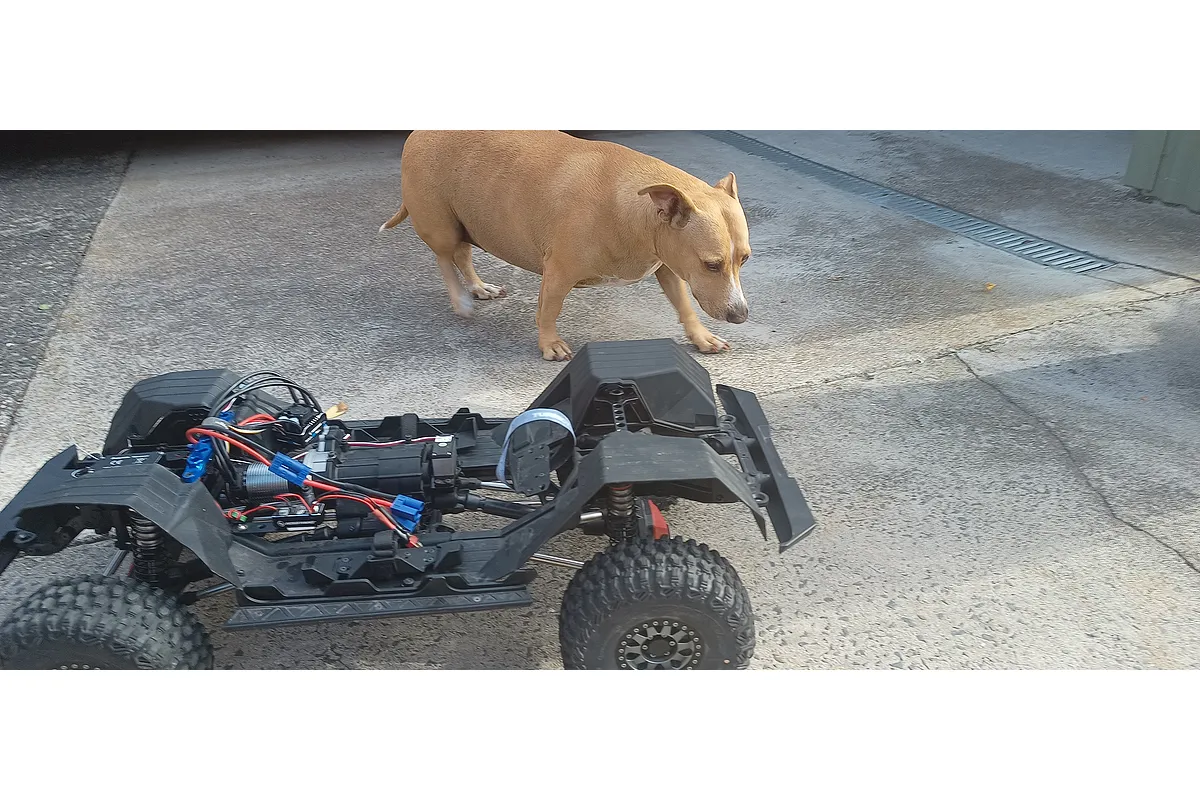

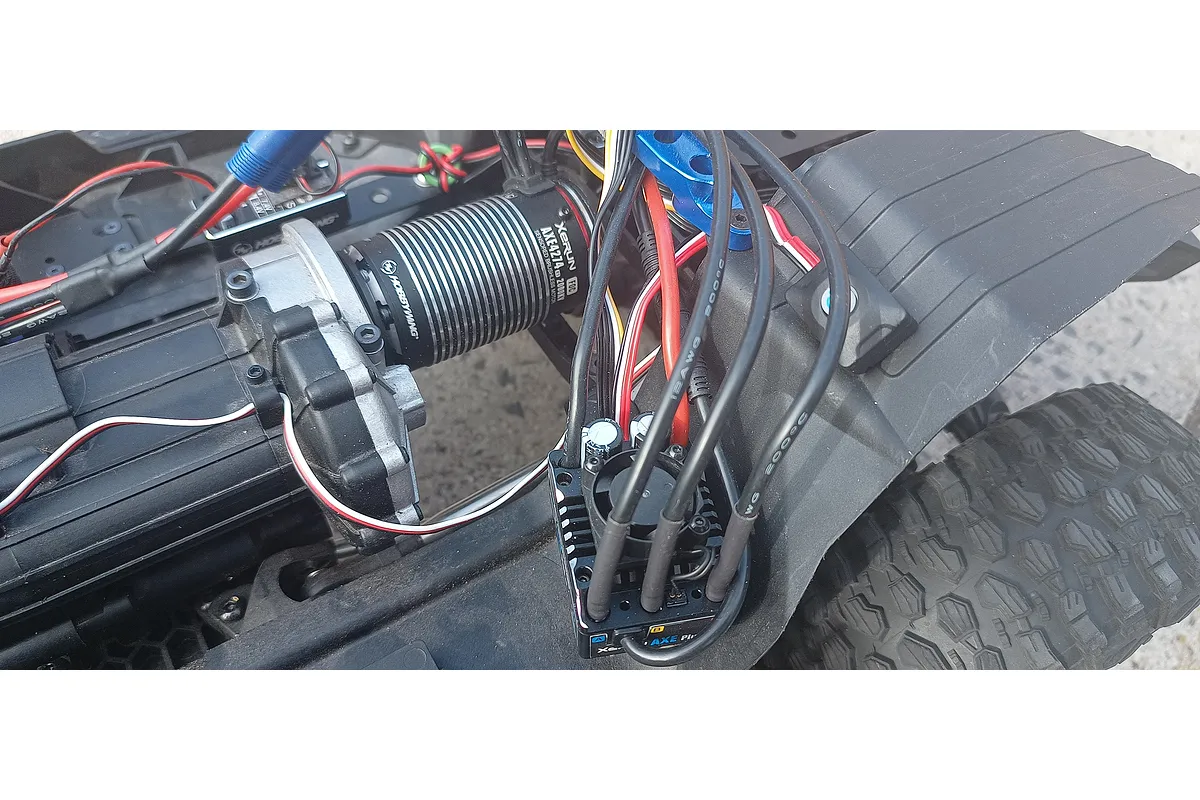

I've left a Product review regarding the company and their stellar service. The Motor/ESC combo is jaw dropping. It is made for the SCX6, but I never expected this much power. It's much better than the stock combo and it stays pretty cool to the touch. When using this, you will need an adapter plate for the SCX6, you need an extra washer for the engine bolts as they bottom out, which has the tiniest bit of side to side movement. I am only running 4S and it's nuts on that.
