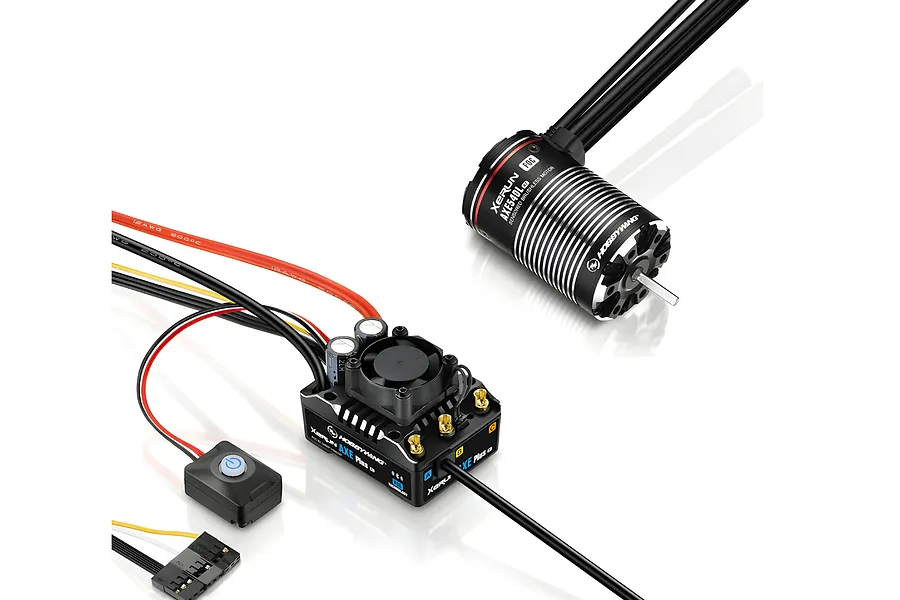

Hobbywing Xerun AXE Plus R3 135A ESC and AXE 540L 1400Kv Brushless Motor Combo
- Brushless
Part no. 38020385
1 in stockWrite a review
$324.17
or 4 fortnightly payments of $81.04 with afterpay
Hobbywing XeRun AXE Plus R3 Combo: The Ultimate Power System for 1/10 Scale Rock Crawlers!
- Sensored technology for improved response
- Perfect for rock crawlers
- Compatible with 1/10, 1/8 and 1/6th scale vehicles
1 in stock · Order in 12h 34m, dispatched today
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Overview
The Hobbywing XeRun AXE Plus R3 135A ESC and AXE 540L Brushless Motor Combo is a powerhouse designed to take your rock crawling experience up to the highest levels. This combo delivers exceptional torque and smooth control, making it ideal for tackling challenging terrains. The 135A ESC boasts advanced features like drag brake and hill-hold, specifically programmed for rock crawlers. With its waterproof and dustproof design, the XeRun AXE Plus R3 combo is ready for all-weather adventures. The motor provides ample power for tackling steep inclines and obstacles, while the CNC machined aluminium housing ensures efficient heat dissipation. Whether you're a seasoned rock crawler or just starting, the Hobbywing XeRun AXE Plus R3 combo delivers the performance and reliability you need to dominate the trail.
Features
- Specifically designed for 1/10th scale rock crawlers
- High power output with a continuous current of 135A and a burst current of 800A
- Built-in switch mode BEC with a maximum output of 6A and an adjustable voltage of 6V or 74V
- Advanced programming features including drag brake, hill hold, and variable throttle and brake curves
- Multiple protection features: low-voltage cutoff, thermal protection, and overload protection
- Waterproof and dustproof with an IP67 rating
- 4-pole 12-slot design for high torque and smooth operation
- CNC machined aluminum housing for efficient heat dissipation
- High-purity copper windings for maximum efficiency and performance
- Powerful neodymium magnets for increased torque and power
- Rebuildable design for easy maintenance and extended lifespan
- Sensored technology for finer control
- Genuine Hobbywing product
In the box
- 1x Hobbywing Xerun AXE Plus R3 135A ESC
- 1x AXE 540L 1400Kv Brushless Motor Combo
Specifications
| ESC | |
| Length | 49.5mm (1.95") |
| Width | 37.9mm (1.49") |
| Height | 32.8mm (1.29") |
| Weight | 126.5g (4.46oz) |
| Continuous/Peak Current | 135A/600A |
| Waterproof | Yes |
| Motor Limit | Only supports XeRun AXE R2/R3 motors |
| BEC | Switch Mode 6V/7.4V/8.4V @ 6A |
| Voltage Limit | 2-6S LiPo |
| Programmable | Yes (via built-in Bluetooth) |
| Scale | 1/10th, 1/8th, 1/6th |
| Sensored | Yes |
| Motor | |
| KV | 1400Kv |
| LiPo Cells | 2-3S |
| Diameter | 36mm (1.42") |
| Length | 57.8mm (2.28") |
| Shaft Diameter | 3.175mm (0.125") |
| Weight | 232g (8.1 oz) |
Motor
| Type | Sensored |
|---|---|
| KV | 1400KV |
| Sensored | Yes |
| Length | 57mm |
| Diameter | 36mm |
| Shaft Diameter | 3.175mm (1/8") |
ESC (Electronic Speed Controller)
| For Motor Type | Brushless Sensored |
|---|---|
| Max Voltage | 22.2V |
| Waterproof Design | Yes |
| Burst Amps | 600A |
| Continuous Amps | 135A |
| Motor Connectors | Bare Wires |
| Battery Connector | XT60 |
| LVC | Yes |
| Programmable | Yes |
| Cooling Method | Fan |
| BEC Voltage | 6V, 7.4V, 8.4V |
| Dual Motor | No |
