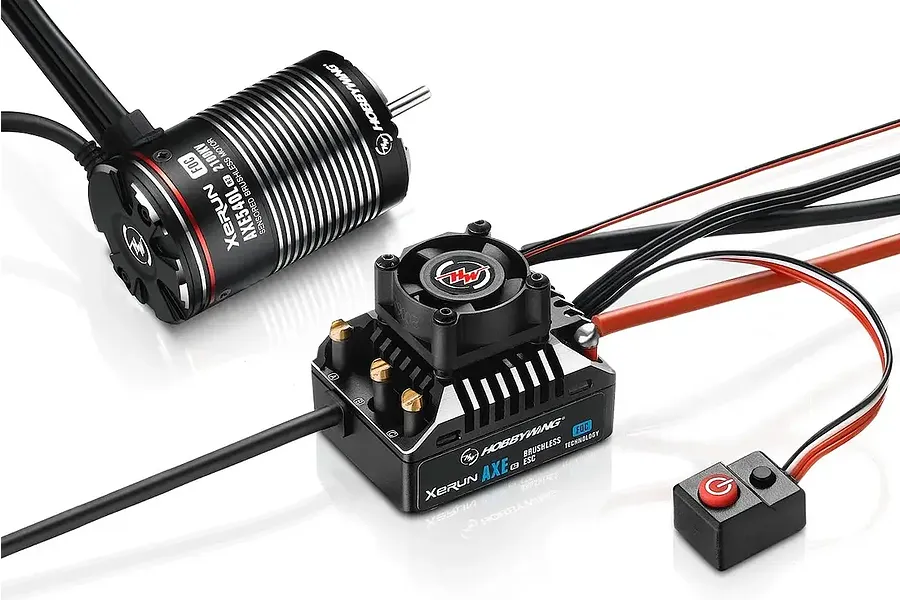

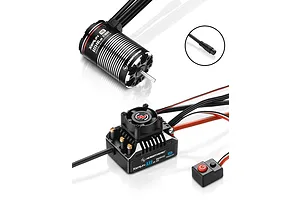

Name: Hobbywing XeRun AXE 540L R2 1400Kv FOC Sensored Brushless 80A Motor and ESC Crawler Combo
Brand: Hobbywing
SKU: HW-38020311
Price: 341.37 AUD
Availability: OutOfStock

Frequently bought together

FlySky FS-GT5 2.4Ghz 6ch Radio with FS-BS6 Receiver
12 reviews
$140.12

Overview

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Field Oriented Control (FOC) technology reads the magnetic field of the motor and allows extremely precise operation. The closed-loop AXE system maintains the RPM to the motor under load conditions. Matching RPM to throttle position allows extremely consistent control. FOC also makes the whole system extremely silent — the motor doesn't create the annoying PWM noise when it is running.

Note

Xerun AXE series is a closed system: AXE ESCs work exclusively with Xerun AXE brushless motors.

Features

Field-Oriented Control for Super Linearity & High Torque & Extreme Silence
Chip-type magnetic encoder guarantees consistency between three phases' signals and outputs the precise rotor position
Polarity protection to solve the problem of using incorrect wires
Waterproof and dust-proof design (IP67 standards)
Intelligent torque output & speed closed-loop control for easy control and consistent motor RPM
Adjustable drag brake & drag brake rate control (maximum 200%)
Unprecedented parking capacity on slopes, with no jerky stops
Read and update ESC firmware via smartphone
Incorporates Staggered Pole Technology for zero cogging effect & torque ripping
Sensor harness provides firm connection between motor & ESC and waterproofs sensor ports
Advanced Electronic Switch features a waterproof, dust-proof & shock-resistant design
Multiple protections: low-voltage cutoff, thermal, fail-safe (throttle signal loss), motor lock-up, and overcurrent

In the box

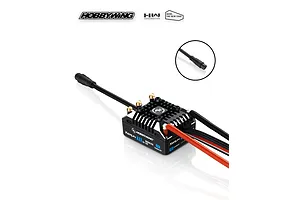

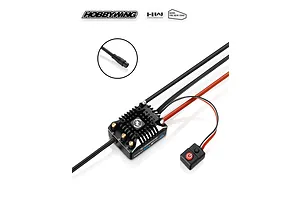

1x AXE R2 FOC Brushless ESC

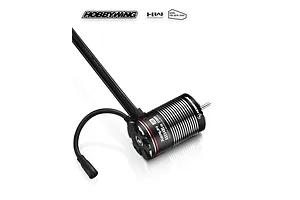

1x AXE 540L R2-1400KV FOC Brushless Motor

Specifications

	ESC:
Brushless	Yes
Cont/Peak Current	80A/480A
Motor Compatibility	Xerun AXE R2 Series
Applications	1/10th Rock Crawler
BEC Output	6V/7.4V Switchable, Continuous Current of 6A
Connectors	Input/Output Ends: No Connectors
Size/Weight	47.4(L)x36.2(W)x26.5(H)mm / 108g (included input wires)
ESC Programming	iOS or Android smartphone (installed with the HW Link app)
	Motor:
Brushless	Yes
KV	1400KV
LiPo	2-3S
Resistance	36.9
No-load Current	1.7A
Motor Diameter/Length	36/57.8mm (1.42/2.28")
Shaft Diameter/Length	3.175/16mm (0.125/0.63")
Poles	4
Weight	232g

Motor

Type	Brushless
KVRPM (Revolutions Per Minute) per Volt	1400KV
LengthLength of the motor can in mm	63.8mm
DiameterDiameter of the motor can	36mm
Shaft Diameter	3.175mm (1/8")

ESC (Electronic Speed Controller)

For Motor Type	Brushless
Max Voltage	11.1V
Waterproof Design	Yes
Continuous Amps	80A
Battery Connector	Bare Wires
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes
Cooling Method	Air
BEC Voltage	6V, 7.2V
Dual Motor	No
