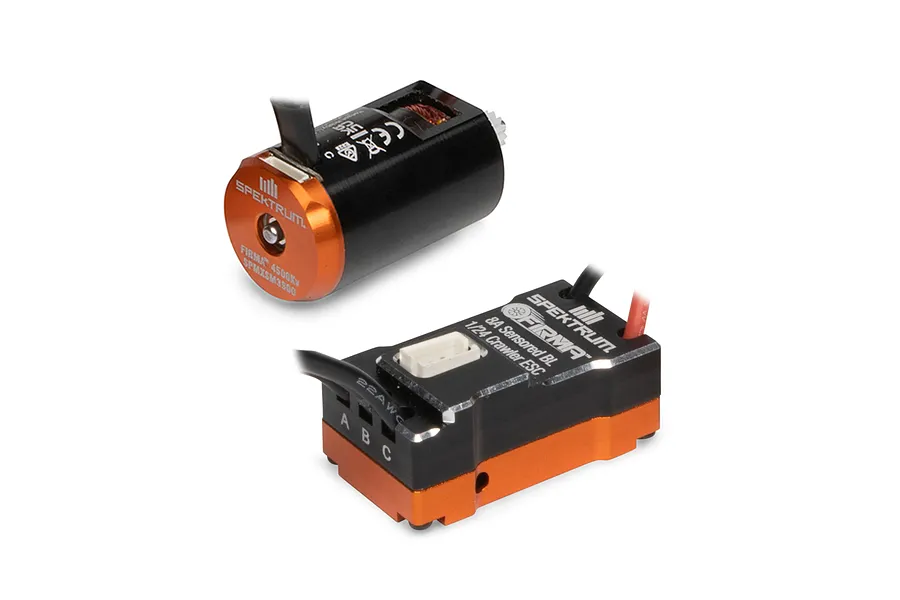

Spektrum Firma 8A Sensored Brushless Smart ESC & Motor Combo
Videos
Spektrum Firma 8A Sensored Brushless Smart ESC & Motor Combo
Brand:
Spektrum
|
SKU: SPMXSEMC18
Loading compatibility information...
Description
Please Note: Axial SCX24 vehicles equipped with the Horizon Hobby 2.4Ghz 4Ch Transmitter (HRZ00014) & EC2 2-in-1 Receiver (HRZ00015) require the Spektrum SLT3 2.4Ghz 3Ch SLT Radio w/ SR315 Receiver upgrade for full functionality. Please refer to the manual for more information. (2021 Ford Bronco, Jeep GT Gladiator, and Jeep Wrangler will require this upgrade).FeaturesDrop in upgrade for AXIAL SCX24 & AX24 vehicles

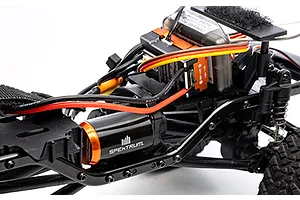

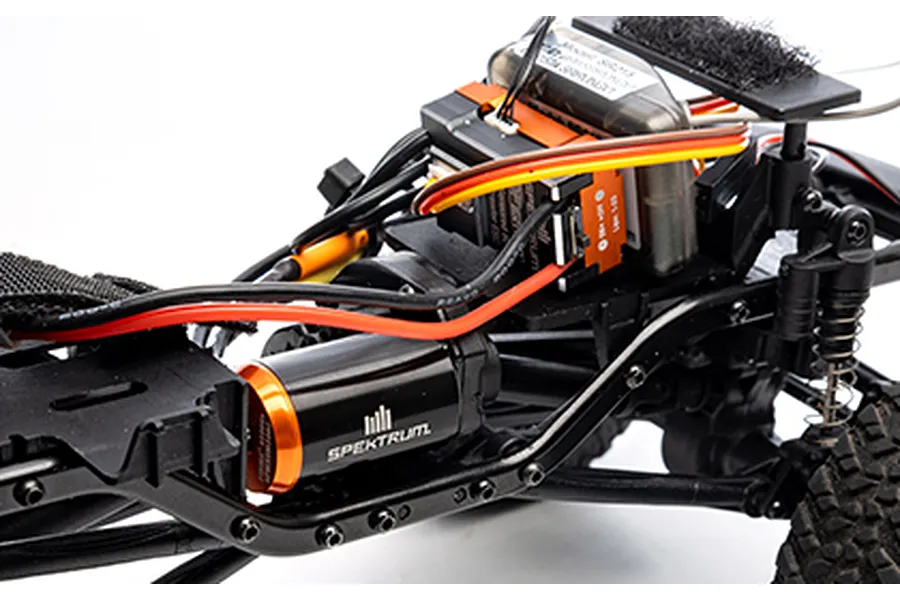

The Spektrum Firma 1/24th Scale Sensored Brushless motor and ESC provides Axial SCX24 & AX24 enthusiast with a drop-in motor & ESC system to take their crawling to the next level.

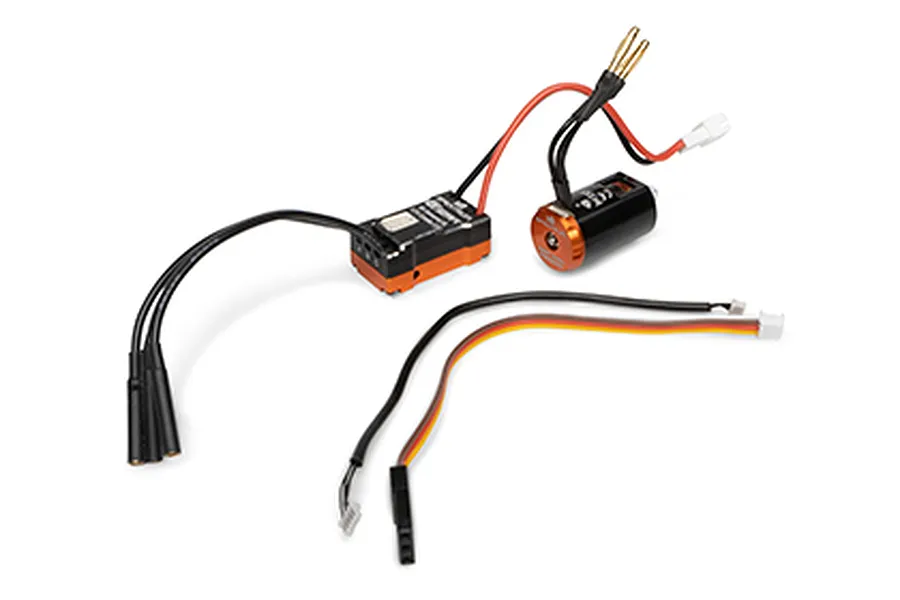

All includedSystem includes motor, ESC, sensor wire and pinion gears and is preinstalled with 2mm bullet connectors and JST PH 2.0 battery connector to fit the Dynamite 7.4V 350mAh Lipo battery included with the Axial SCX24 & AX24 vehicles.
| Specifications | Value |
|---|---|
| Low-Voltage Cutoff Programmable | No |
| Number of Poles | 2 |
| Overload Protection | Yes |
| Output Connector | 2mm Bullet |
| Auto Cutoff | Yes |
| Maximum Burst Current | 40A |
| Maximum Continuous Current | 8A |
| Motor Type | Brushless Sensored |
| Forward | Yes |
| Reverse | Yes |
| Brakes | Integral with ESC |
| BEC | Yes |
| Input Voltage | 1 - 2S LiPo |
| RPM/Volt (Kv) | 4500 |
| Sensored | Yes |
| Connector Type | PH 2.0 (High-Current Ultra Micro) |
| ESC Type | Brushless Sensored |
Specifications
ESC (Electronic Speed Controller)
-
For Motor Type
- Brushless
-
Continuous Amps
- 40A
-
Dual Motor
- No
-
Motor Connectors
- 2.0mm Bullet
-
BEC Voltage
- 6V, 7.2V
-
Waterproof Design
- Yes
-
Cooling Method
- Air
-
Programmable
- Yes
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Max Voltage
- 11.1V
Motor
-
KVRPM (Revolutions Per Minute) per Volt
- 4500KV
-
Type
- Brushless
-
Shaft Diameter (mm)
- 2
