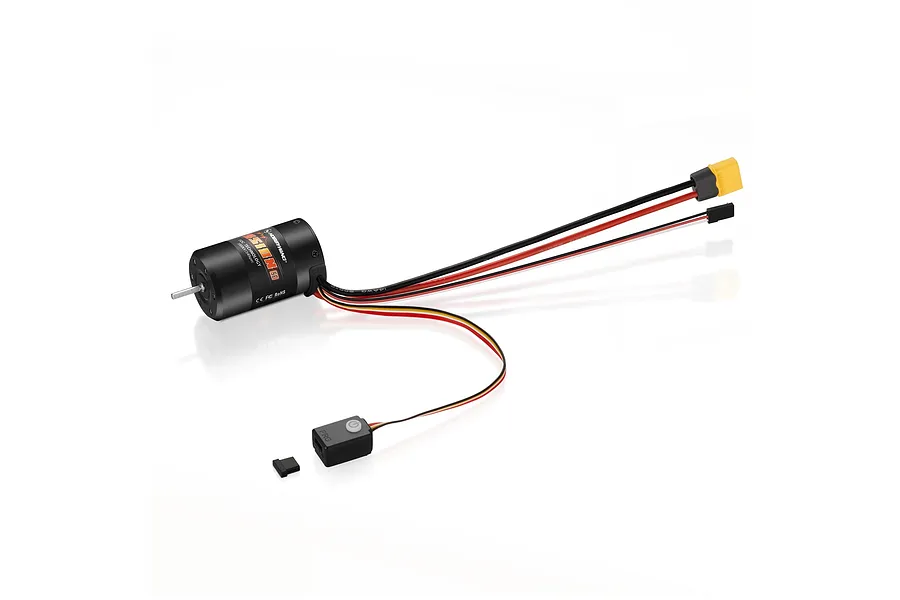

Hobbywing Quicrun Fusion SE 2 in 1 1200KV 540 Spec Motor w/ Built in ESC
Hobbywing Quicrun Fusion SE 2 in 1 1200KV 540 Spec Motor w/ Built in ESC
Brand:
Hobbywing
|
MPN: 30404318
$137.27
or 4 fortnightly payments of $34.32 with
2-in-1 integrated 1200KV brushless sensored motor and ESC for 1/10 rock crawlers with IP67 waterproofing, FOC drive, and cruise control.
- Fully integrated 2-in-1 ESC and motor for simplified wiring and compact installation
- FOC/sine wave drive for ultra-smooth low-speed control ideal for rock crawling
- IP67 waterproof and dustproof for all weather and terrain conditions
- 1200KV motor with 40A continuous current rating
- Cruise control and slope slow-descent function built in
Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Compatible with
26 products.
See Compatibility
Frequently Bought Together
Related Products
Description
Features
- Integrated ESC and motor design greatly reduces overall volume and weight, and simplifies car frame layout and wiring.
- FOC driving mode delivers strong low-speed torque with smooth running at extreme low speeds — superior to common sensored brushless systems, even better than brushed power.
- Sine wave driving mode provides high efficiency, low heat generation, extended runtime, and quieter, smoother motor operation.
- IP67 protection rating — excellent waterproof and dustproof performance across mud, silt, ice, snow, and water.
- Intelligent torque output and speed closed-loop control with cruise control and steep slope slow-descent function.
- Active drag brake force adjustment for strong parking capacity on slopes.
- Multiple protection functions: battery low-voltage protection, overheat protection, throttle-loss protection, lock-up protection.
- Supports LED program box for ESC parameter setting via independent parameter interface integrated on the electronic switch.
Specifications
-
Application
- 1/10th Rock Crawler, Brushless Sensored system
-
Waterproof
- Yes (IP67)
-
Continuous/Peak Current
- 40A
-
BEC Output
- 2-3S LiPo / 6-9 Cell NiMH
-
Motor KV
- 1200KV
-
Diameter / Length of Motor
- 36mm / 58.1mm
-
Shaft Diameter / Exposed Shaft Length
- 3.175mm / 16.5mm
-
Motor Poles
- 4
-
Input Wires
- Red 14AWG 200mm × 1 / Black 14AWG 200mm × 1
-
Input Connectors
- XT60
-
ESC Programming
- via LED Program Box
-
Program Port
- Independent programming interface (switch position)
-
Firmware Upgrade
- Not supported
-
Size / Weight
- 36 × 58.1mm / 201g (including wires & connectors)
Motor
-
Type
- Brushless
-
KVRPM (Revolutions Per Minute) per Volt
- 1200KV
-
LengthLength of the motor can in mm
- 58.1mm
-
DiameterDiameter of the motor can
- 36mm
-
Shaft Diameter
- 3.175 (1/8")mm
ESC (Electronic Speed Controller)
-
For Motor Type
- Brushless
-
Max Voltage
- 11.1V
-
Waterproof Design
- Yes
-
Continuous Amps
- 40A
-
Battery Connector
- XT60
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Air
-
BEC Voltage
- 6V, 7.4V
-
Dual Motor
- No
