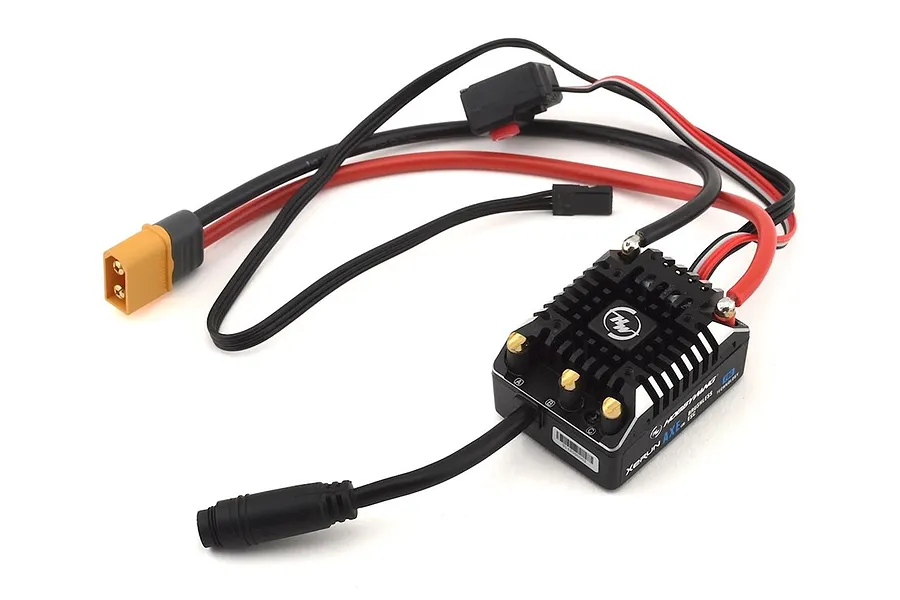

Hobbywing XeRun V1.1 AXE-FOC Sensored Brushless 60A Crawler ESC

  • Brushless

Part no. 30112101

3 in stockWrite a review

Videos

Now $198.13was $247.67 You Save 20%

Sale now on

or 4 fortnightly payments of $49.53 with afterpay

Check fit: add your vehicle to My Garage

Hobbywing V1.1 AXE-FOC 60A brushless ESC with FOC technology, built-in Bluetooth, and smartphone programming via the Hobbywing APP.

  • FOC (Field Oriented Control) technology for smooth, silent power at low RPMs under high load
  • 60A continuous current rating, 2-3S LiPo / 6-9 Cells NiMH input
  • Built-in Bluetooth connectivity for programming via the Hobbywing APP
  • Proportional brake with adjustable braking force and reversible with lockout
  • Programmable low voltage cut-off
Select Male Connector

Pay later with afterpay zip PayPal

  • 3 in stock · Ships Friday · order by Friday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Fits 3 vehiclesSee which

Videos

Overview

The Hobbywing V1.1 AXE-FOC Brushless ESC is packed full of features — simply add a Hobbywing FOC compatible brushless motor and you'll have the ultimate power plant for your 1/10 RC crawler.

The FOC (Field Oriented Control) motor allows your RC Crawler to maintain low RPMs regardless of the load, making it the ideal technology for RC crawlers as it enables smooth power at low RPMs while being under high load applications such as rock climbing and hill climbs. It is also extremely silent. The Hobbywing AXE ESC has built-in Bluetooth connectivity making reading all the data collected by the AXE ESC super easy, and the hassle of setting up/tuning of any of the listed programmable options easy via your smartphone (all done through the Hobbywing APP).

Note

IMPORTANT: The Hobbywing Xerun AXE series is a closed system. Due to its advanced technology, the HOBBYWING Xerun AXE ESC works exclusively with the Xerun AXE brushless motor.

Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Specifications

Max Input Voltage2-3S LiPo / 6-9 Cells NiMH
Amp Rating60A
BrakeProportional with Adjustable Braking Force
ReversibleYes — with lockout
Low Voltage Cut-OffYes, programmable
SizeComing Soon
Weight w/ WiresComing Soon
Output Motor ConnectorsComing Soon

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage11.1V
Waterproof DesignYes
Motor ConnectorsN/A
Battery ConnectorXT60
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodAir
BEC Voltage6V, 7.4V
Dual MotorNo
