Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

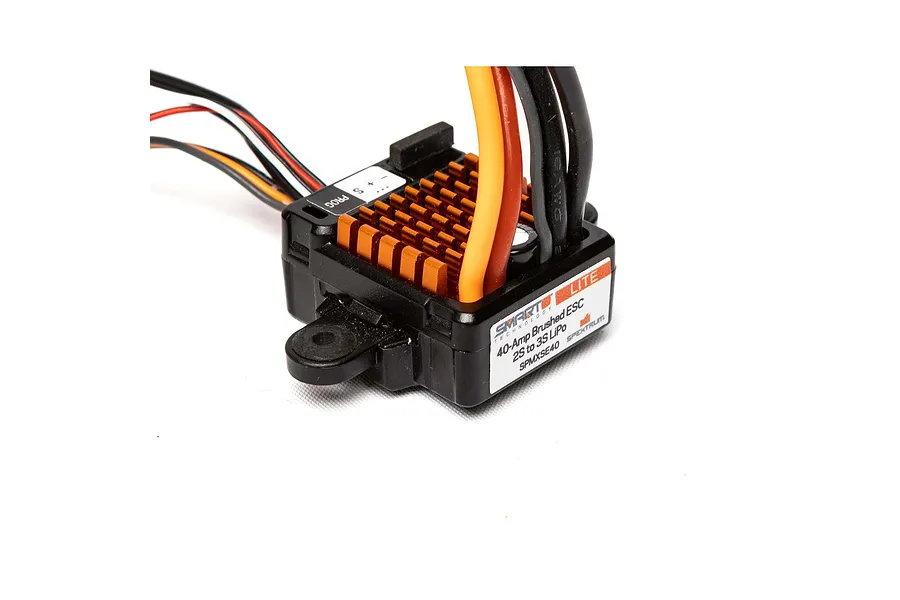

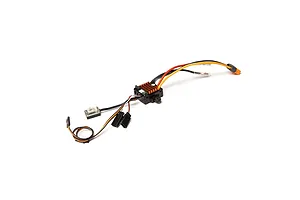

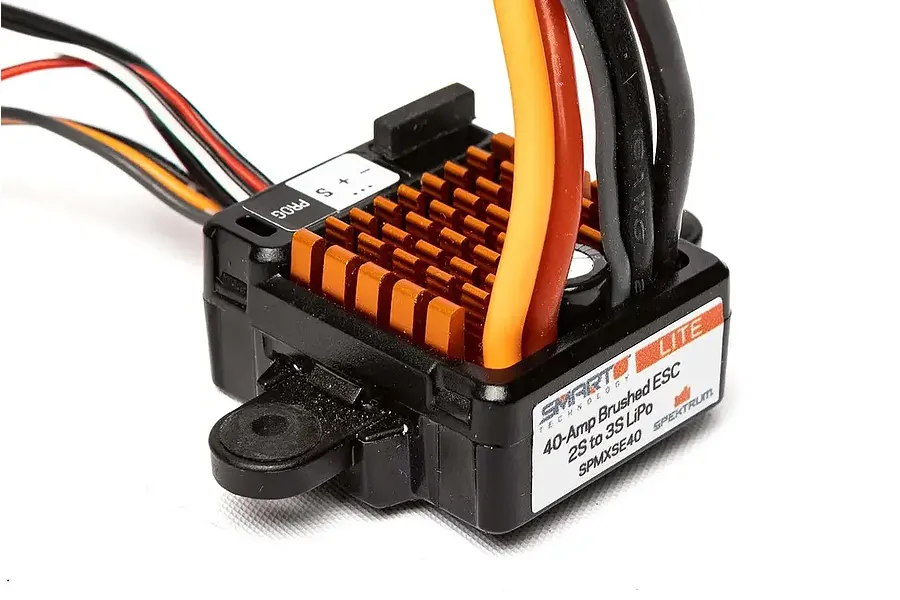

The Spektrum Firma Lite 40A Waterproof Brushed Smart ESC is the perfect all-weather power solution for your 1/10th scale RC vehicles. This Smart ESC combines 'plug-and-play' simplicity with advanced telemetry data for optimal performance and confidence in your setup.

Video

Features

• Waterproof design for all-terrain adventures

• 40 Amp continuous power - ideal for 1/10 scale crawlers and scalers

• 2S-3S LiPo Compatible

• Smart all-in-one telemetry

• Integrated LED light power outputs for simple installation

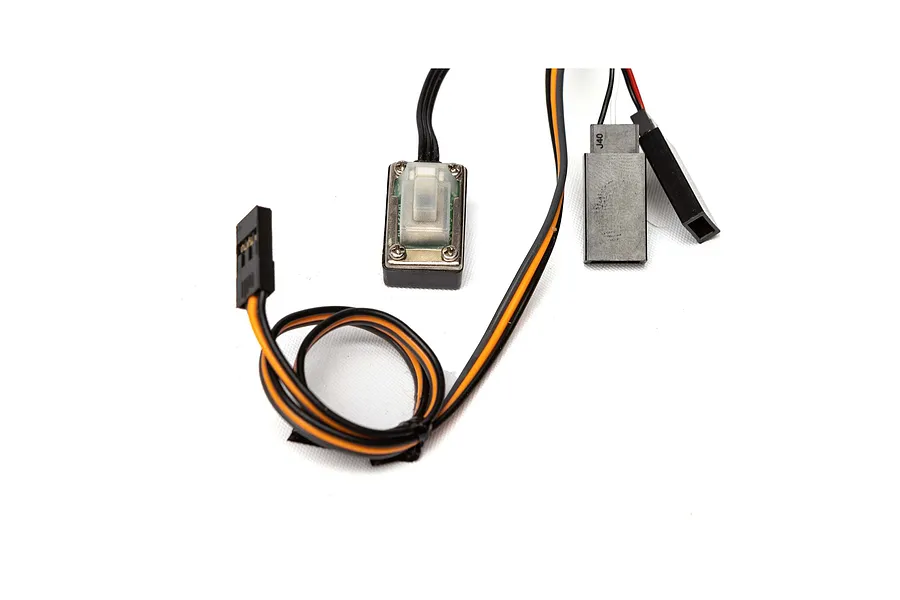

• Includes 2 LED Light Strings (Red and White)

• Adjustable high-power BEC (6V or 7.4V, 4amp)

• Genuine Spektrum product

Specifications

• Length: 36mm (1.41 in)

• Width: 30mm (1.18 in)

• Height: 18mm (0.71 in)

• Weight: 48g (1.69oz)

• Continuous/Peak Current: 40A/160A

• Waterproof: Yes

• Motor Limit: 540/550 Size Motors

• BEC: 6V, 7.4V @ 4A

• Voltage Limit: 2-3S Li-Po / Li-Fe; 5-9 Cell Ni-MH / Ni-Cd

• Programmable: Yes

• Scale: 1/10th

• Sensored: No

Note

• Smart Lite ESCs do not provide Smart Battery data.

• Please see manual for Waterproof Usage Guidelines.

Included items

Description	QTY
Spektrum Firma Lite 40A Waterproof Brushed ESC w/ Smart Technology	1
LED Light Strings (Red and White)	2
