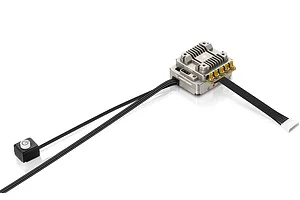

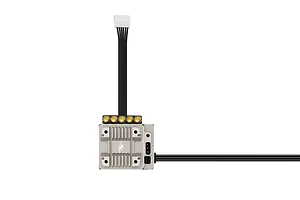

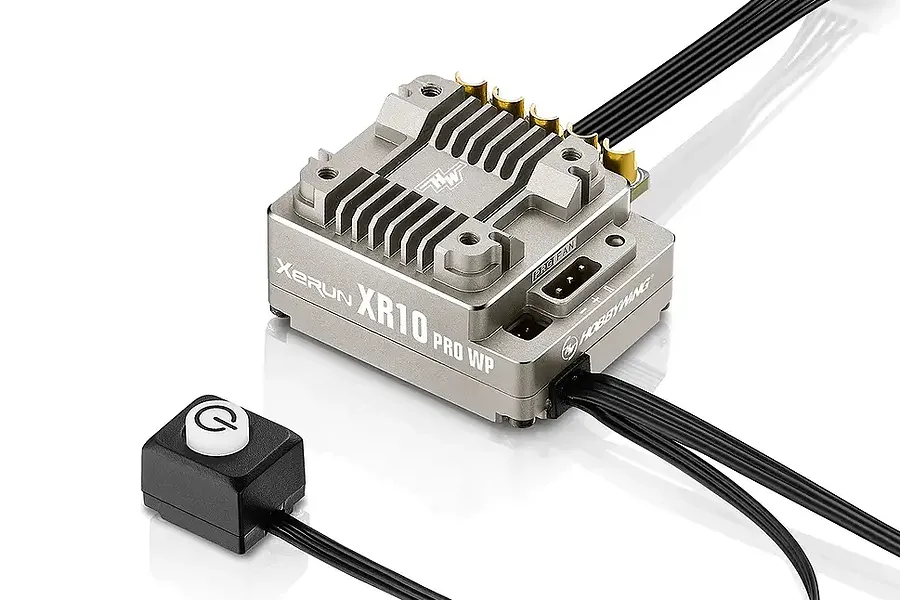

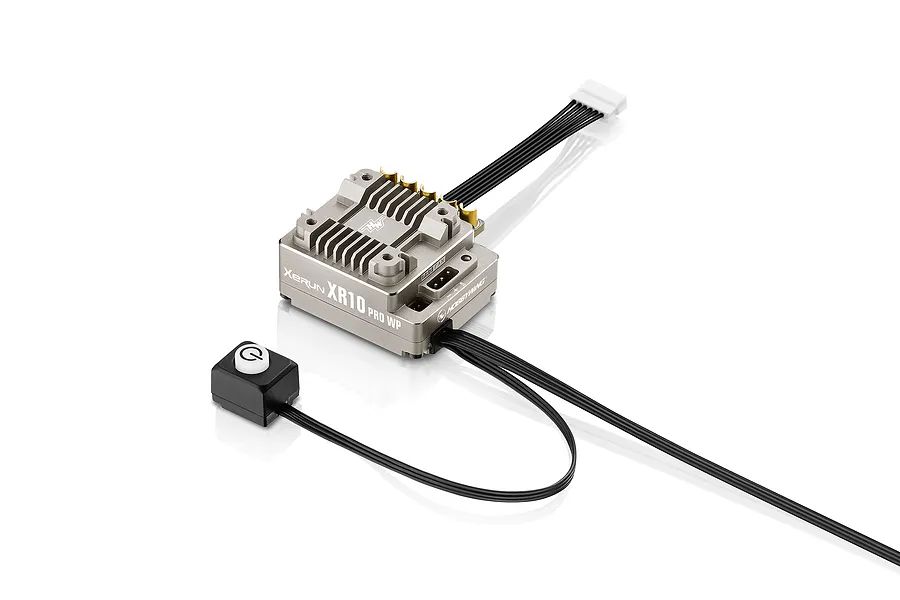

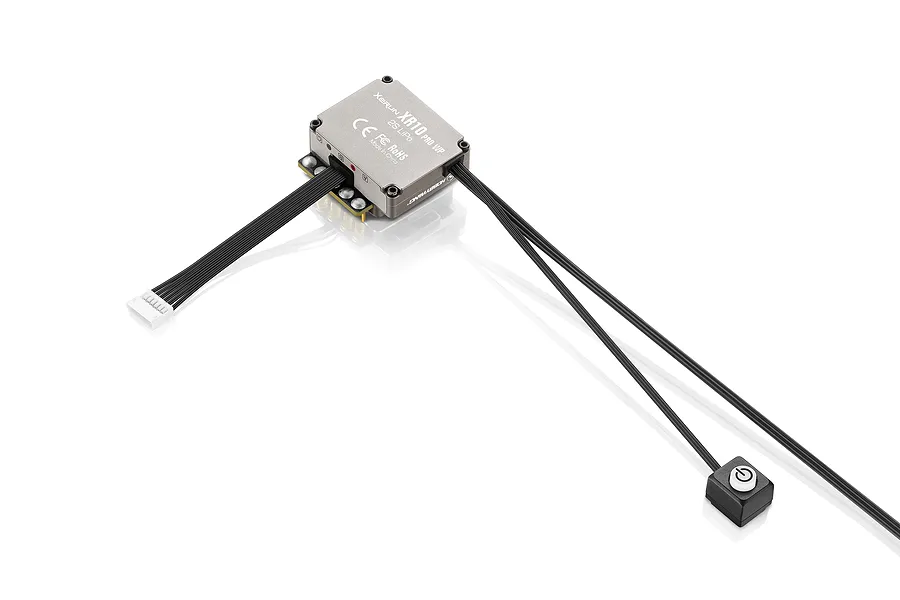

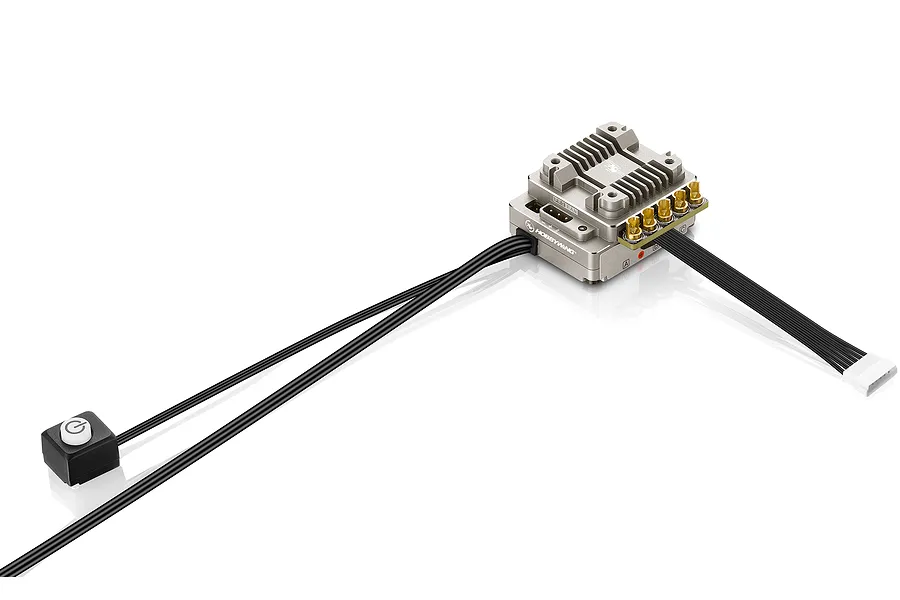

Name: Hobbywing XR10 Pro 160A Waterproof Brushless ESC
Brand: Hobbywing
SKU: HW-30112618
Price: 318.00 AUD
Availability: InStock

Overview

Dominate the track with the Hobbywing XR10 Pro 160A Waterproof Brushless ESC. Designed for competitive 1/10 scale racing, this ESC delivers extreme power, precise control, and advanced tuning options. Its waterproof design and robust construction ensure unwavering performance in all conditions.

Note

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

Super internal BEC makes it perfect for high voltage servos
Waterproof and dustproof for all-weather condition racing
Advanced programming options for fine-tuning
Compact design allows for easy installation
Ready for an optional 25x25mm 5–7.4V fan for increased cooling
Firmware updates available online to ensure you always have the most up to date software
Multiple protection features keep the ESC safe
Genuine Hobbywing Product

In the box

1x Hobbywing XR10 Pro 160A Waterproof Brushless ESC

Specifications

Length	37.7mm (1.48 in)
Width	37.2mm (1.46 in)
Height	19.6mm (0.77 in)
Weight	95.6g (3.37 oz)
Continuous/Peak Current	160A/1200A
Waterproof	Yes
Motor Limit	N/A
BEC	5V–7.4V @ 5A
Voltage Limit	2S LiPo (7.4V max)
Programmable	Yes
Scale	1/10th
Sensored	Yes

ESC (Electronic Speed Controller)

For Motor Type	Brushless
Max Voltage	7.4V
Waterproof Design	Yes
Burst Amps	1200A
Continuous Amps	160A
Motor Connectors	N/A
Battery Connector	N/A
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes
Cooling Method	Air
BEC Voltage	5V, 6V, 7.4V
Dual Motor	No
