Hobbywing

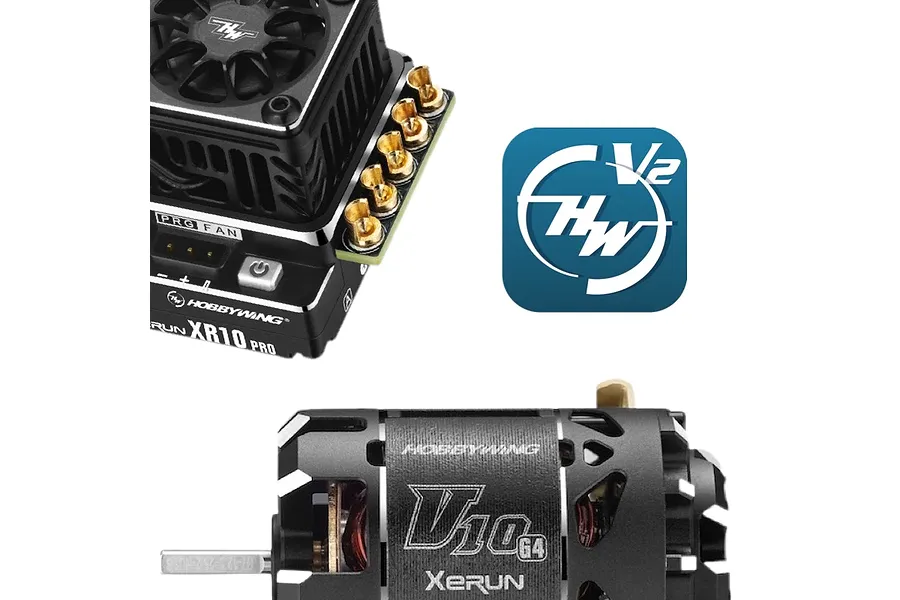

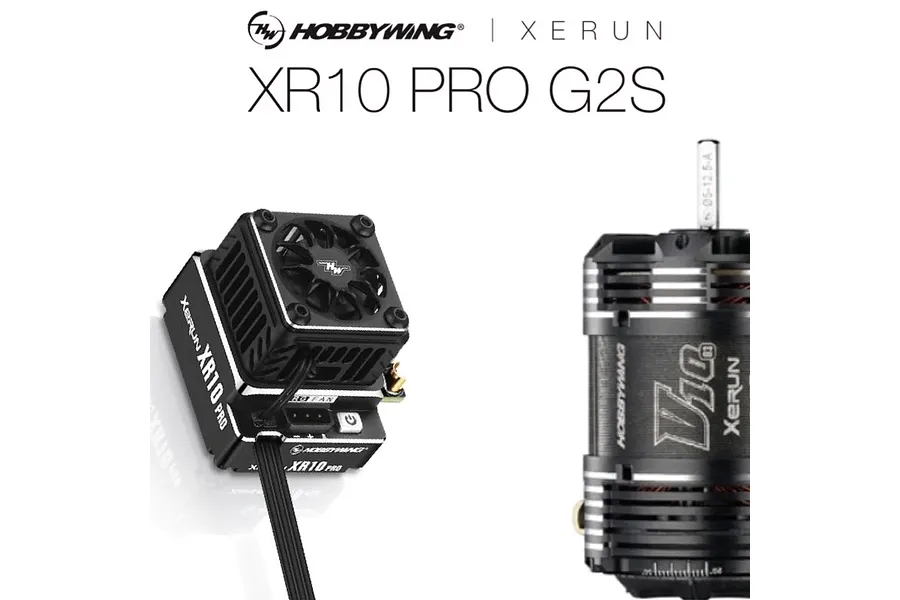

Hobbywing XR10 Pro G2S Stealth 160A ESC & V10 G4 1780kV 21.5T Brushless Motor Combo

  • Brushless

Part no. 38020336

DiscontinuedWrite a review
1 / 2
1 / 2

Overview

Note

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Specifications

Motor

TypeBrushless
KVRPM (Revolutions Per Minute) per Volt1780KV
LengthLength of the motor can in mm51.4mm
DiameterDiameter of the motor can35.8mm
Shaft Diameter3.175mm (1/8")
TurnsTurns affect speed and torque: low = fast, high = strong21.5

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage7.4V
Waterproof DesignNo
Continuous Amps160A
Motor ConnectorsN/A
Battery ConnectorN/A
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage5V, 6V, 7.4V
Dual MotorNo
