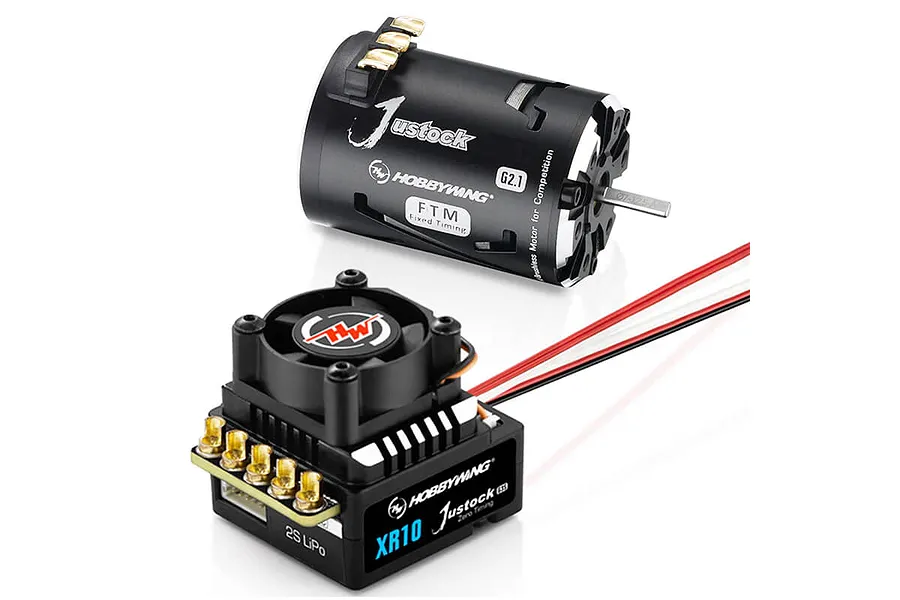

Justock XR10 G2.1 21.5T Sensored Brushless Motor & G3S 60A ESC Combo
Frequently Bought Together
Related Products
Description
Designed for precision and performance, the Justock XR10 G2.1 21.5T Sensored Brushless Motor & G3S 60A ESC Combo is the ideal choice for competitive 1/10 and 1/12 scale racing. This combo delivers smooth, predictable power with excellent efficiency, providing a competitive edge on the track.
Features
- Smooth, reliable power delivery for racing applications
- Integrated BEC for powering servos and receivers
- Independent programming port for easy setup
- Compatible with both sensored and sensorless brushless motors
- High-torque G2.1 motor designed for stock racing classes
- Compact and lightweight ESC and motor design
- Suitable for both on-road and off-road racing
- Genuine Hobbywing product
Included Items
- 1x Justock XR10 G3S 60A Brushless ESC
- 1x Justock XR10 G2.1 21.5T Brushless Sensored Motor
Specifications
-
Length
- 40.9mm (1.61 in)
-
Width
- 33.9mm (1.33 in)
-
Height
- 32.1mm (1.26 in)
-
Weight
- 75.4g (2.66oz) (with wires)
-
Continuous/Peak Current
- 60A/380A
-
Waterproof
- No
-
Motor Limit
- 10.5T or greater (3650 size)
-
BEC
- 6V/7.4V @ 4A (Switch Mode)
-
Voltage Limit
- 7.4V (2S LiPo)
-
Programmable
- Yes (Independent Programming Port)
-
Scale
- 1/10, 1/12
-
Sensored
- Yes
-
Weight
- 175g (6.17oz)
-
Diameter
- 35.9mm (1.413 in)
-
Length
- 52.5mm (2.067 in)
-
Shaft
- 3.17mm (0.125 in)
-
Max Voltage
- 11.1V (3S LiPo)
-
Case Material
- Aluminium
-
Waterproof
- No
-
Motor Type
- Brushless Sensored
ESC Specifications
Motor Specifications
Motor
-
Type
- Sensored
-
KVRPM (Revolutions Per Minute) per Volt
- 2100KV
-
LengthLength of the motor can in mm
- 52.5mm
-
DiameterDiameter of the motor can
- 35.9mm
-
Shaft Diameter
- 3.175 (1/8")mm
-
TurnsTurns affect speed and torque: low = fast, high = strong
- 21.5
ESC (Electronic Speed Controller)
-
For Motor Type
- Brushless
-
Max Voltage
- 7.4V
-
Waterproof Design
- No
-
Burst Amps
- 380A
-
Continuous Amps
- 60A
-
Motor Connectors
- Bare Wires
-
Battery Connector
- Bare Wires
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Fan
-
BEC Voltage
- 6V, 7.4V
-
Dual Motor
- No
