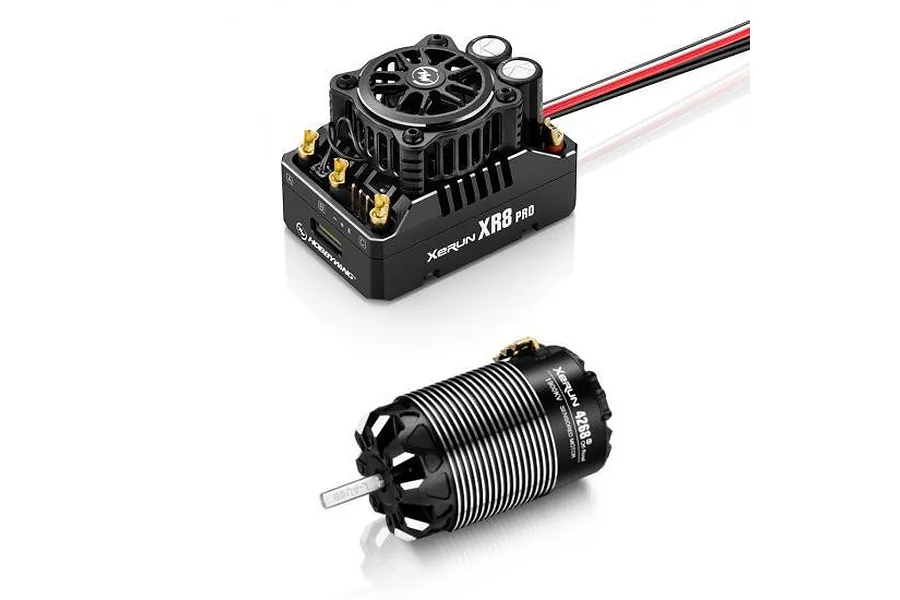

Hobbywing XR8 Pro G3 200A ESC & 4268SD 2200kV G3 Sensored Motor Combo

Brand: Hobbywing | SKU: 38020433

1 in stock

write a review

$461.63

Hobbywing XeRun XR8 Pro G3 ESC and Motor Combo: The Ultimate Combo for Competitive 1/8 Scale Racing!

High-performance 1/8th scale competition combo
Powerful 200A ESC with advanced features
Efficient and durable 4268SD G3 sensored motor
Designed for smooth control and maximum power output
Reliable with built-in protection features

Bare Wires

XT90 + $5.50

EC5 + $5.50

Other Connector + $5.50

Inline Standard - One Battery

Series - Two Batteries + $5.50

No, I Have A Soldering Iron

Yes, Solder + $5.50

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Delivery Options

Description

The Hobbywing XeRun XR8 Pro G3 Brushless ESC and motor combo is a must-have for serious 1/8 scale racers. This competition-level combo is loaded with cutting-edge technologies, delivering a higher level of performance and reliability. Experience smooth control and supreme power, giving you the edge you need to dominate the track. The ESC features advanced thermal protection and reverse polarity protection, ensuring that your valuable electronics are safeguarded. Whether you're a seasoned racer or aspiring to be one, the Hobbywing XeRun XR8 Pro G3 combo provides the performance and reliability you need to reach the top of the podium.

Features

Compact and lightweight design with a reduced footprint compared to its predecessor
High power output with a continuous current of 200A and a burst current of 1080A
Dual brake modes: innovative closed-loop torque brake control (disc brake mode) and traditional brake mode
Advanced Boost & Turbo Timing Technology for increased performance when paired with Hobbywing 4268/4274 G3 motors
Excellent hardware design with smart freewheeling technology for higher drive efficiency and lower operating temperature
Intelligent fan start/stop function for noise reduction and power saving
Frameless fan for efficient and durable cooling
Built-in reverse polarity protection circuit for enhanced safety
Real-time data recording function for monitoring performance
Capacitor thermal protection to prevent damage from overload
Superior dustproof protection with an IP5X rating
Custom ultra-soft 11AWG silicone wire for flexibility and low resistance
Turbo Timing Technology
Full Sensored mode (when paired with XR8 ESC)
Adjustable Timing (Bi-Directional)
Advanced Hall Sensor System
4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
Guarantees users effective heat dissipation and dust prevention
Double insulated windings (240°C R-rated)
Genuine Hobbywing product

Specifications

ESC

Length: 54.8mm (2.16")
Width: 36.8mm (1.45")
Height: 38.8mm (1.53")
Weight: 102.8g (3.63oz)
Continuous/Peak Current: 200A/1080A
Waterproof: No
Motor Limit: 4268/3660 size motor
BEC: 6V/7.4V adjustable, continuous current 6A (switch-mode)
Voltage Limit: 2-4S LiPo
Programmable: Yes
Scale: 1/8th
Sensored: Yes

Motor

KV: 2200KV
LiPo Cells: 2-6S
Diameter: 42mm (1.65")
Length: 68mm (2.68")
Shaft Diameter: 5mm (0.20")
Weight: 285g (10.05oz)

Included Items

1x Hobbywing XR8 Pro G3 200A Sensored Brushless ESC
1x Hobbywing 4268SD 2200kV G3 Sensored Motor

Specifications

ESC (Electronic Speed Controller)

Continuous Amps: 200A
Battery Connector: Bare Wires
Motor Connectors: Bare Wires
BEC Voltage: 6V, 7.4V
Waterproof Design: No
Cooling Method: Fan
Programmable: Yes
LVC Low Voltage Cut-Off. Required for Lithium batteries.: Yes
Max Voltage: 14.8V
For Motor Type: Brushless
Dual Motor: No
Burst Amps: 1080A

Motor

Diameter Diameter of the motor can: 42mm
KV RPM (Revolutions Per Minute) per Volt: 2200KV
Length Length of the motor can: 68mm
Type: Sensored
Shaft Diameter (mm): 5
