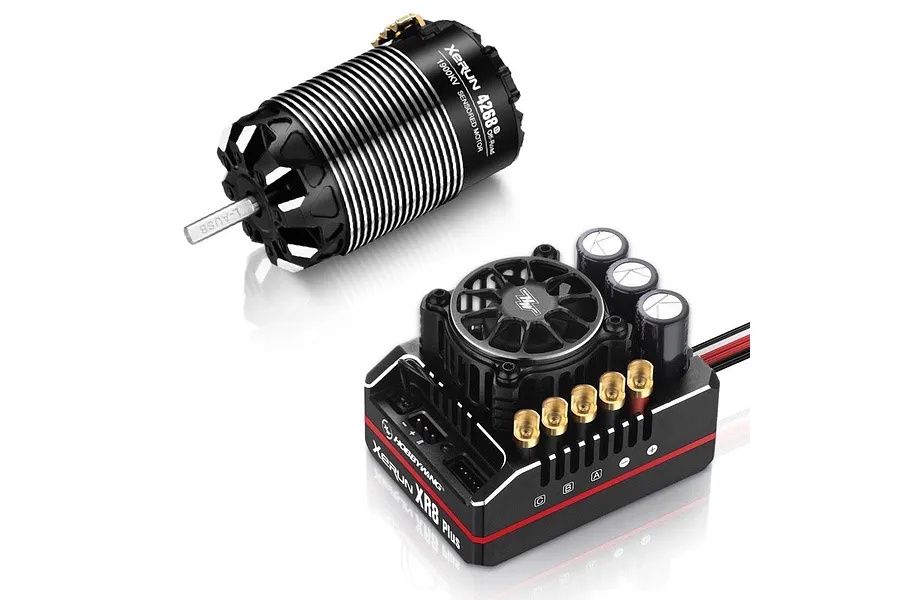

Hobbywing XR8 Plus G2S 4268 & 2200Kv Offroad Brushless Motor & ESC Combo

  • Brushless

Part no. 38020501

1 in stockWrite a review

$514.97

or 4 fortnightly payments of $128.74 with afterpay

Hobbywing XR8 Plus G2S ESC & 4268 2200Kv Offroad G3 Motor combo — Pure Sensored, IP5X dust proof, FCD cooling, 15A BEC.

  • Pure Sensored mode at all times via integrated circuit detection
  • IP5X dust proof on both motor and ESC
  • FCD mega-cooling system keeps the ESC running cool
  • 15A BEC adjustable 6–8.4V for standard and high-voltage servos
  • Wireless programming and data reading via OTA module
Select Male Connector
Select Wiring Configuration
Select Motor & ESC Wires Soldered

Want more than 1? and we'll email you when they're here.

Pay later with afterpay zip PayPal

  • 1 in stock · Ships Friday · order by Friday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

The G3 Motor utilises an integrated circuit to detect the Hobbywing XeRun XR8 series of ESCs and run in "Pure Sensored" mode at all times, providing better performance and smoother throttle response.

Note

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • Xerun 1/8th Competition G3 Motor
  • Adjustable mechanical turbo timing
  • Optimised motor design reduces temperature
  • Error-free Hall sensor technology with an independent encoder to output accurate rotor position signal
  • Smooth low RPM (no current) without cogging or torque pulses
  • IP5X dust proof design
  • Light-weight compared to the competition
  • Built without gaps or screws on can body
  • XR8 Plus G2S ESC
  • Full-sensored mode support with matching Hobbywing motor
  • Mega-cooling effect with the patented FCD cooling system
  • Durable frame-less fan design
  • 1/8th power system, boost & turbo timing
  • Reverse voltage protection
  • RPM speed limit function with 6 different speed/RPM selections
  • Compatible with the OTA module for wireless programming/upgrading & data reading
  • 15A BEC with adjustable voltages from 6–8.4V — supports standard & high-voltage servos
  • Capacitor thermal protection to prevent damage from overloads
  • IP5X dust proof design
  • Custom solder tabs for easy soldering

In the box

  • 1x XR8 Plus G2S ESC
  • 1x Xerun Competition G3 Motor
  • 2x Black 200mm 11AWG Input Wires
  • 3x Black 200mm 11AWG Output Wires

Specifications

Motor

TypeBrushless
KVRPM (Revolutions Per Minute) per Volt2200KV
LengthLength of the motor can in mm67.8mm
DiameterDiameter of the motor can42mm
Shaft Diameter5mm

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage22.2V
Waterproof DesignNo
Continuous Amps200A
Motor ConnectorsN/A
Battery ConnectorN/A
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC VoltageProgrammableV
Dual MotorNo
