Name: Hobbywing XeRun XR8 Plus 4274SD 2250Kv G3 Sensored Brushless Motor & 150A ESC Combo
Brand: Hobbywing
SKU: HW-38020431
Price: 480.74 AUD
Availability: Discontinued

Overview

The Xerun 1/8th Competition G3 Motor & ESC Combo pairs the Xerun 4274 SD G3 2250Kv sensored brushless motor with the XR8 Plus 150A ESC. The optimised motor structure improves efficiency by more than 6% and reduces running temperature under load.

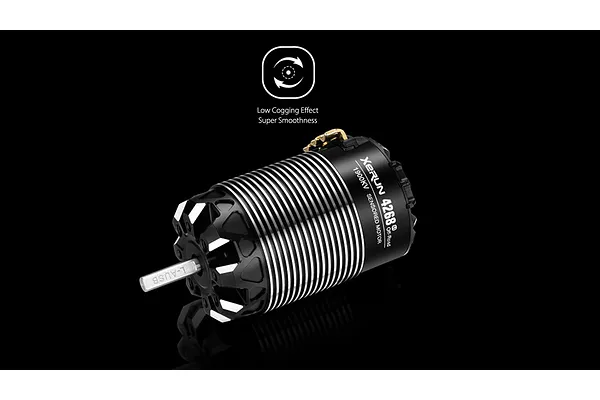

The motor sensor system adopts patented "error-free" Hall sensor technology with an independent high-speed, high-precision encoder that outputs a pure and accurate rotor position signal, isolating external interference. The motor also minimises cogging and small torque pulses at low RPM and carries an IP5X dustproof rating.

Note

Brushless electric motors and ESCs have large amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large or heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within safe operating limits.

Features

Xerun 4274 SD G3 Motor
Turbo Timing Technology
Full Sensored mode (when paired with XR8 ESC series)
Adjustable Timing (Bi-Directional) 20–40 degrees
Advanced Hall Sensor System
4-pole-8-magnet "Staggered Pole" rotor — HOBBYWING Patented design
Effective heat dissipation and dust prevention
Double insulated windings (240°C R-rated), NMB bearings from Japan, high-intensity adhesive (340°C)
Best application: 1/8th Monster Truck, SCT, Buggy, Truck, and Touring Car
XR8 Plus 150A ESC
Super built-in BEC with peak output current of up to 15A, switchable output voltage of 6V/7.2V
Advanced electronic switch with lifespan of over 50,000 switching cycles
High-efficiency heat-dissipating system
Special dynamic timing control program available in full-sensored mode
Innovative coasting function (patent pending)
ESC customization via LCD program box (sold separately) or OTA programmer (sold separately)

In the box

1x Xerun 4274 SD G3 2250Kv Sensored Brushless Motor
1x XR8 Plus 150A Brushless ESC

Highlights

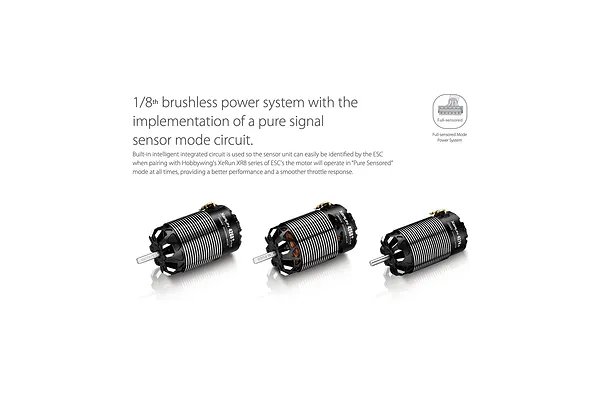

XeRun XR8 Plus and 4274SD motor combo overview

The Xerun 4274 SD G3 motor paired with the XR8 Plus 150A ESC provides competition-grade performance for 1/8th scale vehicles.

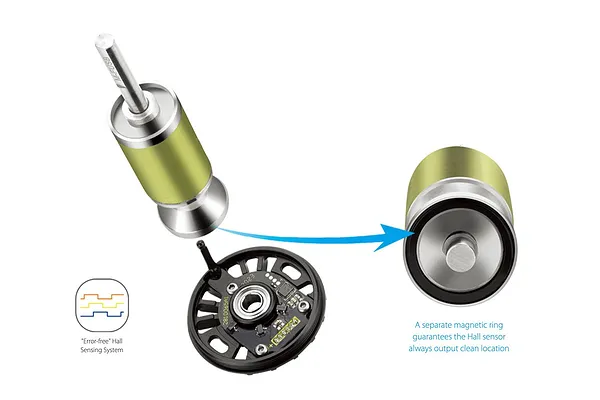

Error-Free Hall Sensor

The motor sensor system adopts patented 'error-free' Hall sensor technology with an independent high-speed and high-precision encoder.

XeRun 4274SD motor feature detail

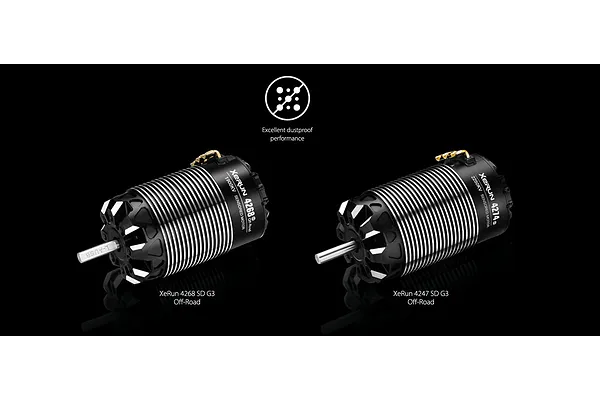

The motor is rated for IP5X with a dustproof design to minimise debris entering the motor.

High-Output Built-In BEC

The XR8 Pro ESC features a super built-in BEC with peak output current of up to 15A and switchable output voltage of 6V/7.2V.

XeRun combo performance or compatibility illustration

Best application: 1/8th Monster Truck, SCT, Buggy, Truck, and Touring Car.

XeRun combo wiring or installation diagram

ESC customization is available via a LCD program box (purchased separately) or OTA programmer (purchased separately).

Specifications

	Xerun 4274 SD G3 Motor
Kv	2250Kv
Poles	4
LiPo	2–6S (7.4V–22.2V)
No Load Current	5.4A
Size (O.Dia / Length)	42 / 74mm
Weight	354g (12.4 oz)
Vehicles	1/8
	XR8 Plus 150A ESC
Cont./Peak Current	150A / 950A
Motor Type	Sensored / Sensorless Brushless Motor
Main Applications	1/8th Scale On-road, Buggy, Truggy for High-level Races
LiPo/NiMH Cells	6–12 Cells NiMH / 2–4S LiPo
BEC Output	6V/7.2V Switchable, Continuous Current 6A (Switch-mode BEC)
Cooling Fan	Powered by stable BEC output voltage of 6V/7.2V
Size/Weight	58.7(L) x 48(W) x 36.9(H)mm / 127g (without wires)
Programming Port	FAN/PRG Port
ESC Programming	LCD Program box, WiFi module enabled

Motor

Type	Brushless
KVRPM (Revolutions Per Minute) per Volt	2250KV
LengthLength of the motor can in mm	74mm
DiameterDiameter of the motor can	42mm
Shaft Diameter	5mm

ESC (Electronic Speed Controller)

For Motor Type	Brushless
Max Voltage	22.2V
Waterproof Design	No
Continuous Amps	150A
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes
Cooling Method	Fan
BEC Voltage	ProgrammableV
Dual Motor	No
