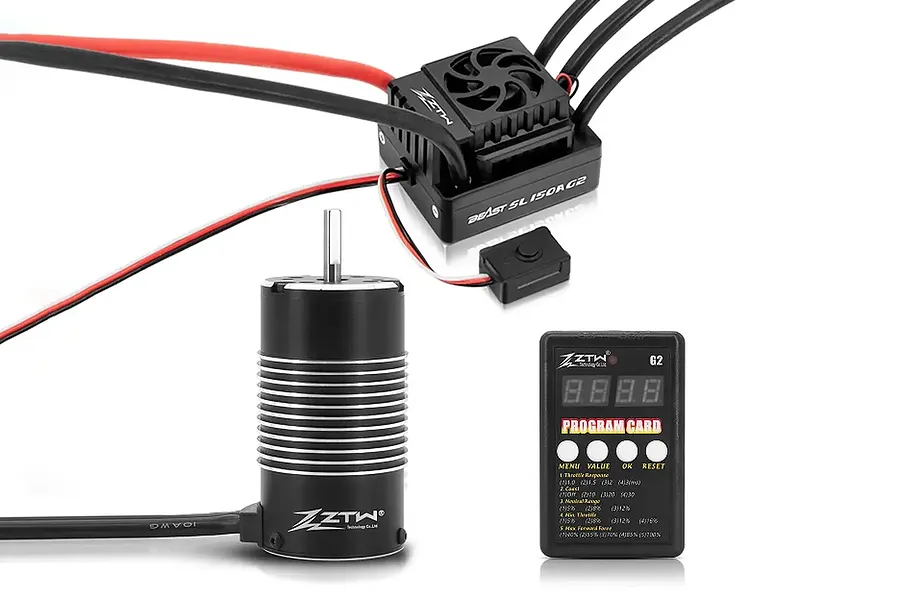

Name: ZTW Beast G2 SL 150A ESC & 4074 1950Kv Brushless Motor Combo
Brand: ZTW
SKU: ZTW-1115081
Price: 219.99 AUD
Availability: InStock

Overview

Designed to be a budget-friendly ESC and motor combo, the ZTW range of combos certainly deliver on this, and does so while maintaining a high level of quality and features seen in higher end models. Featuring a 32-bit microprocessor for fast and accurate motor output, waterproof design, a range of in-built protections, multiple programmable settings, and much, much more, the ZTW is sure to impress, and it is perfect for people new to the hobby and seasoned veterans on the 100th build. With a range of motor and ESC combinations on offer, with a capable range of 7.4V–22.2V, there is sure to be something from the ZTW range that will be perfect for your next build.

Features

Program setting changes can be done through the ZTW LED program card
Low voltage, thermal cut off, locked rotor protection and throttle signal loss protection built in
4 pole brushless motor
32-bit microprocessor provides an accurate motor output
Suitable for a wide range of 1/10 cars, buggies, monster trucks and more
10 Gauge input and output wires for minimal resistance
Can run up to an 22.2V (6S) LiPo Battery
NiMH and LiPo modes can be swapped between

In the box

1x ZTW Beast G2 SL 150A ESC
1x ZTW Beast 4074 1950Kv Brushless Motor

Specifications

Length	57 mm (2.24 in)
Width	49 mm (1.93 in)
Height	37 mm (1.46 in)
Weight	163 g (5.75 oz)
Continuous/Peak Current	150A/1080A
Waterproof	Yes
Motor Limit	N/A
BEC	Adjustable 6V, 7.4V @ 6A
Combo Voltage Limit	22.2V
Programmable	Yes
Scale	1/8
Sensored	No

Motor

Type	Brushless
KVRPM (Revolutions Per Minute) per Volt	1950KV
LengthLength of the motor can in mm	74mm
DiameterDiameter of the motor can	40mm
Shaft Diameter	5mm

ESC (Electronic Speed Controller)

For Motor Type	Brushless
Max Voltage	22.2V
Waterproof Design	Yes
Continuous Amps	150A
Motor Connectors	4.0mm Bullet
Battery Connector	XT90
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes
Cooling Method	Fan
BEC Voltage	6V, 7.4V
Dual Motor	No
