ZTW

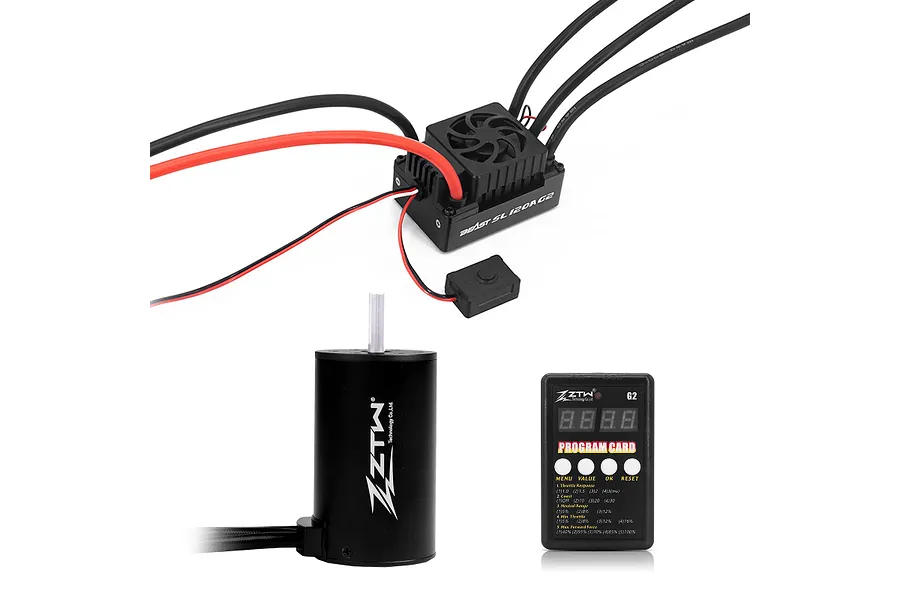

ZTW Beast G2 SL SCT 120A ESC & 3660 4200Kv Brushless Motor Combo

  • 1/10
  • Brushless

Part no. 1112061

Sold outWrite a review

$159.98

or 4 fortnightly payments of $40.00 with afterpay

Check fit: add your vehicle to My Garage
Select Male Connector

Ordered 8 Jul · we're waiting on our supplier

In stock now: similar

Fits 150 vehiclesSee which

Overview

Designed to be a budget-friendly ESC and motor combo, the ZTW range of combos certainly deliver on this, and does so while maintaining a high level of quality and features seen in higher end models.

Featuring a 32-bit microprocessor for fast and accurate motor output, Waterproof design, a range of in-built protections, multiple programmable settings, and much, much more, the ZTW is sure to impress, and it is perfect for people new to the hobby and seasoned veterans on the 100th build.

With a range of motor and ESC combinations on offer, with a capable range of 7.4V-22.2V, there is sure to be something from the ZTW range that will be perfect for your next build.

Features

  • Program setting changes can be done through the ZTW LED program card
  • Low voltage, Thermal cut off, locked rotor protection and throttle signal loss protection built in
  • 4 pole brushless motor
  • 32-Bit microprocessor provides an accurate motor output
  • Suitable for a wide range of 1/10 cars, buggies, monster trucks and more
  • 12 Gauge input and output wires for minimal resistance
  • Can run up to an 11.1V (3S) LiPo Battery
  • NiMH and LiPo modes can be swapped between

In the box

  • 1x ZTW Beast G2 SL 120A ESC
  • 1x ZTW Beast 3660 4200Kv Brushless Motor

Specifications

Length56 mm (2.20 in)
Width38 mm (1.50 in)
Height33 mm (1.30 in)
Weight126 g (4.44 oz)
Continuous/Peak Current120A/760A
WaterproofYes
Motor LimitN/A
BEC6V @ 3A
Combo Voltage Limit14.8V
ProgrammableYes
Scale1/10
SensoredNo

Motor

TypeBrushless
KVRPM (Revolutions Per Minute) per Volt4200KV
LengthLength of the motor can in mm60mm
DiameterDiameter of the motor can36mm
Shaft Diameter5mm

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage14.8V
Waterproof DesignYes
Continuous Amps120A
Motor Connectors4.0mm Bullet
Battery ConnectorXT90
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V
Dual MotorNo
