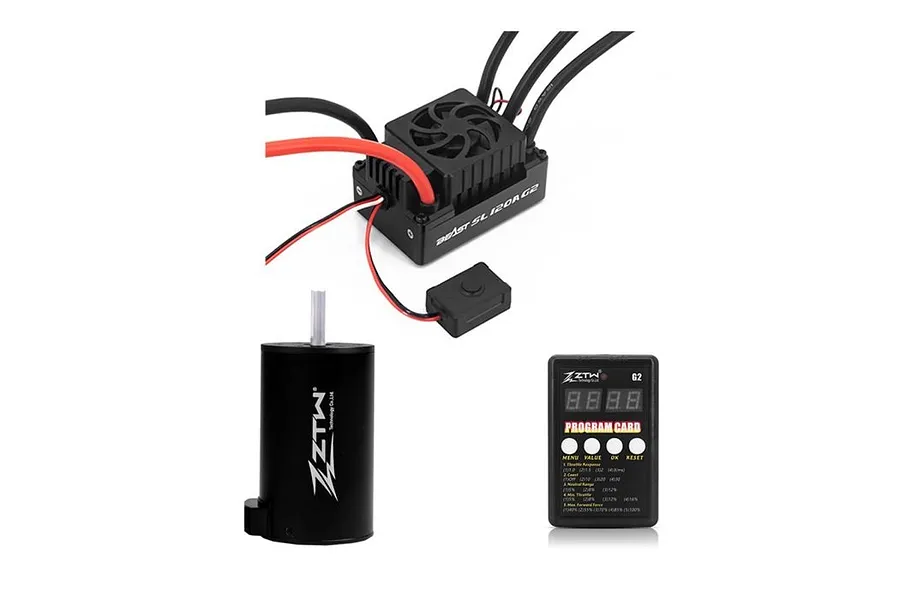

ZTW Beast G2 SL 120A SCT ESC & 3660B 4000Kv Brushless Motor Combo

Name: ZTW Beast G2 SL 120A SCT ESC & 3660B 4000Kv Brushless Motor Combo
Brand: ZTW Beast ESCs & Motor Combos
SKU: ZTW-1112081
Price: 159.98 AUD
Availability: InStock

ZTW Beast G2 SL 120A SCT ESC &amp; 3660B 4000Kv Brushless Motor Combo image 1

ZTW Beast G2 SL 120A SCT ESC & 3660B 4000Kv Brushless Motor Combo

Brand: ZTW | SKU: 1112081

3+ in stock

write a review

$159.98

or 4 fortnightly payments of $40.00 with

Select Male Connector

XT90

EC5 + $5.50

Traxxas Non iD + $5.50

Other - Leave Comment + $5.50

Other - Leave Comment

Add to Wishlist

Pay later with

We'll send it today

When ordered within the next hms

What does Next Dispatch mean?

Pay before 1:00pm Melbourne time on a dispatch day and your order ships the same day.

This is dispatch time, not delivery time — couriers still take their usual transit days.

Learn more about delivery

Enter your suburb or postcode for delivery options

Enter your country for international delivery options

Description

The ZTW Beast G2 SL 120A SCT ESC & 3660B 4000Kv Brushless Motor Combo is a powerful, reliable, and affordable option for 1/10th scale short course, monster, buggy car and more. With a waterproof ESC and a high-torque motor, this combo is ready to tackle any track or trail.

Features

Powerful 120A continuous current output
Waterproof ESC design for all-weather bashing
32-bit microprocessor for precise throttle response
Programmable with LED program card (included)
High-torque 4000Kv brushless motor
Built-in 6V/3A switch-mode BEC
Multiple protection features for safety
Genuine ZTW product

Specifications

ESC Specifications

Length: 56mm (2.20 in)
Width: 38mm (1.50 in)
Height: 33mm (1.30 in)
Weight: 126g (4.44 oz)
Continuous/Peak Current: 120A / 760A
Waterproof: Yes
Motor Limit: N/A
BEC: 6V @ 3A
Voltage Limit: 4S LiPo / 5-12 NC
Programmable: Yes (LED program card)
Scale: 1/10
Sensored: No

Motor Specifications

Weight: N/A
Diameter: 36mm (1.42 in)
Length: 60mm (2.36 in)
Shaft: 5mm (0.20 in)
Max Voltage: 14.8V (4S LiPo)
Case Material: Aluminium
Waterproof: Yes
Motor Type: Brushless

Included Items

1x ZTW Beast G2 SL 120A ESC
1x ZTW Beast 3660B 4000Kv Brushless Motor
1x LED Program Card

Note

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Specifications

Motor

Type: Brushless
KV RPM (Revolutions Per Minute) per Volt: 4000KV
Length Length of the motor can in mm: 60mm
Diameter Diameter of the motor can: 36mm
Shaft Diameter: 5mm

ESC (Electronic Speed Controller)

For Motor Type: Brushless
Max Voltage: 14.8V
Waterproof Design: Yes
Burst Amps: 760A
Continuous Amps: 120A
Motor Connectors: 4.0mm Bullet
Battery Connector: XT90
LVC Low Voltage Cut-Off. Required for Lithium batteries.: Yes
Programmable: Yes
Cooling Method: Fan
BEC Voltage: 6V
Dual Motor: No

Reviews

Be the first to write a review for this product.

Questions & Answers

No questions yet. Be the first to ask about this product.
