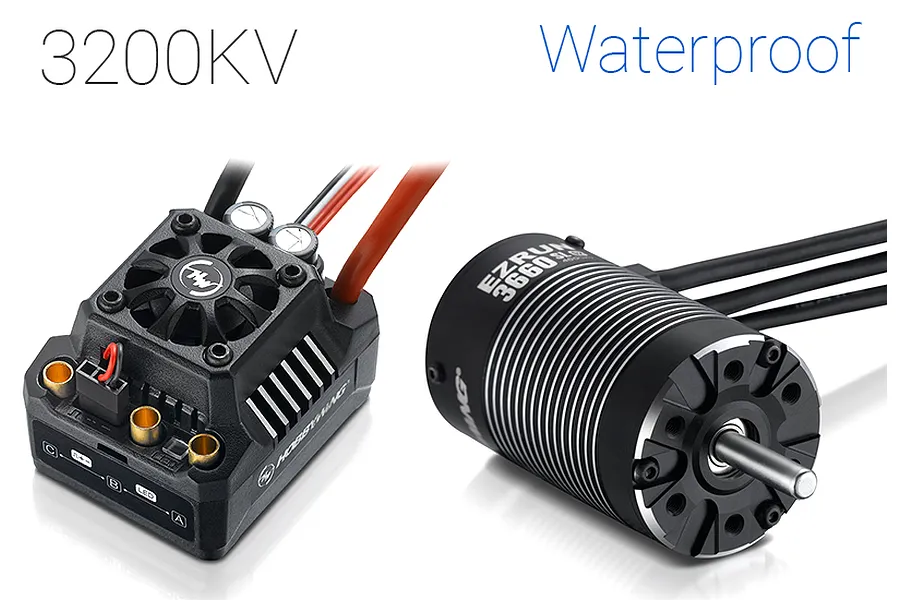

Hobbywing EzRun Max10 SCT 3660SL 3200Kv Brushless Motor and 120A ESC Combo
Brand: Hobbywing
|
SKU: 38010200
Related Products
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
Overview
Hobbywing have been busy making one of their most popular combo's even better... IT'S NOW WATERPROOF.
They have also worked hard to make this ESC easy to use and program so that anyone can do it.
Universal – This combo features a high torque 3200Kv 3660 brushless motor which fits a wide range of 1/10 4wd off-road RC vehicles like the Traxxas Slash, Stampede and HPI Bullet Trucks. Also included is a compact 120Amp waterproof brushless ESC which makes it the perfect upgrade brushless kit for 1/10 4wd RC model. Even if you're looking for a powerful brushless combo for a scratch build or custom project, this combo is a fantastic option to get the most out of your 1/10 RC model.
Hobbywing Ezrun Max10 120A Waterproof ESC Specifications
- Max Input Voltage: 2-4S LiPo/6-12 Cells NiMH
- Amp Rating: 120A
- Brake: Proportional with Adjustable Braking Force
- Reversible: Yes - with lockout
- Low Voltage Cut-Off: Yes, programmable
- Size: 49.0x39.5x34.7mm
- Weight w/ Wires: 105g
- Output Motor Connectors: 4.0mm bullet
Hobbywing Ezrun Max10 3660SL Motor Specifications
- Max Input Voltage: 3S 11.1V Lipo
- Weight: 262(9.24oz)
- Motor Diameter: 36mm
- Motor Length: 60mm
- Shaft Diameter: 5mm
- Connector: 4.0mm bullet
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| For Motor Type: | Brushless |
| Max Voltage: | 14.8 |
| Continuous Amps: | 120 |
| Motor Connectors: | 4mm Bullet |
| Battery Connector: | N/A |
| LiPo Cut-off: | Yes |
| Programmable: | Yes |
| Waterproof Design: | Yes |
| Cooling Method: | Fan |
| BEC Voltage: | 6 |
| Dual Motor: | No |
| Motor | |
|---|---|
| Motor Type: | Brushless |
| Can Length (mm): | 60 |
| Can Diameter (mm): | 36 |
| KV (RPM/V): | 3300 |
| Shaft Diameter (mm): | 5 |
| Turns: | N/A |
