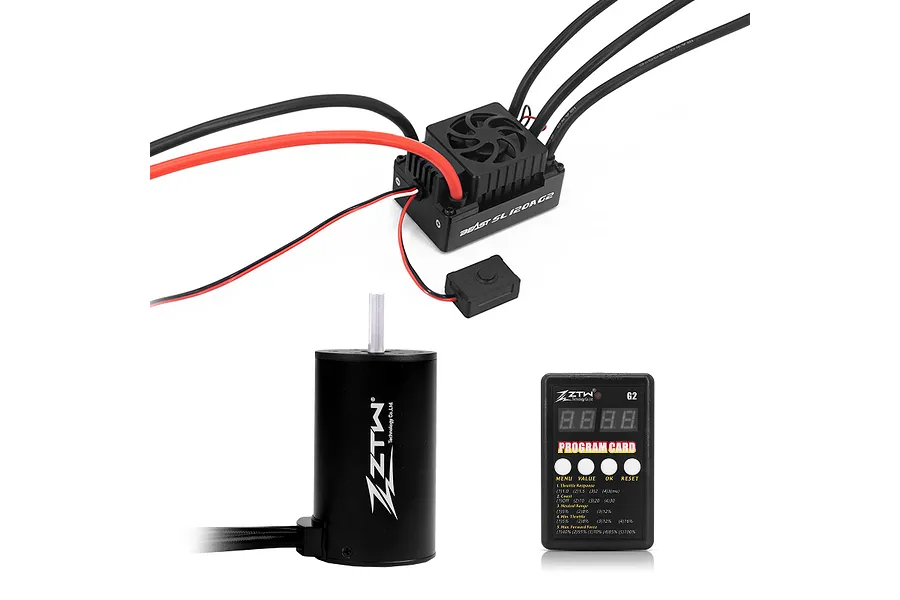

ZTW Beast G2 SL SCT 120A ESC & 3660 3000Kv Brushless Motor Combo
ZTW Beast G2 SL SCT 120A ESC & 3660 3000Kv Brushless Motor Combo
Designed to be a budget-friendly ESC and motor combo, the ZTW range of combos certainly deliver on this, and does so while maintaining a high level of quality and features seen in higher end models. Featuring a 32-bit microprocessor for fast and accurate motor output, Waterproof design, a range of in-built protections, multiple programmable settings, and much, much more, the ZTW is sure to impress, and it is perfect for people new to the hobby and seasoned veterans on the 100th build.
With a range of motor and ESC combinations on offer, with a capable range of 7.4V-22.2V, There is sure to be a something from the ZTW range that will be perfect for your next build.
- Program setting changes can be done through the ZTW LED program card
- Low voltage, Thermal cut off, locked rotor protection and throttle signal loss protection built in
- 4 pole brushless motor
- 32-Bit microprocessor provides an accurate motor output
- Suitable for a wide range of 1/10 cars, buggies, monster trucks and more
- 12 Gauge input and output wires for minimal resistance
- Can run up to an 11.1V (3S) LiPo Battery
- NiMH and LiPo modes can be swapped between
- Length: 56 mm (2.20 in)
- Width: 38 mm (1.50 in)
- Height: 33 mm (1.30 in)
- Weight: 126 g (4.44 oz)
- Continuous/Peak Current: 120A/760A
- Waterproof: Yes
- Motor Limit: N/A
- BEC: 6V @ 3A
- Combo Voltage Limit: 14.8V
- Programmable: Yes
- Scale: 1/10
- Sensored: No
| Description | QTY |
|---|---|
| ZTW Beast G2 SL 120A ESC | 1 |
| ZTW Beast 3660 3000Kv Brushless Motor | 1 |
-
For Motor Type
- Brushless
-
Continuous Amps
- 120A
-
Motor Connectors
- 4.0mm Bullet
-
Battery Connector
- XT90
-
BEC Voltage
- 6V
-
Dual Motor
- No
-
Waterproof Design
- Yes
-
Cooling Method
- Fan
-
Programmable
- Yes
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Max Voltage
- 14.8V
-
KVRPM (Revolutions Per Minute) per Volt
- 3000KV
-
LengthLength of the motor can
- 60mm
-
DiameterDiameter of the motor can
- 36mm
-
Type
- Brushless
-
Shaft Diameter (mm)
- 5
