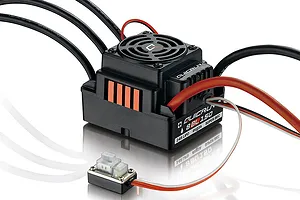

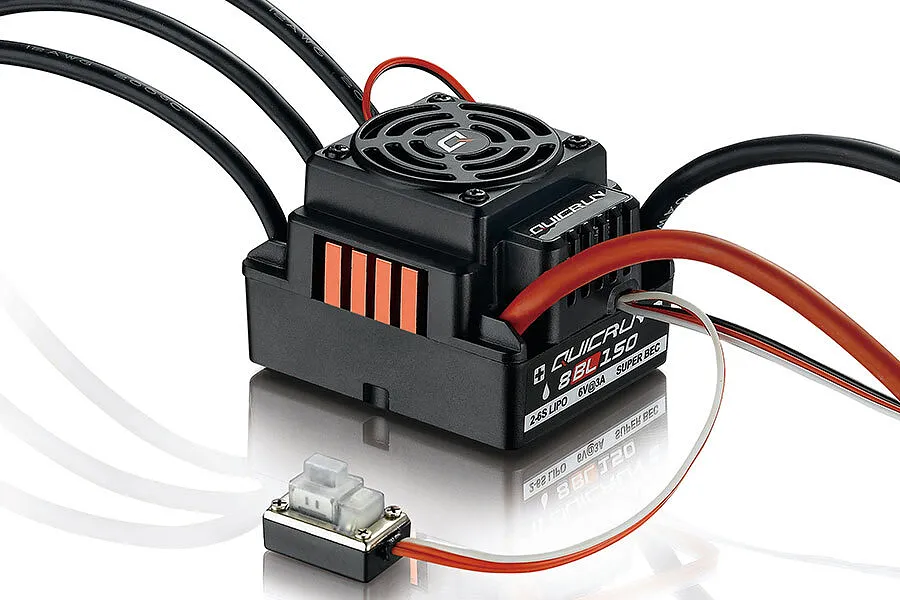

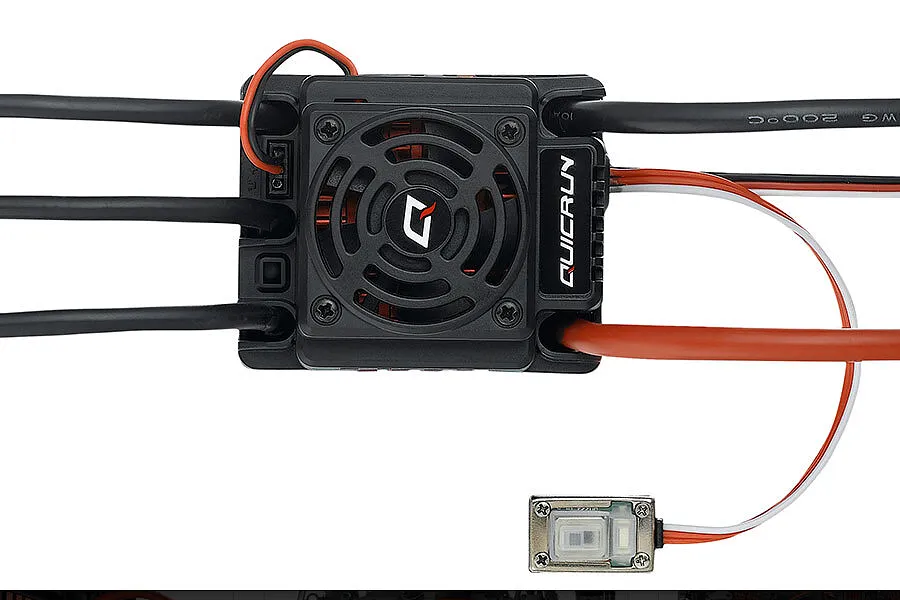

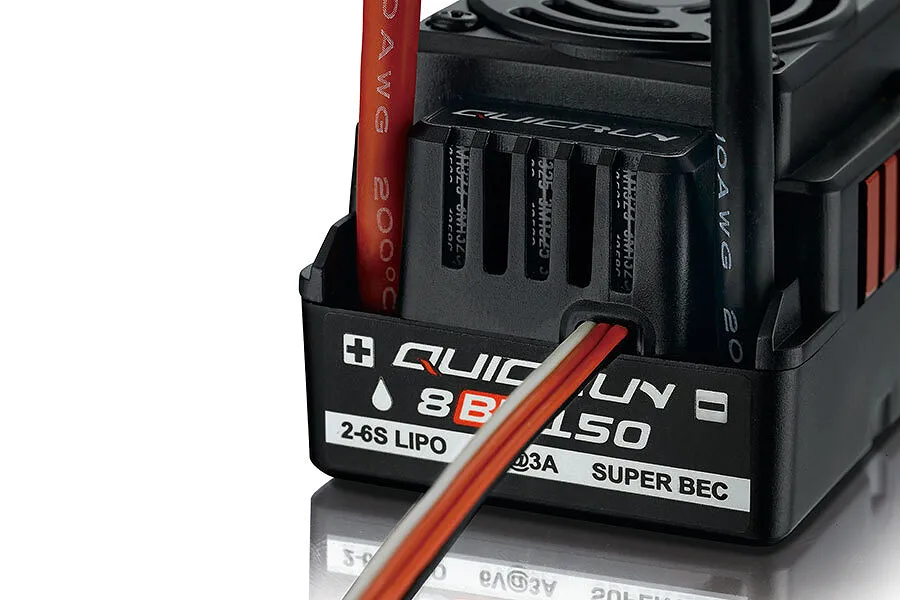

Hobbywing QUICRUN 8BL150 V2 Waterproof 150A Brushless ESC

  • Brushless

Part no. 30109002

Sold outNo reviews yet
1 / 5
1 / 5

$195.09

or 4 fortnightly payments of $48.77 with afterpay or PayPal, or zip

Waterproof 150A brushless sensorless ESC (IP-67) for 1/8th scale vehicles, supporting 3–6S LiPo, with adjustable BEC and single-button programming.

Select Male Connector
Select Wiring Configuration

Ordered 3 Nov · we're waiting on our supplier

In stock now: similar

Ready to send today if you order before 1pm.

$195.09

Overview

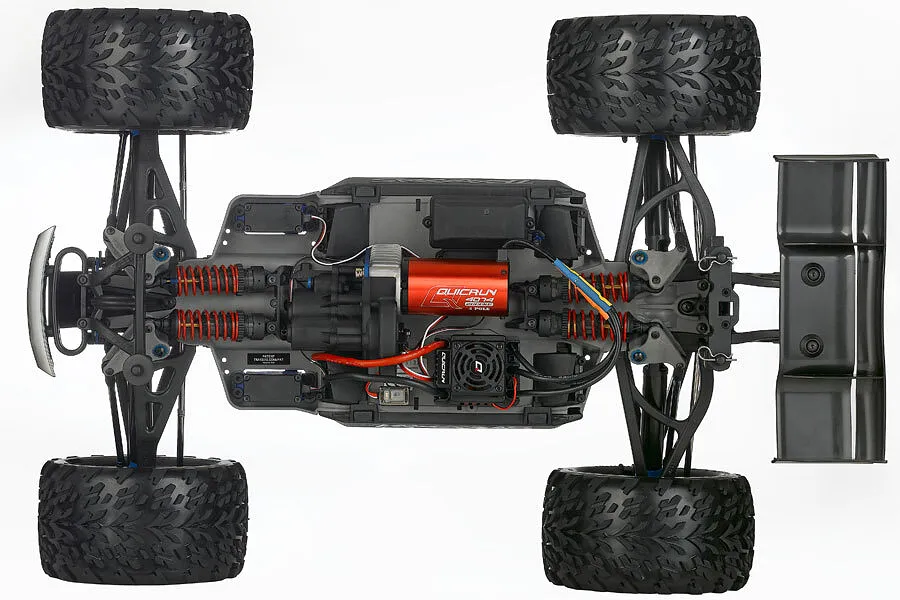

This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation. This ESC is applicable to all-weather sport of 1/8th short course trucks, buggies, trucks, and monster trucks.

The waterproof and dust-proof design allows the QUICRUN WP-8BL150 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

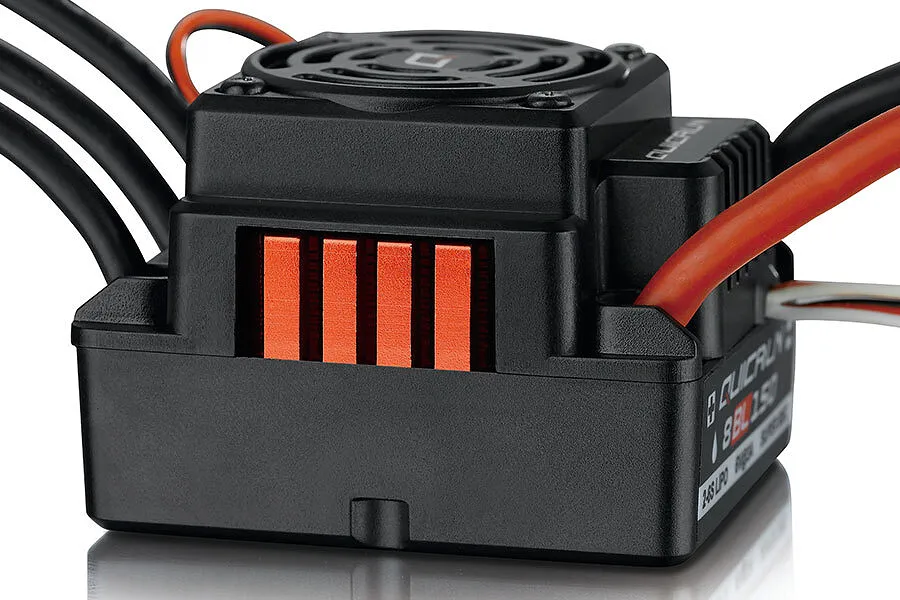

Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRUN WP-8BL150, which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminium heat sink housing, combined with reticulate heatsink and high-performance cooling fan can keep your ESC as cool as possible.

Note

Brushless electric motors and ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • Easy Operation
  • High Reliability & Durability
  • Applicable to All Weather Conditions
  • Efficient Cooling System
  • Single-button Programming & Factory Reset
  • Built-in BEC
  • Wide Applicability

Specifications

Scale1/8th
Brushed/BrushlessBrushless
Sensored/SensorlessSensorless
WaterproofIP-67 Standard
Cont./Peak Current150A/950A
Input3–6S LiPo
BEC Output6V / 7.4V adjustable, continuous current 6A (Switch-mode)
Input WiresRed 10AWG 150mm ×1 / Black 10AWG 150mm ×1
Output WiresBlack 12AWG 150mm ×3
Input ConnectorsNo
Output ConnectorsNo
Fan Size35.0×35.0×10.0mm
Voltage Range5–7.4V
Powered byBEC
SET Button on ESCSupported
LED Program BoxSupported
LCD Program BoxNot Supported
WiFi ModuleNot Supported
Program PortFAN/Program Port
Firmware UpgradeNot Supported
Size60(L)×48(W)×40.4(H)mm
Weight169.5g (including input wires)
MotorsSL BL Motors / SD BL Motors (only in SL mode)
Vehicles1/8th Touring Cars/Buggies/Trucks/Monster Trucks
Motor limit4S LiPo 3000Kv; 6S LiPo 2400Kv (40XX Series of Motors)

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage22.2V
Waterproof DesignYes
Continuous Amps150A
Motor Connectors4.0mm Bullet
Battery ConnectorN/A
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage7.4V, 6V
Dual MotorNo
