Spektrum

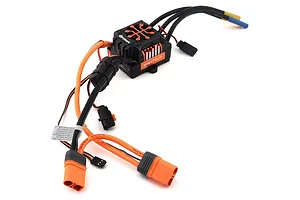

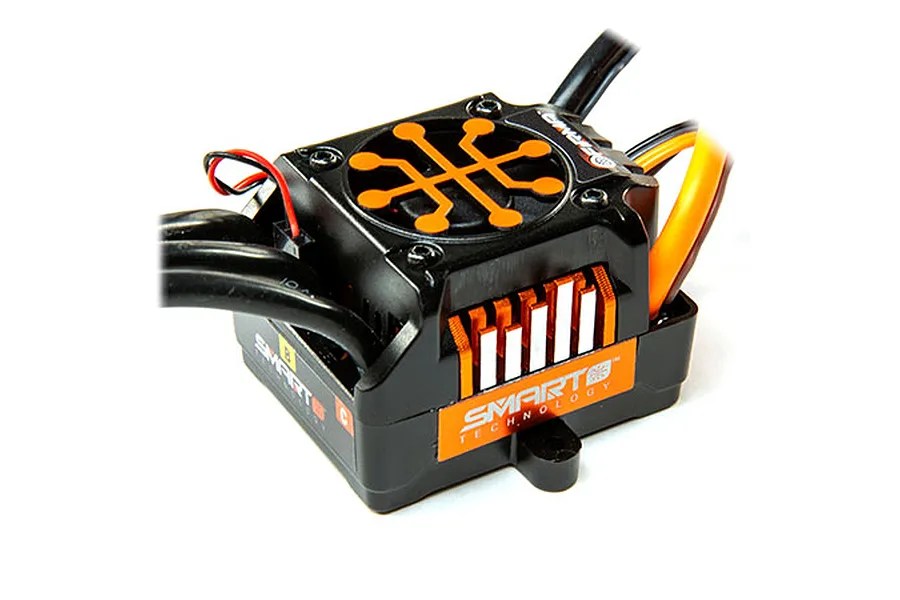

Spektrum Firma 150 Amp 3S-6S Brushless SMART ESC

  • Brushless

Part no. SPMXSE1150

Discontinued1.0
1 review
1 / 6
1 / 6

Videos

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming

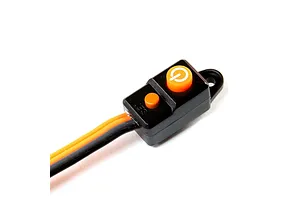

  • Button programming
  • Smart ESC Programming Box
  • SmartLink USB Updating and Programmer application
  • Multi-point protection
  • Automatic LiPo low-voltage cut-off
  • Thermal protection
  • Failsafe protection
  • Over-current protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminium heat sink for high efficiency

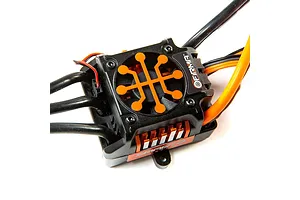

  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year manufacturer warranty

In the box

  • 1x Spektrum™ Firma™ Smart ESC
  • 1x Spektrum Smart sticker sheet

You'll need

  • Compatible Receiver & Battery

Specifications

ForwardYes
ReverseYes
BrakeYes
Time Delay BrakeYes
Continuous Maximum Current150A (950A Max Burst)
Input Voltage11.1 - 22.2V
Input Connector TypesIC5
Output Connector Types4mm Female Bullet
Length58mm (2.3")
WidthCase: 47.5mm (1.9")
Width w/ Tabs59.5mm (2.3")
Height38.5mm (1.5")
Weight238g (8.4 oz)
BEC Voltage6V (5A)

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage22.2V
Waterproof DesignYes
Continuous Amps150A

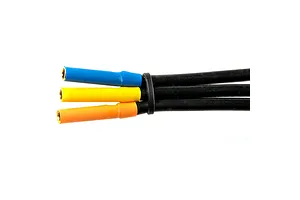

Motor Connectors4.0mm Bullet

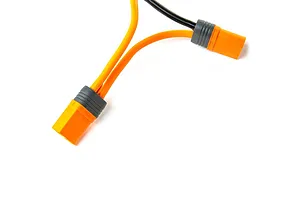

Battery ConnectorIC5
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V

Parts

Top parts for this Spektrum Firma 150 Amp 3S-6S Brushless SMART ESC

Shop all parts

Reviews (1)

1.0

Based on 1 review

  • 5 stars0
  • 4 stars0
  • 3 stars0
  • 2 stars0
  • 1 star1
  • Craig C

    22 Dec 2021

    Bought a Arrma Kraton 4 weeks ago used 20 minutes it stopped with a puff of smoke then waited nearly 8 days for new esc I then get an electrician friend to change over when he was doing so noticed loads of smashed up bits of metal and oil all over the place,emailed 3 days ago with photos still no reply,I spent $1900 and all I got was a bust up car that came from factory broken,I now want a new car or full refund as this car is done
