Kyosho

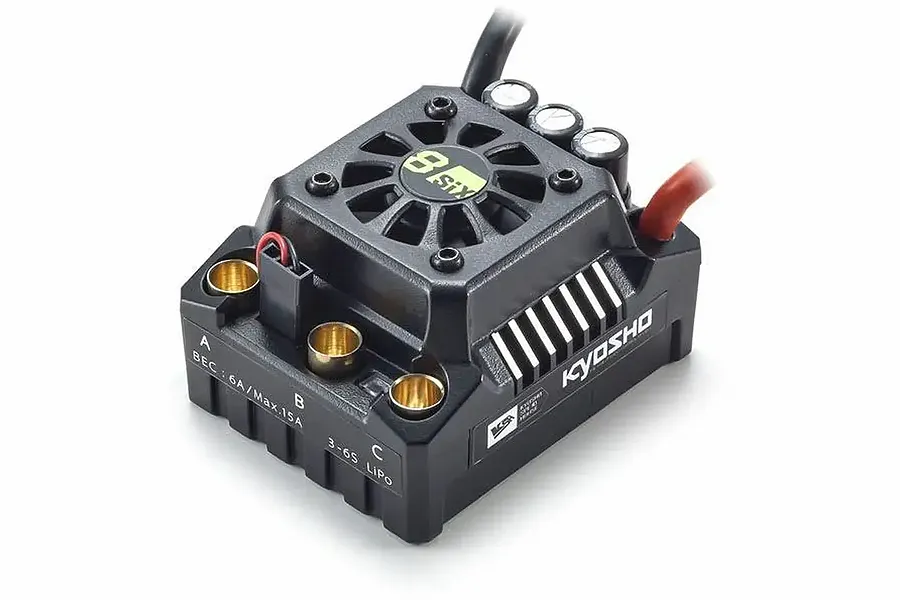

Kyosho Speed House Brainz 8 Six 150A ESC

  • 1/10

Part no. 82248

1 in stockWrite a review

$450.68

or 4 fortnightly payments of $112.67 with afterpay

Select Male Connector
Select Wiring Configuration

Want more than 1? and we'll email you when they're here.

Pay later with afterpay zip PayPal

  • 1 in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Fits 1 vehicleSee which

Overview

The Kyosho Speed House Brainz 8 Six 150A ESC delivers impressive power and precision, making it suitable for both on-road and off-road racing and bashing with 1/8, 1/10 or 1/7 scale RC vehicles.

Note

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • High-power 150A continuous current output
  • Waterproof design for all-weather performance
  • Reliable and durable construction
  • Programmable for custom tuning
  • Suitable for a variety of scales (1/10, 1/8, 1/7)
  • Genuine Kyosho product

In the box

  • 1x Kyosho Speed House Brainz 8 Six 150A ESC

Specifications

Length59.8mm (2.35 in)
Width36.8mm (1.45 in)
Height48mm (1.89 in)
Weight173.5g (6.12 oz)
Continuous/Peak Current150A / 950A
WaterproofYes
Motor LimitN/A
BEC6.0V
Voltage Limit3-6S LiPo / 9-18 Cells NiMH
ProgrammableYes
Scale1/10, 1/8, 1/7
SensoredNo

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage22.2V
Waterproof DesignNo
Burst Amps950A
Continuous Amps150A
Motor Connectors4.0mm Bullet
Battery ConnectorDeans
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V
Dual MotorNo

Compatibility

Fits 1 Kyosho model
