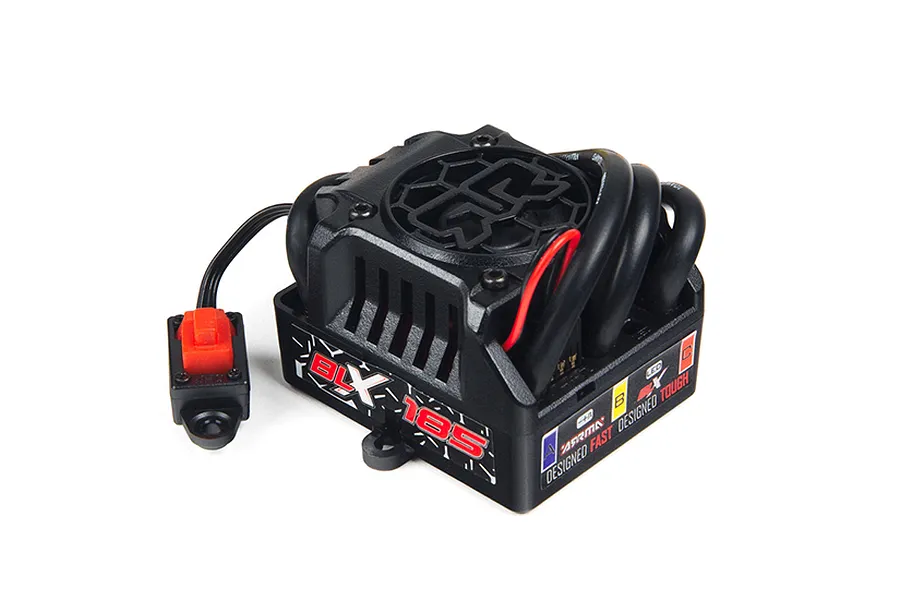

ARRMA BLX 185A Waterproof 6S Brushless ESC
ARRMA BLX 185A Waterproof 6S Brushless ESC
Brand:
ARRMA
|
SKU: AR390211
Loading compatibility information...
Description
Overview:
The BLX185 150A waterproof ESC provides consistent power control and is 6S LiPo ready.
Fitted with super-reliable XT-90 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX185 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.
The fitted 10AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
Recommended battery specification: 5000mAh - 35C minimum - Per battery pack
3S, 4S and 6S LiPo Compatibility
Features:
For futher information on the BLX185 Power System please check out the power system page located here on our website.
Specifications
ESC (Electronic Speed Controller)
-
Continuous Amps
- 150A
-
For Motor Type
- Brushless
-
Motor Connectors
- 4.0mm Bullet
-
Battery Connector
- XT90
-
BEC Voltage
- 6V
-
Dual Motor
- No
-
Cooling Method
- Fan
-
Waterproof Design
- Yes
-
Programmable
- Yes
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Max Voltage
- 22.2V
