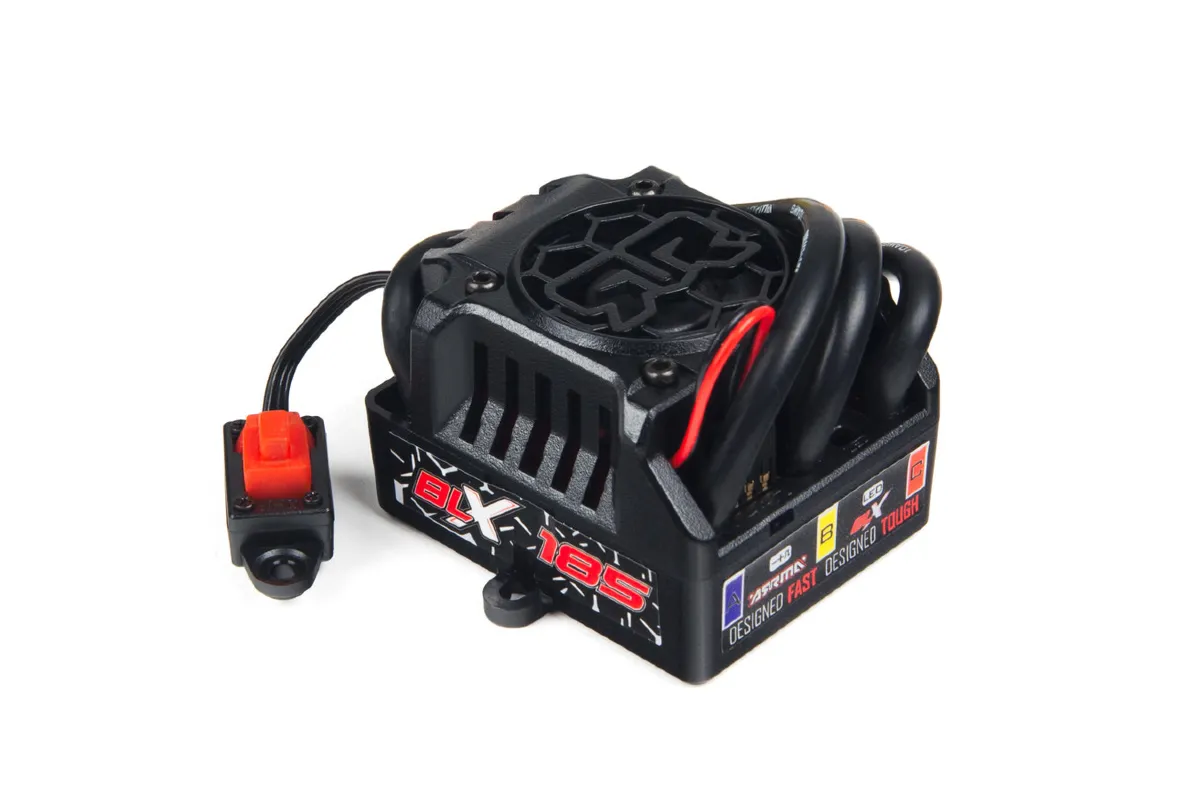

ARRMA BLX 185A Waterproof 6S Brushless ESC w/ IC5 Connectors
ARRMA BLX 185A Waterproof 6S Brushless ESC w/ IC5 Connectors
Brand:
ARRMA
|
MPN: ARA390211IC
EC5
IC5
These connectors plug into each other, so any of them fits this product.
Compatible with
13 products.
See Compatibility
Related Products
Description
The BLX185 150A waterproof ESC provides consistent power control and is 6S LiPo ready. Fitted with reliable IC5 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX185 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management. The fitted 10AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
Features
- Waterproof construction
- Built-in cooling fan for reduced heat during intense driving
- IC5 connectors
- Over voltage protection
- Two-stage LiPo cut off for added cell management
- 10AWG high-quality wires
- 6V BEC unit
- Three mode throttle profile (FWD/REVERSE/BRAKE)
- 3S, 4S and 6S LiPo compatibility
Specifications
-
ESC Type
- 150AMP Continuous current capacity
-
Battery Usage
- 3S LiPo (11.1V), 4S LiPo (14.8V) or 6S LiPo (22.2V) Stick Pack
-
Recommended battery specification
- 5000mAh - 35C minimum per battery pack
-
Low Voltage Cut-Off (LVC)
- 3.2V Per Cell
-
Thermal Protection Temperature
- 105°C (221°F)
-
Over-Voltage Protection
- Over 6S LiPo (25.2V)
-
BEC Voltage
- 6V
-
BEC Current
- 3A
-
ESC Length
- 57.5mm (2.26")
-
ESC Height
- 38.9mm (1.53")
-
ESC Width
- 59.5mm (2.34") (Including hold-down tabs)
-
ESC Weight
- 196g (6.91oz)
-
Receiver Wire Length
- 200mm (7.87")
-
Battery Wire Length
- 165mm (6.5")
BLX Brushless Extreme Performance
ESC (Electronic Speed Controller)
-
For Motor Type
- Brushless
-
Max Voltage
- 22.2V
-
Waterproof Design
- Yes
-
Continuous Amps
- 150A
-
Motor Connectors
- 4.0mm Bullet
-
Battery Connector
- IC5
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Fan
-
BEC Voltage
- 6V
-
Dual Motor
- No
