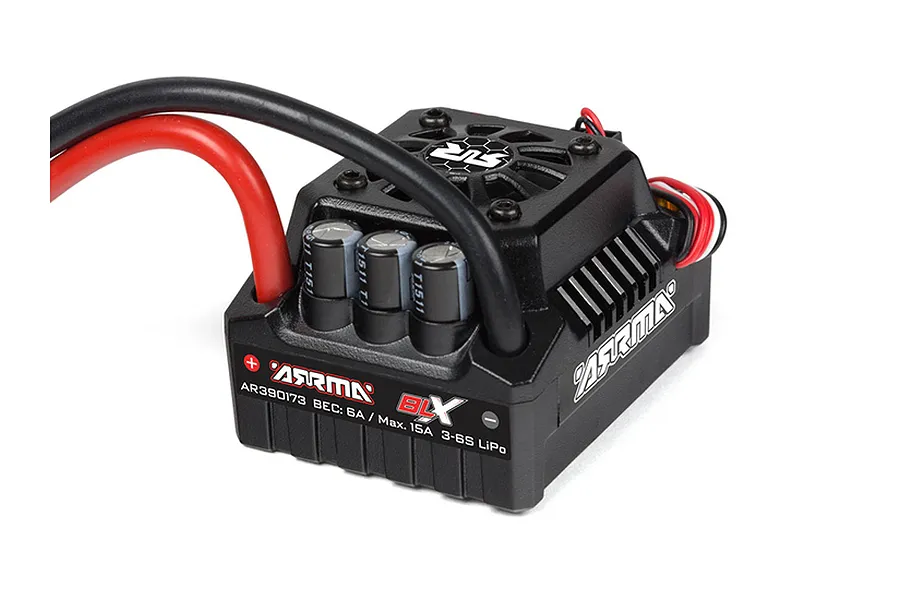

ARRMA BLX 200A Waterproof 6S Brushless ESC
Overview:
The BLX200 150A waterproof ESC provides consistent power control and is 6S LiPo ready.
Fitted with super-reliable XT90 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX200 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.
The BLX200 ESC features user adjustable parameters that include the punch setting, brake force strength and motor rotation direction. These parameters can be set simply using the setup button located on the ESC switch.
The fitted 10AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
Recommended battery specification: 5000mAh - 35C minimum - Per battery pack (battery specification dependent on model/usage)
For more information on the BLX200 Power System please see our Power Systems page here.
Features:
3S, 4S and 6S LiPo Compatibility
150A Continuous Current Handling
6V/6A BEC Circuit
5 Punch Level Settings
3 Brake Strength Settings
Adjustable Motor Rotation Direction
Over-Temperature Protection
2-Stage LiPo Cut Off
Genuine AMASS XT90 Battery Connectors
Includes:
1 x BLX200 ESC
2 x Female AMASS XT90 Connectors (for battery packs)
1 x Instruction Manual
ESC (Electronic Speed Controller) | |
---|---|
For Motor Type: | Brushless |
Max Voltage: | 22.2v |
Waterproof Design: | Yes |
Continuous Amps: | 150 |
Motor Connectors: | 5.5mm Bullet |
Battery Connector: | XT-90 |
LVC: | Yes |
Programmable: | Yes |
Cooling Method: | Fan |
BEC Voltage: | 6 |
Dual Motor: | No |
