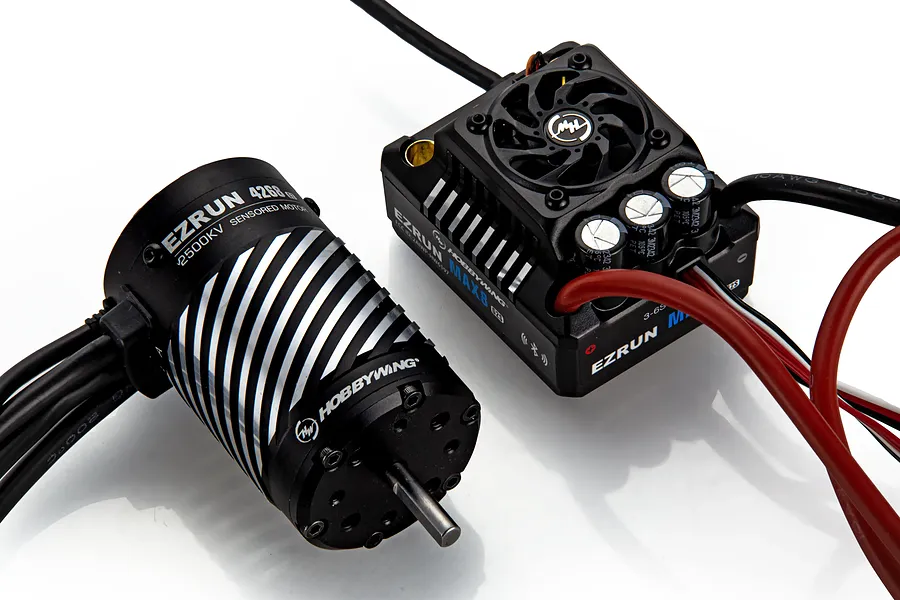

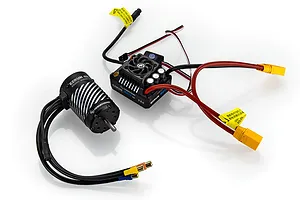

Hobbywing EzRun Max8 G2 4268 & 2500Kv Brushless Motor and ESC Combo

  • Brushless

Part no. 38010404

DiscontinuedNo reviews yet
1 / 2
1 / 2

This product has been discontinued.

Contact us

No longer made. In stock now: similar

Overview

The Hobbywing EzRun Max8 G2 is a waterproof brushless ESC and motor combo designed for 1/8-scale and large 1/10-scale vehicles running 3–6S LiPo. The ESC uses a special waterproofing and dust-proofing process to handle sediment, ice, snow, and water accumulation. It features an electronic switch mode (replacing traditional mechanical switches) that resists dust, humidity, corrosion, and impact-related failures.

Notice: Brushless electric motors and ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large or heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • Waterproof and dust-proof design — handles sediment, ice, snow, and water accumulation in harsh climates
  • Built-in ultra-powerful switch-mode BEC with support for 6V / 7.4V / 8.4V switching, supporting a wide range of high-voltage servos
  • Electronic switch replaces traditional mechanical switch — resistant to dust, humidity, contact rust, and violent impact
  • Supports 32-degree turbo timing — when used with matching motor (e.g. EZRUN 4278SD) maximum RPM increases by approximately 25%
  • Multiple protection functions: battery low-voltage protection, ESC and motor overheat protection, signal-loss protection, and current protection
  • Supports LED program card, LCD G2 program box, and OTA programmer (optional) for parameter setting
  • Real-time data logging — view running data on the HW LINK app via the OTA Bluetooth module
  • Firmware upgrade support via multi-function LCD G2 program box or OTA Programmer (purchased separately)

Specifications

ESC Specifications
Scale Vehicles1/8th
Cont./Peak Current160A / 1050A
Motor ModeSensored and sensorless brushless motor
Input3–6S LiPo
Motor Limit — 4S LiPoKV≥3000; 6S LiPo: KV≥2400 (4278 size motor)
BEC Output6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Programming PortShared with Fab interface
Switch ModeElectronic Switch
Capacitor ProtectionYes
WaterproofYes
Size (L×W×H)60mm × 48mm × 40.5mm
Weight192g
Input ConnectorXT90; Output Connector: 6.5mm gold plug (female)
Motor Specifications
Poles4
KV (No-load)2500KV
Resistance0.0065Ω
Current No-load4.8A
Motor Diameter × Length42mm / 68mm
Shaft Diameter × Projecting Length5mm / 18.5mm
LiPo3–4S
Weight355g (no wire)
Applicable1/8 off-road, 1/10 truck, crawler
Best matched with MAX8 G2 ESC

Motor

TypeBrushless
KVRPM (Revolutions Per Minute) per Volt2500KV
LengthLength of the motor can in mm42mm
DiameterDiameter of the motor can68mm
Shaft Diameter5mm

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage22.2V
Waterproof DesignYes
Continuous Amps160A
Motor Connectors6.5mm Bullet
Battery ConnectorXT90
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V, 7.4V, 8.4V
Dual MotorNo
