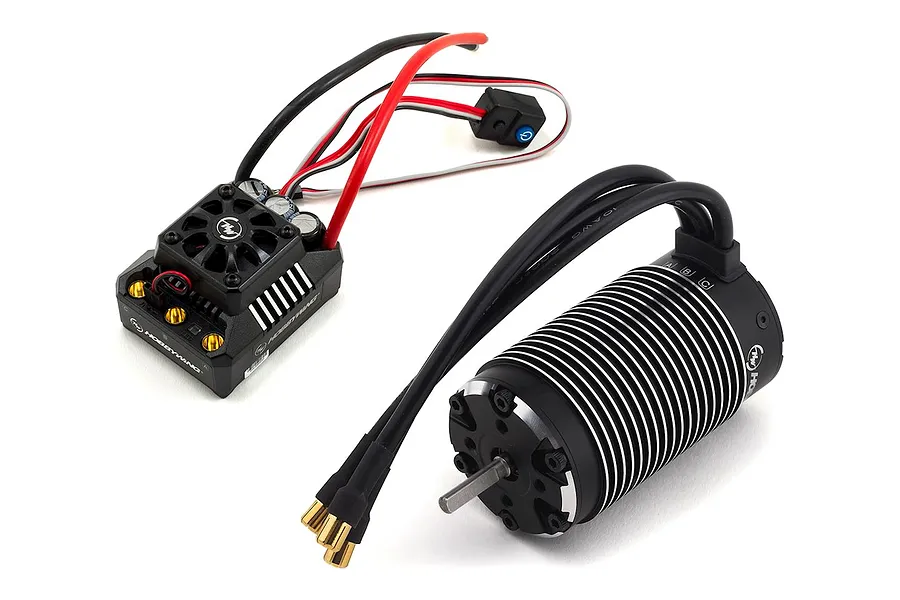

Hobbywing EzRun Max6 4985SL 1650Kv Brushless 160A Motor and ESC Combo
- Brushless
Part no. 38010801
Sold out5.0
3 reviews
$354.93
or 4 fortnightly payments of $88.73 with afterpay
Ordered 3 Nov Ā· we're waiting on our supplier
Checking delivery datesā¦
60-day returns Ā· 12,000+ 5-star reviews Ā· 03 5292 1101 Ā·
In stock now: similar
Overview
The Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo includes the 4985SL 1/7 scale 1650kV motor and is a great option for high-end, aggressively powered 3Sā6S builds.
Note
Brushless electric motors and ESCs have high torque at any RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Consult your manual and select gearing suitable for the vehicle and terrain. Damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor ESC and motor temperatures closely after modifying your system.
Specifications
| Motor | |
| Model | 4985SL-1650KV |
| Poles | 4 |
| kV (No-load) | 1650kV |
| Resistance | 0.0053Ī© |
| No-load Current | 5.4A |
| Max. Output Power | 5700W |
| Current at Max. Output Power | 160A |
| Motor Diameter | 49mm |
| Motor Length | 86.5mm |
| Shaft Diameter | 5.0mm |
| Shaft Length | 21.5mm |
| LiPo Cells | 3ā6S |
| Weight | 587g (20.71oz) |
| Applications | 1/6th & 1/7th RC Vehicles |
| ESC | |
| Continuous Current | 160A |
| Peak Current | 1,050A |
| Motor Type | Sensorless Brushless Motor |
| Applications | 1/6th Touring Car, Buggy, Truggy and Truck |
| Motor Limit ā 6S LiPo/18S NiMH | KV ā¤1500 (5892 size motor) |
| Motor Limit ā 8S LiPo/24S NiMH | KV ā¤1200 (5892 size motor) |
| LiPo/NiMH Cells | 3ā8S LiPo, 9ā24S NiMH |
| BEC Output | 6V/7.2V Switchable, Continuous Current 6A (Switch-mode BEC) |
| Cooling Fan | Powered by stable BEC voltage (6V/7.2V) |
| Connectors | Input End: None; Output End: Female 6.5mm Gold Connectors (pre-soldered) |
| Size (LxWxH) | 70x56x46.5mm |
| Weight | 240g |
| Programming Port | FAN/PRG Port |
Motor
| Type | Brushless |
|---|---|
| KV | 1650KV |
| Length | 86.5mm |
| Diameter | 49mm |
| Shaft Diameter | 5mm |
ESC (Electronic Speed Controller)
| For Motor Type | Brushless |
|---|---|
| Max Voltage | 22.2V |
| Waterproof Design | Yes |
| Continuous Amps | 160A |
| Motor Connectors | 6.5mm Bullet |
| Battery Connector | Bare Wires |
| LVC | Yes |
| Programmable | Yes |
| Cooling Method | Fan |
| BEC Voltage | 6V, 7.4V |
| Dual Motor | No |
Compatibility
Fits 29 ARRMA models
- LIMITLESS 1/7 Roller (V2) - Clear
- MOJAVE 1/7 6S BLX (V2) - Green
- MOJAVE 1/7 6S BLX (V2) - Red
- INFRACTION 6S BLX (V2) - Blue
- INFRACTION 6S BLX (V2) - Silver
- FELONY 6S BLX - Black
- FELONY 6S BLX - Orange
- TALION 1/8 6S BLX (V6) EXB - Black
- 1/8 TLR Tuned TYPHON 6S 4WD BLX Buggy RTR, Red/Blue
- TYPHON BLX 6S (V5) - Black
Fits 1 Losi model
Fits 1 Spektrum model
