Hobbywing

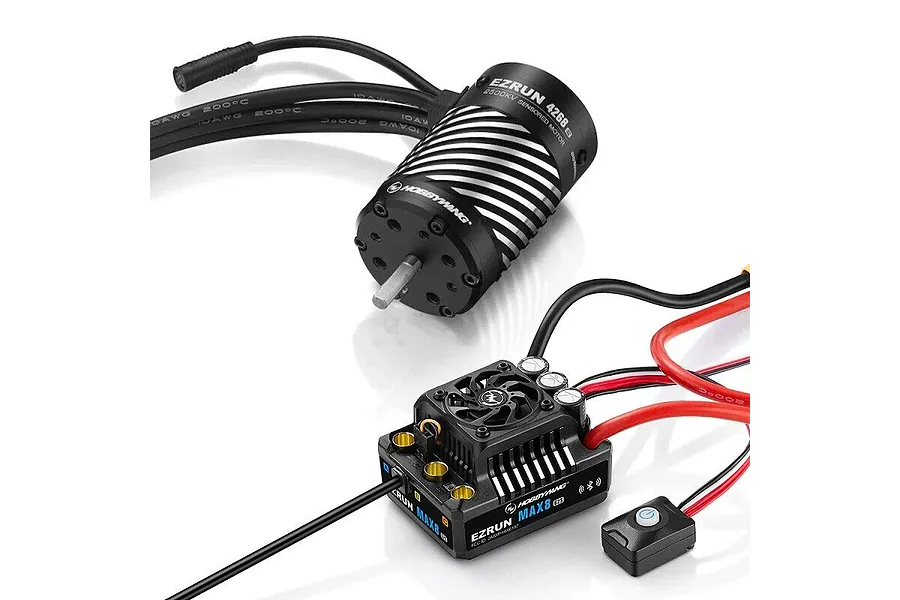

Hobbywing EZrun Max8 160A G2S ESC and EZrun 4268SD 2500Kv Sensored Brushless Motor Combo

  • Brushless

Part no. 38020375

DiscontinuedWrite a review

This product has been discontinued.

Contact us

No longer made. In stock now: similar

Overview

ESC Gearing

Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

6S LiPo Compatibility

The Hobbywing MAX8 ESC manual notes that the warranty does not extend to issues resulting from 6S LiPo configurations. Please visit the Hobbywing website for information and consult the manual for proper operation guidelines.

The Hobbywing EZRun Max8 160A G2S ESC and EZRun 4268SD 2500Kv Sensored Brushless Motor Combo is a high-performance power system designed to elevate your 1/8th scale RC experience. This combo offers a powerful ESC with advanced features, a high-RPM motor with a robust design, and seamless compatibility for optimal performance in demanding applications. The Max8 G2S ESC boasts a 160A continuous current rating and a range of programmable features, while the 4268SD motor delivers impressive speed and torque. Together, they provide the perfect balance of power and control for your 1/8th scale buggy, truggy, or monster truck. Experience the thrill of high-performance RC action with the Hobbywing EZRun Max8 G2S combo.

Features

  • Extreme power output with smooth and linear throttle response
  • Optimised hardware with intelligent freewheeling technology for increased stability and reliability
  • Built-in Bluetooth module for direct connection to the Hobbywing mobile app for parameter settings, data reading, and firmware upgrades
  • Built-in data logging function for recording and analysing performance data
  • Fan intelligent start and stop function for efficient cooling and noise reduction
  • High level of protection with an IP67 waterproof and dustproof rating
  • Turbo timing technology adjustable up to 32 degrees for increased motor RPM
  • Capacitor overheating protection for enhanced safety
  • Super BEC with a maximum output current of 15A and adjustable voltage (6V/74V/84V)
  • Waterproof sensor harness for compatibility with standard sensored motors using an optional Hobbywing adapter
  • High KV rating of 2500Kv for powerful performance
  • Sensored design for smooth and precise throttle response
  • Perfect match for the EzRun MAX8 G2S ESC with optimised compatibility and overheat protection
  • Supports higher RPM with a maximum speed of up to 60,000 RPM
  • Hobbywing's patented waterproof design with an IP67 protection rating
  • Durable materials and construction for long-lasting performance
  • Genuine Hobbywing product

In the box

  • 1x Hobbywing EZrun Max8 160A G2S ESC
  • 1xHobbywing EZrun 4268SD 2500Kv Sensored Brushless Motor

Specifications

ESC:
Length60mm (2.36")
Width48mm (1.89")
Height40.5mm (1.59")
Weight192g (6.77oz)
Continuous/Peak Current160A/1050A
WaterproofYes (IP67)
Motor Limit4S: KV≤3000 6S: KV≤2400 4278 size motor
BEC6V/7.4V/8.4V adjustable, continuous current 6A (Switch-mode)
Voltage Limit3-6S LiPo
ProgrammableYes (via built-in Bluetooth, LCD PRO)
Scale1/8th
SensoredYes
Motor:
KV2500Kv
Max Voltage3-4S
Diameter42mm (1.65")
Length68mm (2.68")
Shaft Diameter5mm (0.20")
Weight360g (12.70oz)

Motor

KVRPM (Revolutions Per Minute) per Volt2500KV
SensoredUses sensors for precise speed and position controlYes
LengthLength of the motor can in mm68mm
DiameterDiameter of the motor can42mm

ESC (Electronic Speed Controller)

For Motor TypeBrushless Sensored
Max Voltage22.2V
Waterproof DesignYes
Burst Amps1050A
Continuous Amps160A
Motor Connectors6.5mm Bullet
Battery ConnectorXT90
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V, 7.4V, 8.4V
Dual MotorNo
