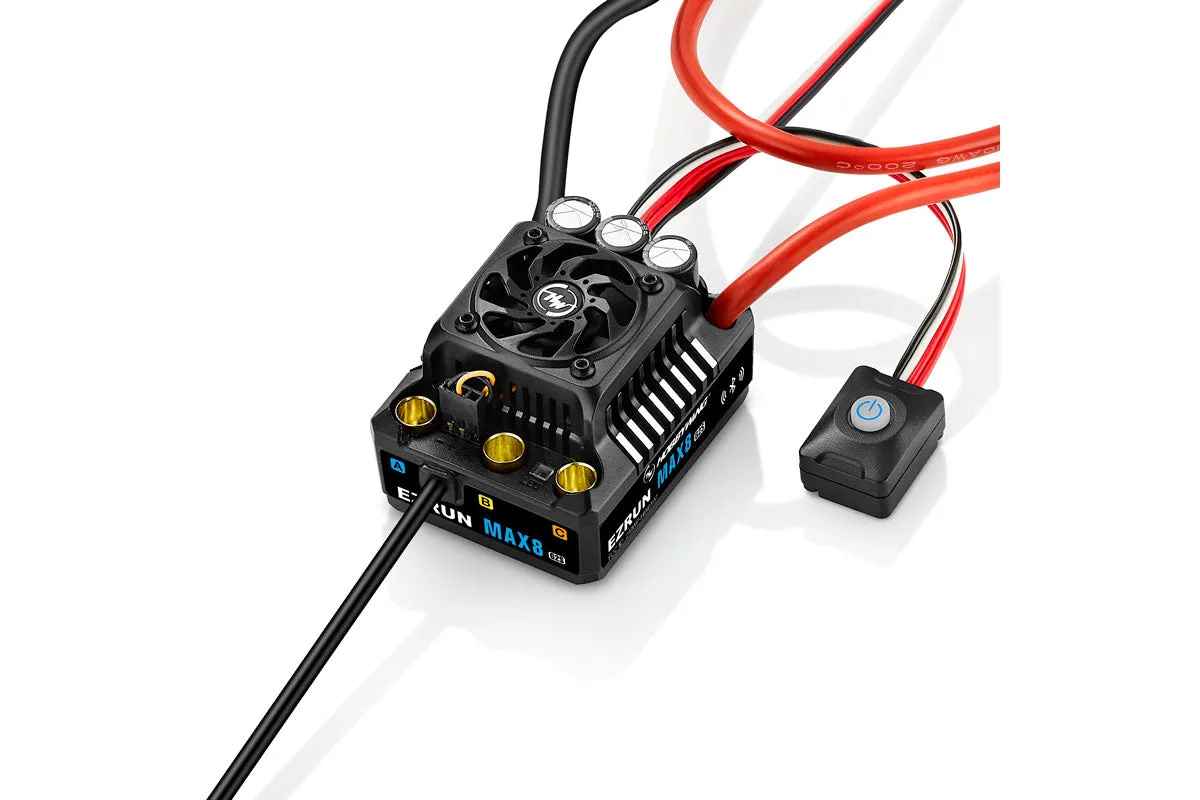

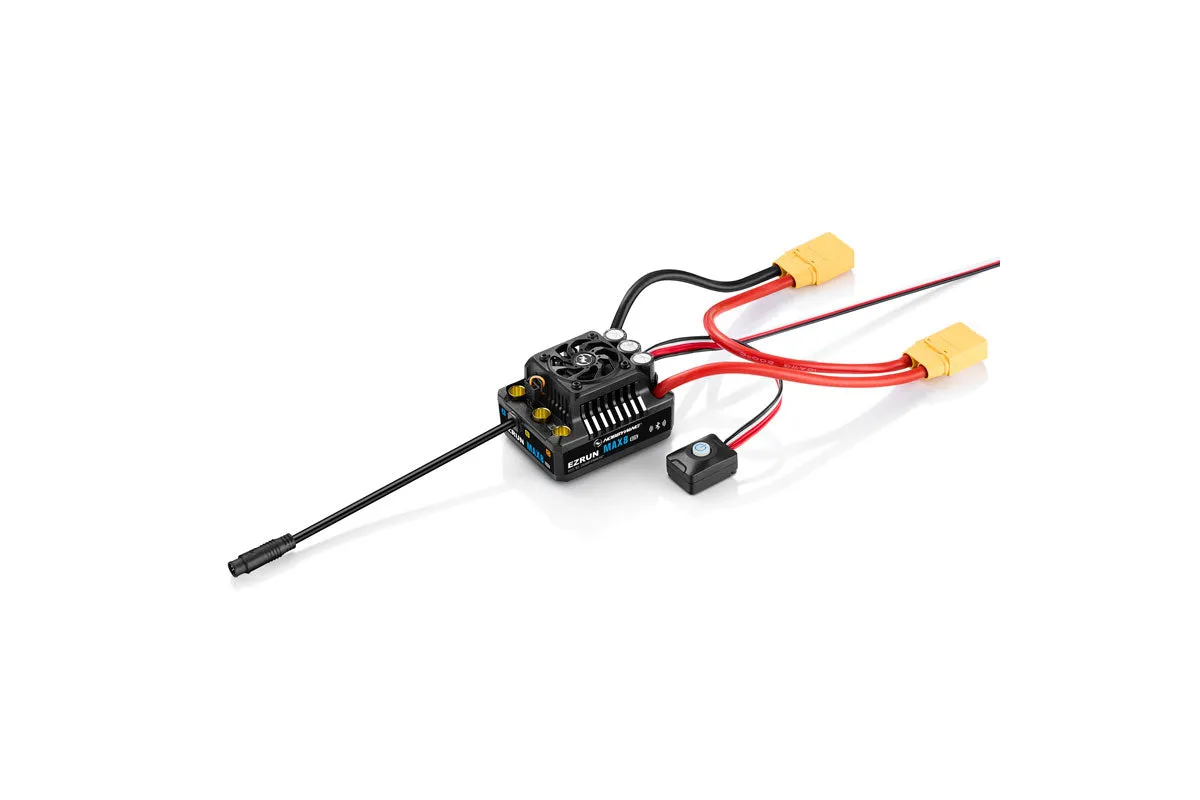

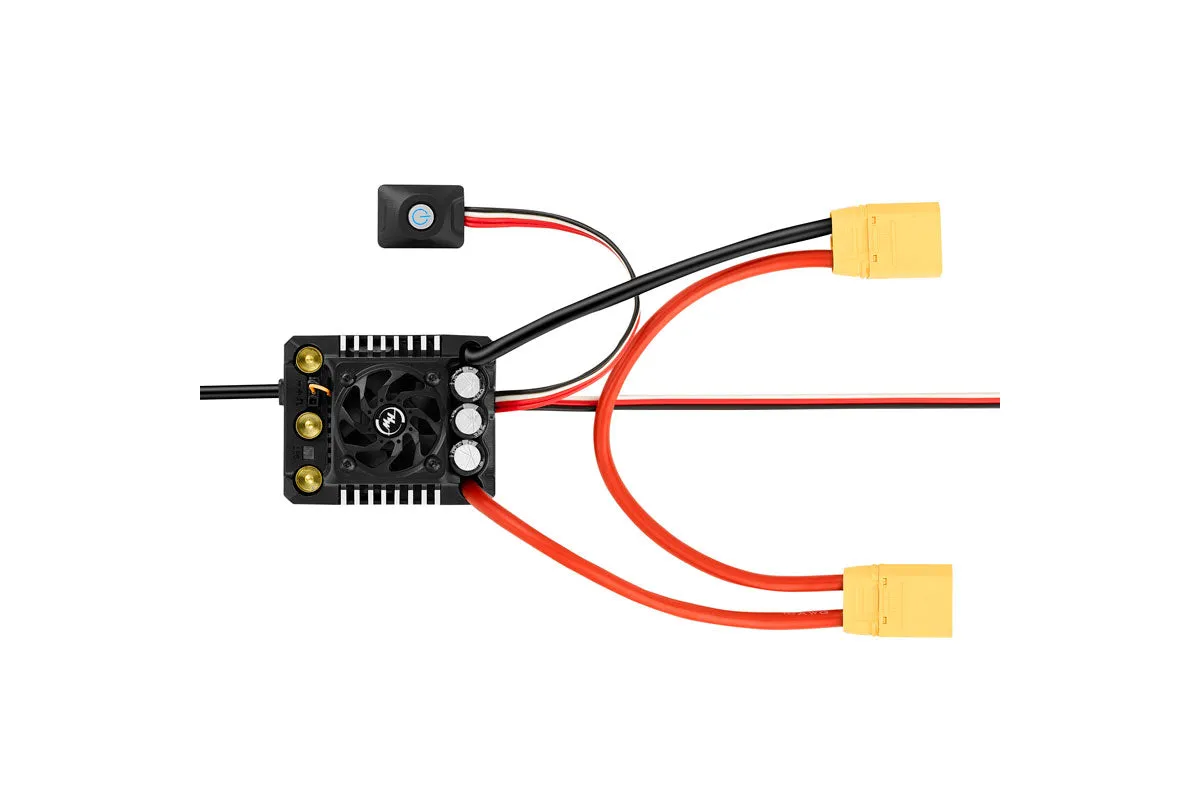

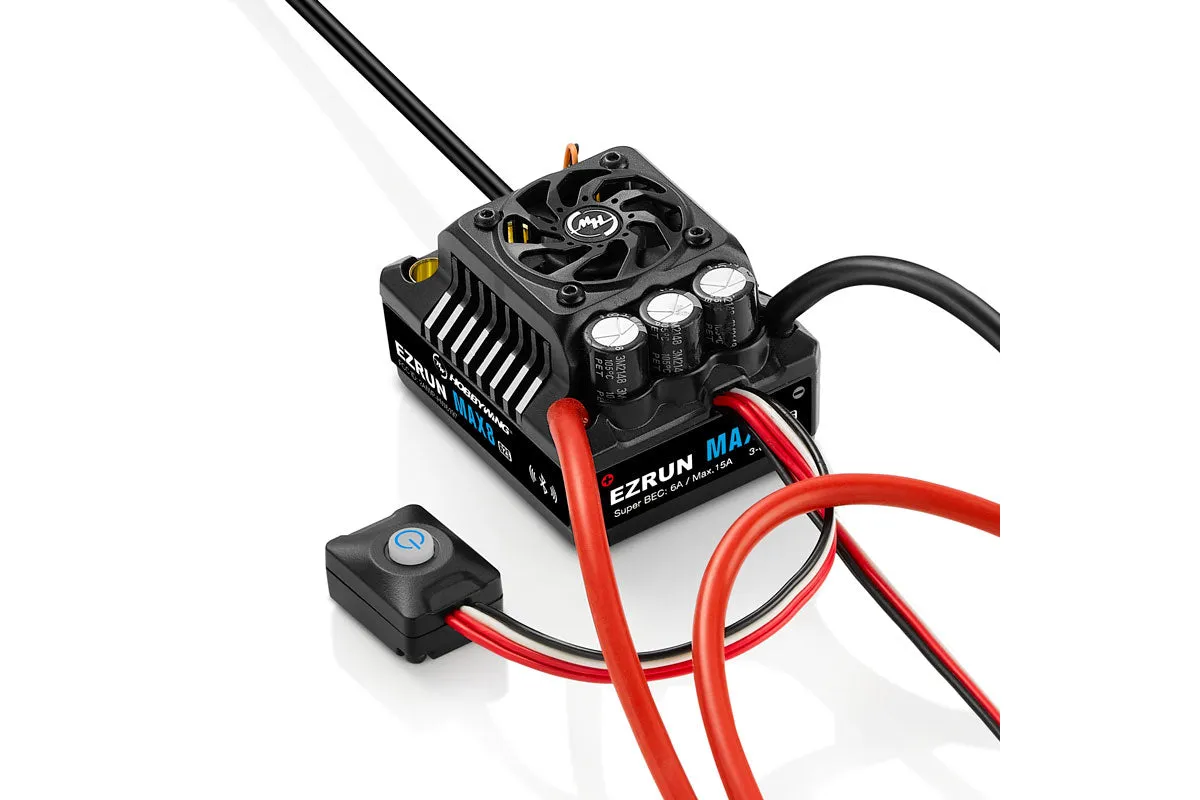

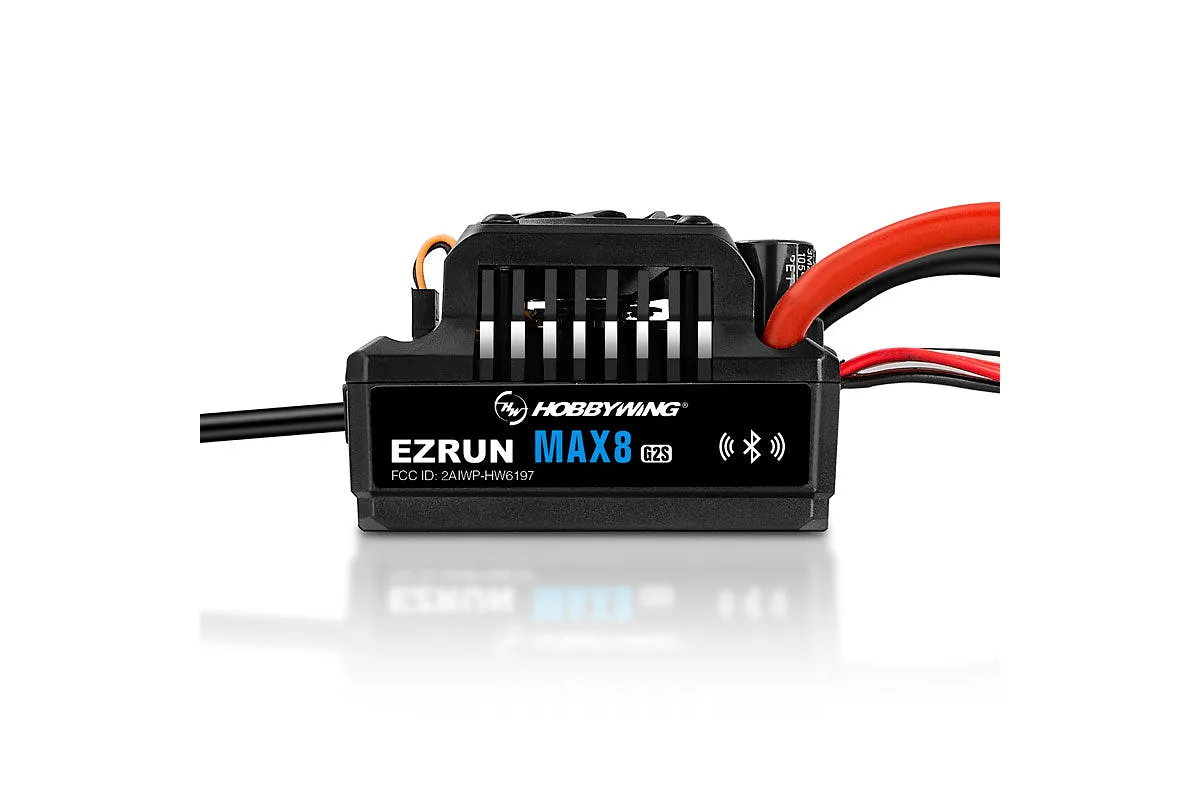

Name: Hobbywing MAX8 G2S 160A Sensored Waterproof Brushless ESC
Brand: Hobbywing
SKU: HW-30103205
Price: 223.00 AUD
Availability: OutOfStock
Rating: 5 (2 reviews)

Overview

6S LiPo Compatibility

The Hobbywing MAX8 ESC manual notes that the warranty does not extend to issues resulting from 6S LiPo configurations. Please visit the Hobbywing website for information and consult the manual for proper operation guidelines.

This powerful yet responsive ESC delivers the perfect balance for precision driving. Newly optimized with intelligent freewheeling technology, it's incredibly stable and reliable. Connect and customize effortlessly using the built-in Bluetooth and mobile app. Plus, track your stats with the data recording module, analysing up to 10 minutes of run time or viewing real-time data while testing. The intelligent fan system optimizes cooling and reduces noise, while the capacitor protection ensures durability. With adjustable output voltage and a high-power BEC, it's ready for demanding setups.

Features

Smooth, powerful throttle response for ultimate control
Enhanced stability and reliability for worry-free performance
Bluetooth connectivity for easy adjustments via mobile app
Data recording to analyze runs and improve setup
Smart fan system for efficient cooling and reduced noise
Capacitor protection safeguards components
Adjustable output voltage for compatibility with various servos
Waterproof sensor harness for all-weather durability
Genuine Hobbywing product

In the box

1x MAX8 G2S 160A Sensored Waterproof Brushless ESC

Specifications

Length	60mm (2.36 in)
Width	48mm (1.89 in)
Height	40.5mm (1.59 in)
Weight	192g (6.77 oz)
Continuous/Peak Current	160/1050A
Waterproof	Yes
Motor Limit	KV?3000 (4S), KV?2400 (6S)
BEC	6V/7.4V/8.4V
Voltage Limit	22.2V (6S)
Programmable	Yes
Scale	1/8
Sensored	Yes

ESC (Electronic Speed Controller)

For Motor Type	Brushed
Max Voltage	22.2V
Waterproof Design	Yes
Burst Amps	1050A
Continuous Amps	160A
Motor Connectors	6.5mm Bullet
Battery Connector	XT90
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes
Cooling Method	Fan
BEC Voltage	6V, 7.4V, 8.4V
Dual Motor	No
