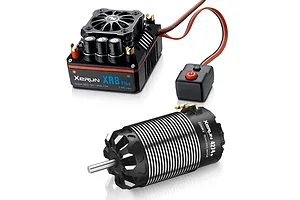

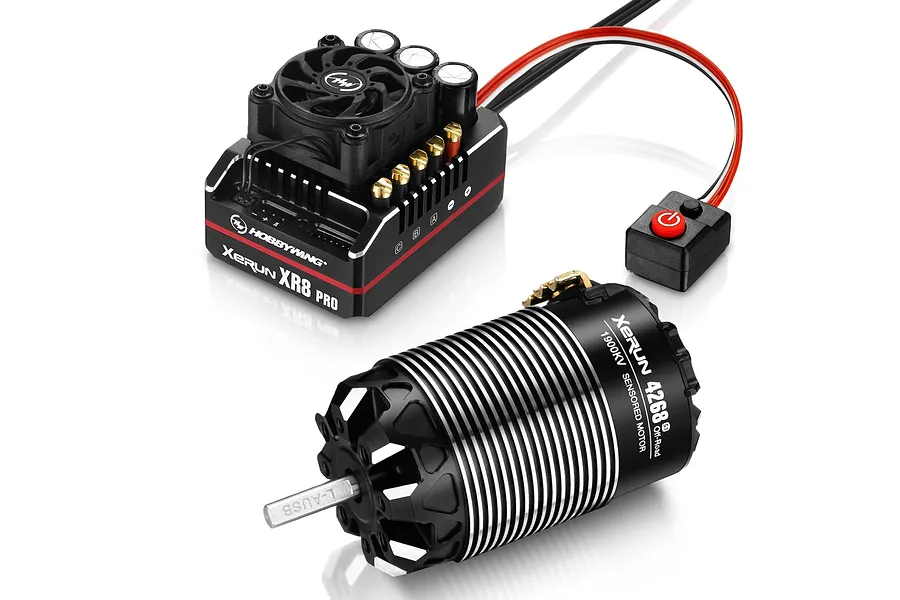

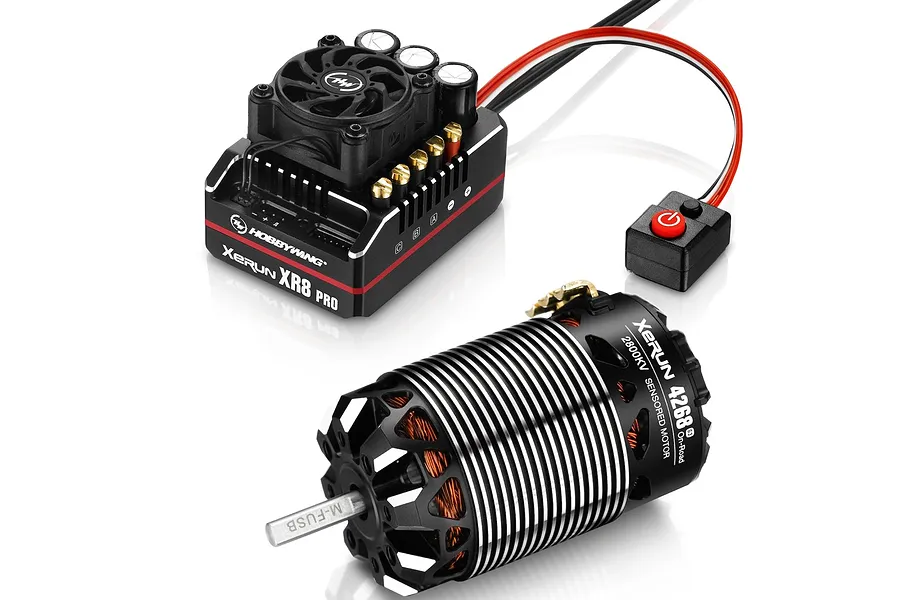

Name: Hobbywing XeRun XR8 Pro 4268 SD G3 2800Kv On-Road Brushless Motor & 200A ESC Combo
Brand: Hobbywing
SKU: HW-38020430
Price: 443.66 AUD
Availability: Discontinued

Recommended products

Hobbywing OTA Wireless Bluetooth ESC Programmer
1 review
$113.88

Overview

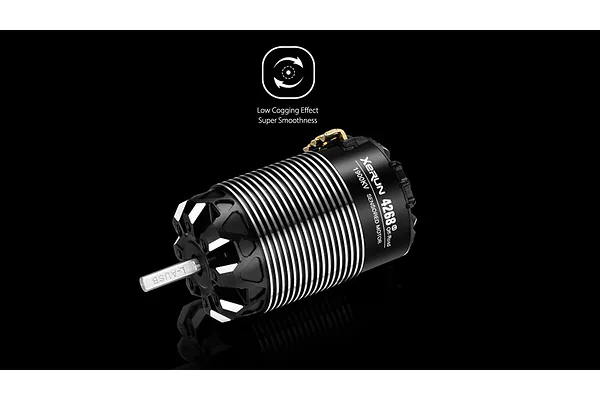

The Xerun 1/8th Competition G3 Motor & ESC Combo features an optimised motor structure that improves efficiency by more than 6% and reduces running temperature under load. The motor sensor system adopts patented "error-free" Hall sensor technology with an independent high-speed, high-precision encoder that outputs a pure and accurate rotor position signal, isolating external interference known to cause sensor errors. The motor also minimises cogging and small torque pulses at low RPM for smoother performance at low speeds, and is rated IP5X with a dustproof design.

Note

Brushless electric motors and ESCs have large amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

Xerun 4268 SD G3 Motor — suitable for 1/8th SCT, Buggy and Touring Car
Turbo Timing Technology
Full Sensored mode (when paired with XR8 SCT ESC or XR8 Pro ESC)
Adjustable Timing (Bi-Directional) 20–40 degrees
Advanced Hall Sensor System — patented "error-free" technology
4-pole-8-magnet "Staggered Pole" rotor — Hobbywing patented design
Double insulated windings (240°C R-rated), NMB bearings from Japan, high-intensity adhesive (340°C)
XR8 Pro 200A ESC — built-in 5 common profiles for all 1/8 racing (Zero timing/Blinky mode, Off-Road Racing, On-Road Racing, GT Racing, Sport mode)
29 built-in adjustable parameters
Parameters can be imported and exported for sharing between drivers
Supports firmware upgrade via multi-function LCD programming box or OTA Programmer (sold separately)
Supports 48 degrees Boost and Turbo timing
When matched with Xerun 1/8 motor (G3 4268/4274), maximum speed can be promoted by 50%
Low voltage protection, thermal protection of ESC, motor and capacitor
Built-in switch mode BEC: maximum output 15A, voltage adjustable 6V–8.4V (step: 0.1V)
Built-in reverse connection protection circuit
Off-line data record: reads max temperature and RPM via HW Link (OTA Programmer sold separately)
Real-time data record: throttle, voltage, current, temperature, RPM via HW Link OTA Programmer

In the box

1x Xerun 4268 SD G3 2800Kv Brushless Motor
1x XR8 Pro 200A Brushless ESC

Highlights

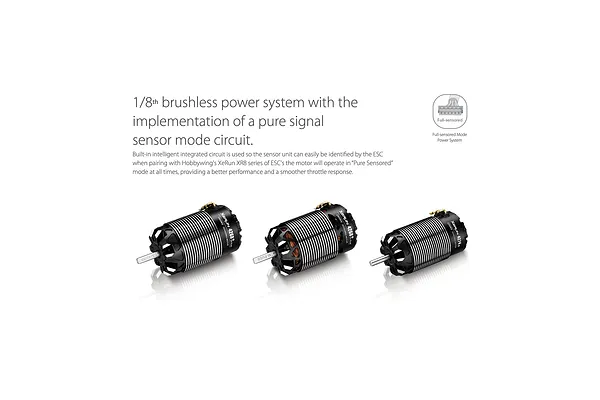

Hobbywing XeRun XR8 Pro combo — product overview

The Xerun 1/8th Competition G3 Motor & ESC Combo with efficient design that reduces running temperature.

XeRun 4268 SD G3 motor detail

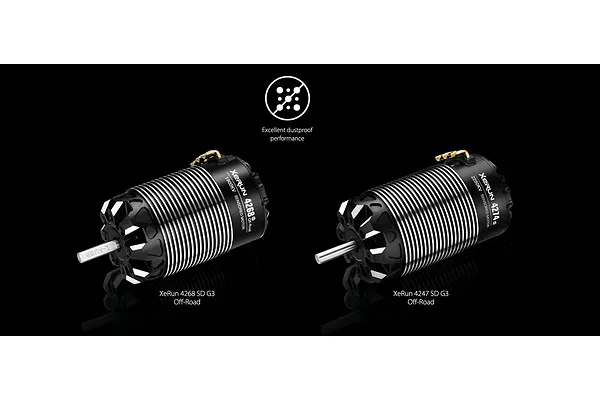

The motor is rated for IP5X with a dustproof design to minimise debris entering the motor.

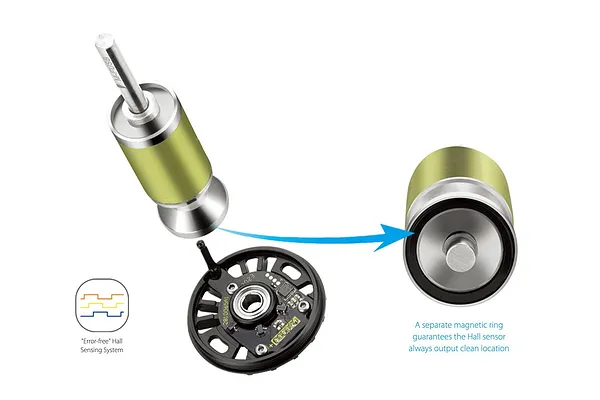

Advanced Hall sensor system detail

The motor sensor system adopts patented technology of 'error-free' Hall sensor technology, with an independent high-speed and high-precision encoder.

XR8 Pro 200A ESC detail

Built-in 5 common profiles, suitable for all 1/8 Racing, select and use instantly.

ESC programming and connectivity features

Support the firmware upgrade of the ESC; the multi-function LCD programming box or OTA Programmer is needed to purchase.

Combo motor and ESC performance features

When matching with XERUN 1/8 motor (G3 4268/4274) motor, the Max. Speed can be promoted by 50%.

Specifications

	Xerun 4268 SD G3 Motor
Kv	2800Kv
Poles	4
LiPo	2–4S (7.4V–14.8V)
No Load Current	6.1A
Size O.Dia / Length	42 / 68mm
Weight	300g (10.58 oz)
Vehicles	1/8
	XR8 Pro 200A ESC
Continuous/Peak Current	200A / 1080A
Motor Type	Sensored / Sensorless Brushless Motor
Main Applications	1/8th Scale On-road, Buggy, Truggy for High-level Races
LiPo/NiMH Cells	6–12 Cells NiMH / 2–4S LiPo
BEC Output	6–8.4V Adjustable, Continuous/Peak Current: 6A/15A (Switch-mode)
Cooling Fan	Powered by stable BEC voltage of 6–8.4V
Size/Weight	56.1(L) x 42.1(W) x 38.6(H)mm / 114g (with wires)
Programming Port	FAN/PRG Port
ESC Programming	OTA Programmer

Motor

Type	Brushless
KVRPM (Revolutions Per Minute) per Volt	2800KV
LengthLength of the motor can in mm	68mm
DiameterDiameter of the motor can	42mm
Shaft Diameter	5mm

ESC (Electronic Speed Controller)

For Motor Type	Brushless
Max Voltage	14.8V
Waterproof Design	Yes
Continuous Amps	200A
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes
Cooling Method	Fan
BEC Voltage	ProgrammableV
Dual Motor	No
