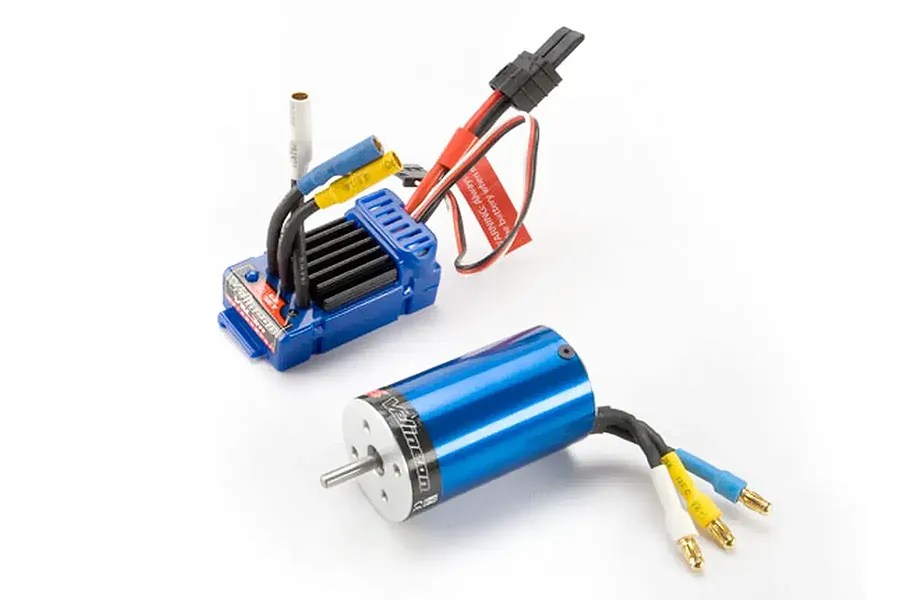

Traxxas Velineon 4000Kv Brushless Waterproof 25A Combo

Traxxas Velineon 4000Kv Brushless Waterproof 25A Combo

Videos

Traxxas Velineon 4000Kv Brushless Waterproof 25A Combo

Brand: Traxxas | SKU: 3370
1 in stock
$375.79
Select Connector
Traxxas Non iD
Deans + $5.50
XT60 + $5.50
XT90 + $5.50
EC5 + $5.50
Other Connector + $5.50
Other Connector
Add to Wishlist
Pay later with
Afterpay Zip Paypal

Want more than 1?
and we'll notify you when the stock is here.
Shop replacement & upgrade parts for this model
Shop Parts
Loading compatibility information...
Description

The mighty combo that has made the mind-blowing speeds of Taxxas' 1/16 VXL series possible!
Even better you can install this system in other cars or maybe your project car when you just want it to go fast.

Being waterproof just opens up a whole new range of terrains like snow, mud, & water!
This combo may be small but let me tell you it's more than meets the eye, I mean just look at what this combo does to the Traxxas 1/16 E-Revo VXL in the video!

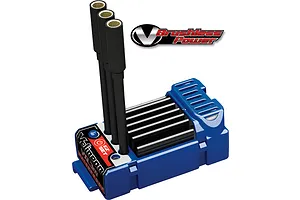

ESC Specifications
  • For Motor Type: Brushless
  • Max Voltage: 11.1v
  • Continuous Amps: 25
  • Motor Connectors: 3.5mm Bullet
  • Battery Connector: Traxxas
  • LiPo Cut-off: Yes
  • Programmable: Yes
  • Waterproof Design: Yes
  • Cooling Method: Air
  • BEC Voltage: 6v
  • Dual Motor: No

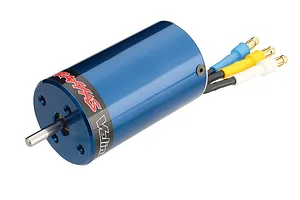

Motor Specification
  • Motor Type: Brushless
  • Can Length (mm): 48mm
  • Can Diameter (mm): 27.8
  • KV (RPM/V): 4000
  • Shaft Diameter (mm): 3.175 (1/8")
  • Turns: 8

Velineon® VXL-3m Brushless Power System, waterproof (includes waterproof VXL-3m ESC and Velineon 380 motor)

The ultimate upgrade! The key to the Velineon's extreme power output is total system optimization. All of the components are carefully engineered to work seamlessly together. From the Traxxas High Current battery connector, to the powerful Velineon 380 brushless motor, all parts of the system are optimized to eliminate restriction and allow maximum power flow. High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control.
Specifications
Motor
KV
RPM (Revolutions Per Minute) per Volt
4000KV
Turns
8
Length
Length of the motor can
48mm
Diameter
Diameter of the motor can
27.8mm
Type
Brushless
Shaft Diameter (mm)
3.175 (1/8")
ESC (Electronic Speed Controller)
Motor Connectors
3.5mm Bullet
Battery Connector
Traxxas (Non iD)
BEC Voltage
6V
Waterproof Design
Yes
Cooling Method
Air
Programmable
Yes
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Max Voltage
11.1V
Continuous Amps
25A
Dual Motor
No
For Motor Type
Brushless
