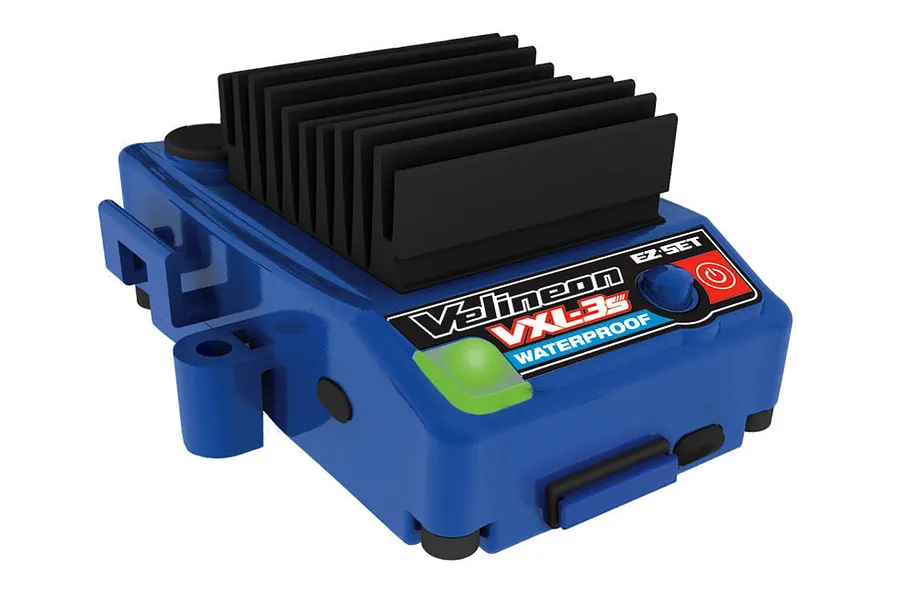

Traxxas VXL-3s Waterproof 200A Brushless ESC
Brand: Traxxas
|
SKU: 3355X
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
Overview
The Traxxas VXL-3s is one of the most popular brushless ESCs available, renowned for its user-friendly EZ-Set button, which simplifies setup for all users. Traxxas has successfully streamlined what is normally a complex process, making this high-performance ESC accessible to everyone.
Features
- Auto-detects brushed, brushless, and sensored brushless motors
- Traxxas High-Current connector for unrestricted power flow
- Built-in two-stage low voltage detection for LiPo batteries
- Patented Training Mode™ reduces power output by 50% for beginners
- Advanced circuit design for smooth operation
- EZ-Set® push-button setup for simple programming
- Three programmable drive profiles (Sport, Race, Training)
- Genuine Traxxas product
Specifications
- Length: 55mm (2.17 in)
- Width: 39mm (1.54 in)
- Height: 33mm (1.30 in)
- Weight: 90g (3.17 oz)
- Continuous/Peak Current: 200A/320A
- Waterproof: Yes
- Motor Limit: N/A
- BEC: 6.0V @ 2.5A
- Voltage Limit: 4-9 Cells NiMH (4.8-10.8V); 2-3S LiPo (7.4-11.1V)
- Programmable: Yes (EZ-Set)
- Scale: 1/10, 1/8
- Sensored: Yes
Included items
| Description | QTY |
|---|---|
| Traxxas VXL-3s Waterproof Brushless ESC | 1 |
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| Burst Amps: | 320 |
| For Motor Type: | Brushless |
| Max Voltage: | 11.1 |
| Continuous Amps: | 200 |
| Motor Connectors: | 3.5mm Bullet |
| Battery Connector: | Traxxas ID |
| LiPo Cut-off: | Yes |
| Programmable: | Yes |
| Waterproof Design: | Yes |
| Cooling Method: | Air |
| BEC Voltage: | 6v |
| Dual Motor: | No |
