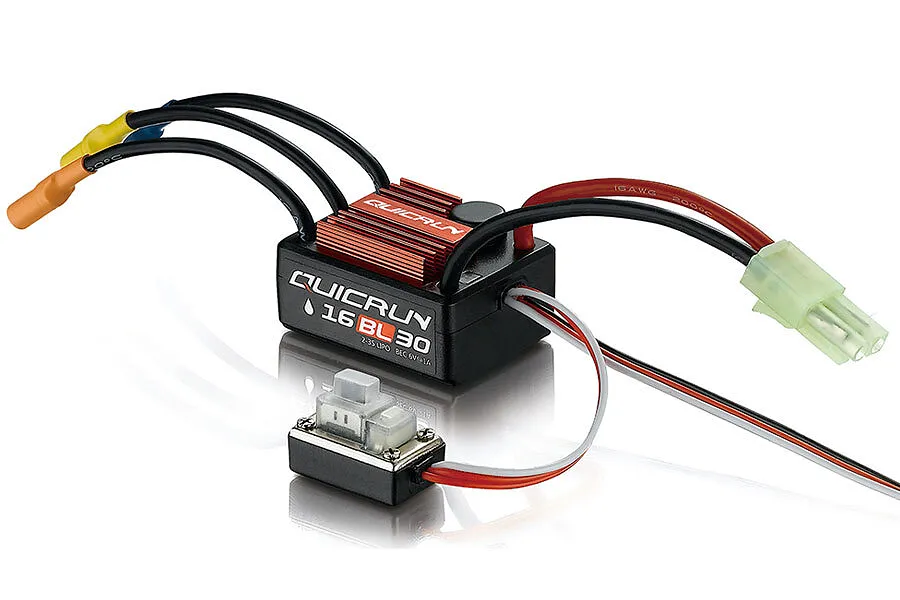

Hobbywing QUICRUN 16BL30 Waterproof 30A Brushless ESC

Hobbywing QUICRUN 16BL30 Waterproof 30A Brushless ESC

Hobbywing QUICRUN 16BL30 Waterproof 30A Brushless ESC

Brand: Hobbywing | MPN: 30110000
sold out
5.0
1 reviews
$65.56
or 4 fortnightly payments of $16.39 with Afterpay

Waterproof 30A brushless sensorless ESC for 1/16th and 1/18th scale vehicles, supporting 2–3S LiPo and 6–9 cell NiMH.

Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description

The QuicRun WP 16BL30 brushless sensorless ESC is specially designed for new beginners and intermediate modelers. This speed controller is applicable to all-weather sport of 1/18th, 1/16th scale touring cars, buggies, trucks, and monster trucks.

Reliable hardware combined with advanced software technology allows the QUICRUN WP-16BL30 to not only provide high power output but also overload protection of the ESC circuit.

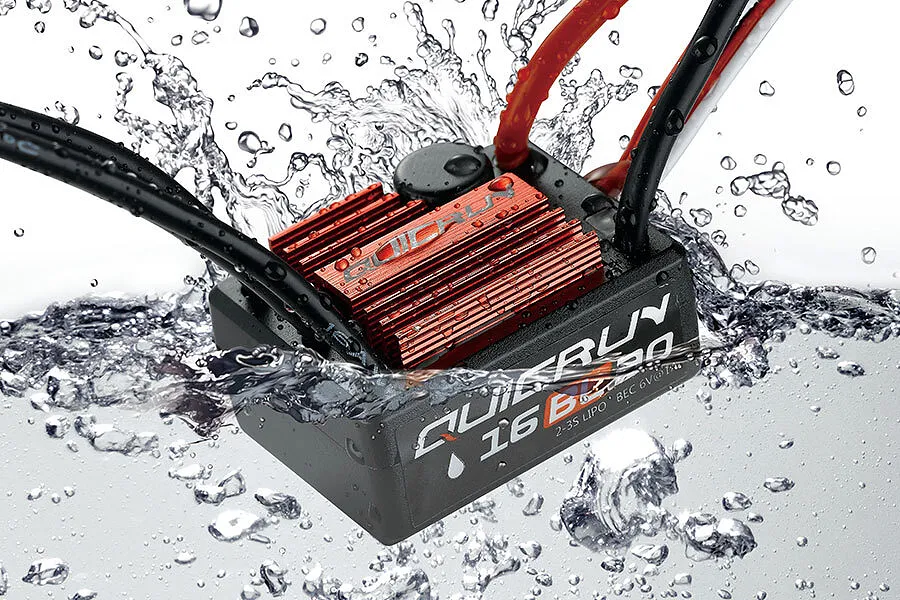

The waterproof and dust-proof design allows the QUICRUN WP-16BL30 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

Features
  • High Reliability & Durability
  • Efficient Cooling System
  • Easy Operation
  • Applicable to All Weather Conditions
  • Single-button Programming & Factory Reset
Note

Brushless electric motors and ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Specifications
Scale
1/16th & 1/18th
Brushed/Brushless
Brushless
Sensored/Sensorless
Sensorless
Waterproof
Yes
Cont./Peak Current
30A/180A
Input
2–3S LiPo / 6–9 Cells NiMH
BEC Output
Linear Mode 6V/1AA
Input Wires
Red 16AWG 75mm ×1 / Black 16AWG 75mm ×1
Output Wires
Black 16AWG 75mm ×3
Input Connectors
Small-sized TAMIYA Connector
Output Connectors
3.5 Gold Connector (Female)
Size
36.0×28.0×16.0mm
Weight
38g

ESC (Electronic Speed Controller)
For Motor Type
Brushless
Max Voltage
11.1V
Waterproof Design
Yes
Continuous Amps
30A
Motor Connectors
3.5mm Bullet
Battery Connector
Mini Tamiya
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Programmable
Yes
Cooling Method
Air
BEC Voltage
6V
Dual Motor
No
Reviews (1)
Write a review
Your Name
Rate this product
0 out of 5 stars 😠 👎 😒 🙂 🤩

5 out of 5 stars

1 year ago
Rob I
Verified Buyer
Great quality ESC. The compact design does not reduce performance in the slightest. Recommend this product. Programmable with button, there is a control card available separately.
