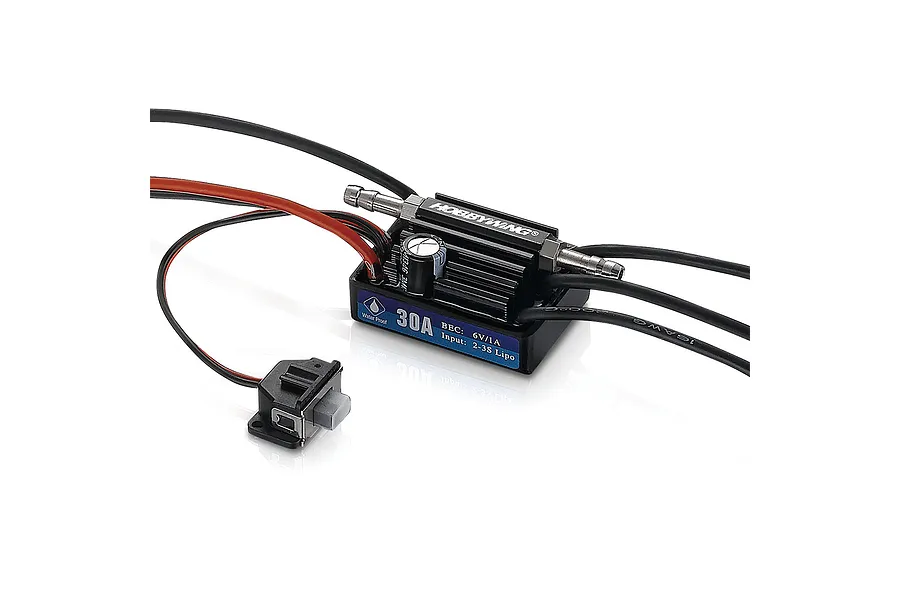

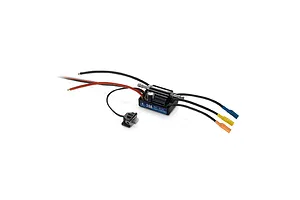

Hobbywing Seaking V3 Waterproof 30A Brushless ESC
Brand: Hobbywing
|
SKU: 30302060
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
Built with high-quality components and coupled with cutting-edge firmware, the Seaking V3 is featured by unmatched performance and reliability. Multiple safety adjustable options are in use, with the implementation of the low-voltage cutoff protection, thermal protection and throttle signal loss protection.
The Hobbywing patented heat-conductive copper bar cover on the power board of the Seaking V3 can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum water cooled heat sink housing thus keeping your ESC as cool as possible.
Features
- Special Algorithm Design
- Built-in BEC
- Waterproof Design
- Separate PRG/FAN Port
- Reliability and performance
- Efficient Cooling system
Specifications
- Brushless
- Waterproof: Yes
- Cont./Peak Current: 30A/180A
- Input: 2-3S LiPo/5-9 Cells NiMH
- BEC Output: Linear Mode:6V/1A
- Input Wires: Red-14AWG-100mm*1, Black-14AWG-100mm*1
- Output Wires: Black-16AWG-75mm*3
- Input Connectors: No
- Output Connecotors: 3.5mm bullet
- Size: 54.5x28.3x18.7mm
- I.D./O.D. of the Water Cooling Pipe: 2.0/4.0 mm
- Weight: 41g
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| For Motor Type: | Brushless |
| Max Voltage: | 11.1V |
| Waterproof Design: | Yes |
| Continuous Amps: | 30A |
| Motor Connectors: | 3.5mm Bullet |
| Battery Connector: | Bare Wires |
| LVC: | Yes |
| Programmable: | Yes |
| Cooling Method: | Water |
| BEC Voltage: | 6V |
| Dual Motor: | No |
