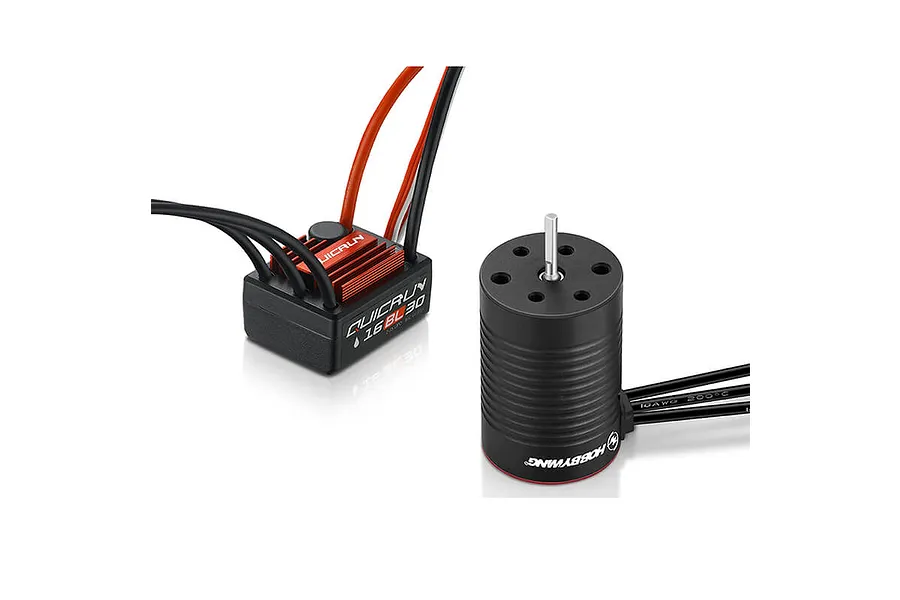

Hobbywing Quicrun 16BL30 30A ESC & 2435SL 6500kV G3 Motor Combo
Hobbywing Quicrun 16BL30 30A ESC & 2435SL 6500kV G3 Motor Combo
Designed for smaller scale 1/16 and 1/18 vehicles, the Hobbywing 16BL30 is the perfect bolt in upgrade for your mini basher. Capable of handling up to 11.1V of LiPo power, this ESC can take your mini RC to the next level. Paired with the Quicrun series of 2435 sized motors, this combo is sure to impress and provide all the speed and power you need to crash, bash and smash all day long.
Hobbywing have also made this mighty combo waterproof, so it can handle even any variety of terrain you throw at it.
Features
Waterproof design helps protect your electronics from the wet
Adjustable program settings can be done through the power switch button
Compatible with NiMH and LiPo batteries
Genuine Hobbywing Product
Paired with the new G3 motor
Specifications
Length: 36 mm (1.42 in)
Width: 28 mm (1.10 in)
Height: 18 mm (0.71 in)
Weight: 38 g (1.34 oz)
Continuous/Peak Current: 30/180A
Waterproof: Yes
Motor Limit: 3652, 3660 Sized Motors
BEC: 6V @ 1A
Voltage Limit: 11.1V LiPo
Programmable: Yes
Scale: 1/16, 1/18
Sensored: No
Included items
| Description | QTY |
|---|---|
| Hobbywing Quicrun 16BL30 30A ESC | 1 |
| Hobbywing Quicrun 2435SL 6500KV G3 Motor | 1 |
-
KVRPM (Revolutions Per Minute) per Volt
- 6500KV
-
LengthLength of the motor can
- 35mm
-
DiameterDiameter of the motor can
- 24mm
-
Type
- Brushless
-
Shaft Diameter (mm)
- 2
-
Continuous Amps
- 30A
-
Motor Connectors
- 3.5mm Bullet
-
Battery Connector
- Mini Tamiya
-
BEC Voltage
- 6V
-
Waterproof Design
- Yes
-
Cooling Method
- Air
-
Programmable
- Yes
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Max Voltage
- 7.4V
-
For Motor Type
- Brushless
-
Dual Motor
- No
-
Burst Amps
- 180A
