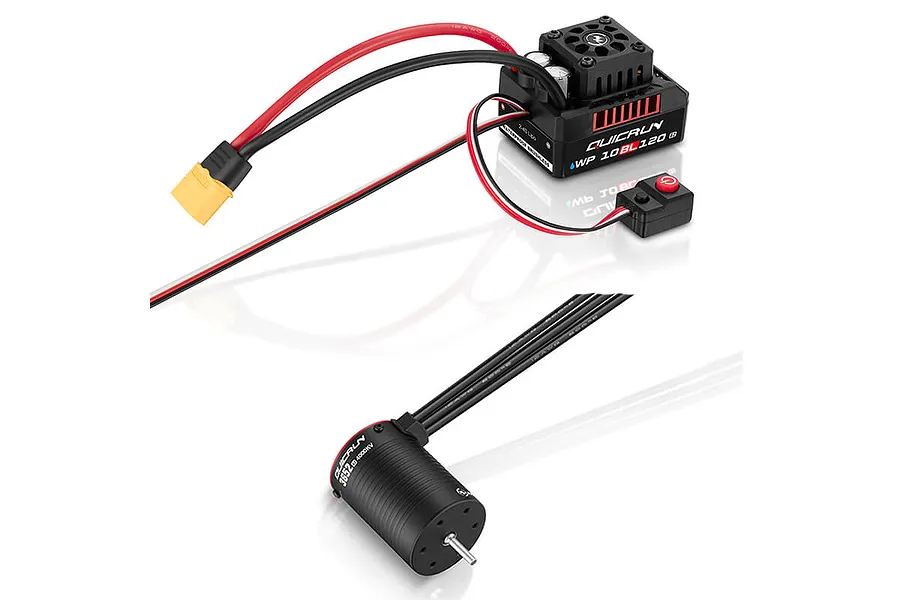

Hobbywing Quicrun G2 10BL120 120A ESC & 3652SL 5400kV G2 Motor
Built upon the renowned quality and durability of HOBBYWING, the new 10BL120 Waterproof G2 ESC takes user-friendliness to the next level. Its streamlined design and intuitive setup make it the perfect choice for 10th scale enthusiasts, whether you're a seasoned racer or a weekend warrior. With easy set programs, proven reliability and an incredible ability to handle difficult conditions, the 10BL120 is sure to impress
This wonderful ESC has been paired by Hobbywing with the Quicrun Series of brushless motors ready to bolt straight into your rig and instantly get the most out of it.
Features
Motor rotation adjustment compatible
Programmable through on board button
Low voltage, Overheat, Signal Loss and Voltage over load protection built in
BEC upgrade
Boost/Turbo timing technology
Waterproof design makes it perfect for a multitude of conditions
Specifications
Length: 39.8 mm (1.57 in)
Width: 38.2 mm (1.50 in)
Height: 52.8 mm (2.08 in)
Weight: 119 g (4.20 oz)
Continuous/Peak Current: 120/760A
Waterproof: Yes
Motor Limit: 3652, 3660 Sized Motors
BEC: 6,7.4V @ 5A
Voltage Limit: 14.8V LiPo
Programmable: Yes
Scale: 1/10
Sensored: No
Included items
| Description | QTY |
|---|---|
| Hobbywing Quicrun 10BL120 120A Sensored Brushless ESC | 1 |
| Hobbywing Quicrun 3652SL 5400Kv G2 Brushless Motor | 1 |
-
Continuous Amps
- 120A
-
Battery Connector
- Bare Wires
-
Motor Connectors
- Bare Wires
-
BEC Voltage
- 6V, 7.4V
-
Waterproof Design
- No
-
Cooling Method
- Fan
-
Programmable
- Yes
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Max Voltage
- 11.1V
-
For Motor Type
- Brushless
-
Dual Motor
- No
-
Burst Amps
- 760A
-
DiameterDiameter of the motor can
- 36mm
-
KVRPM (Revolutions Per Minute) per Volt
- 5400KV
-
LengthLength of the motor can
- 52mm
-
Type
- Brushless
-
Shaft Diameter (mm)
- 3.175 (1/8")
