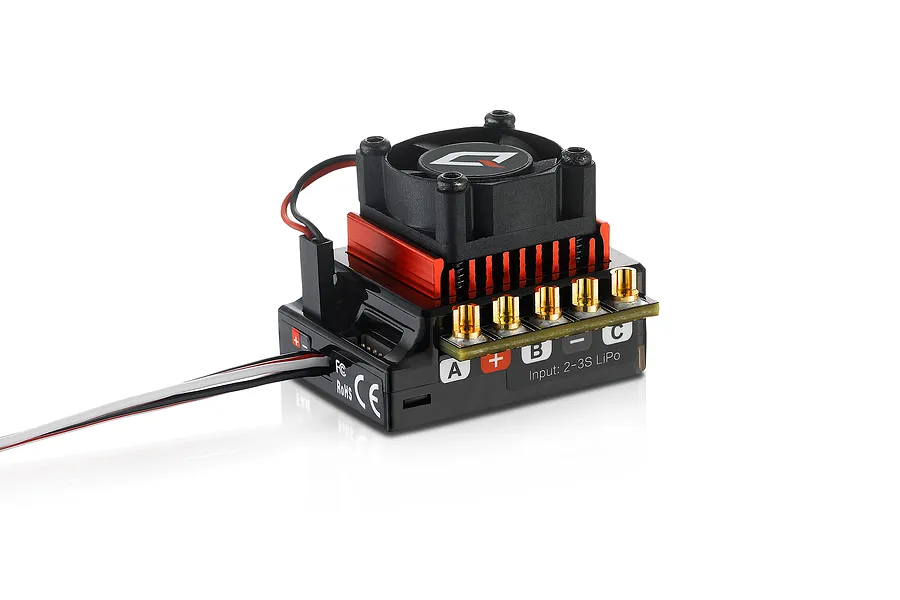

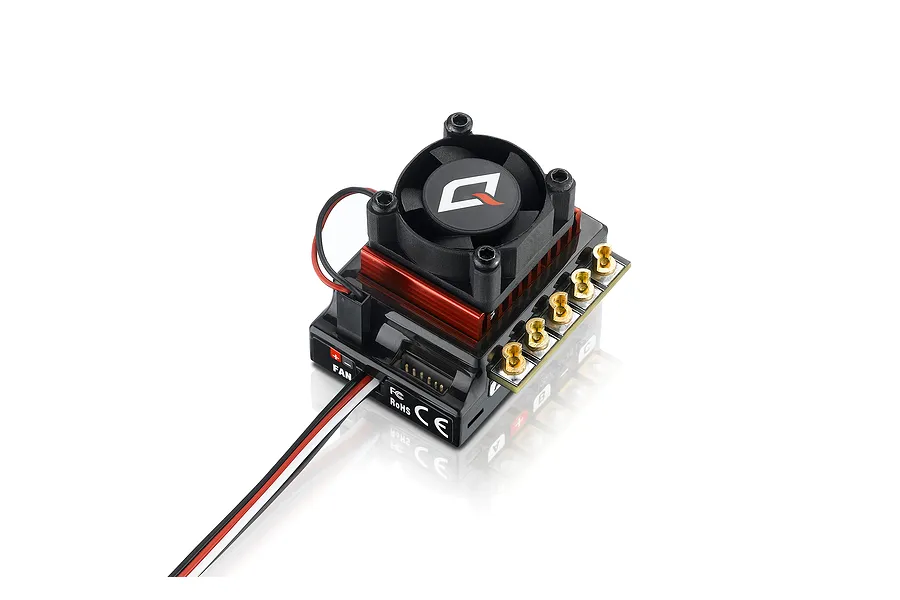

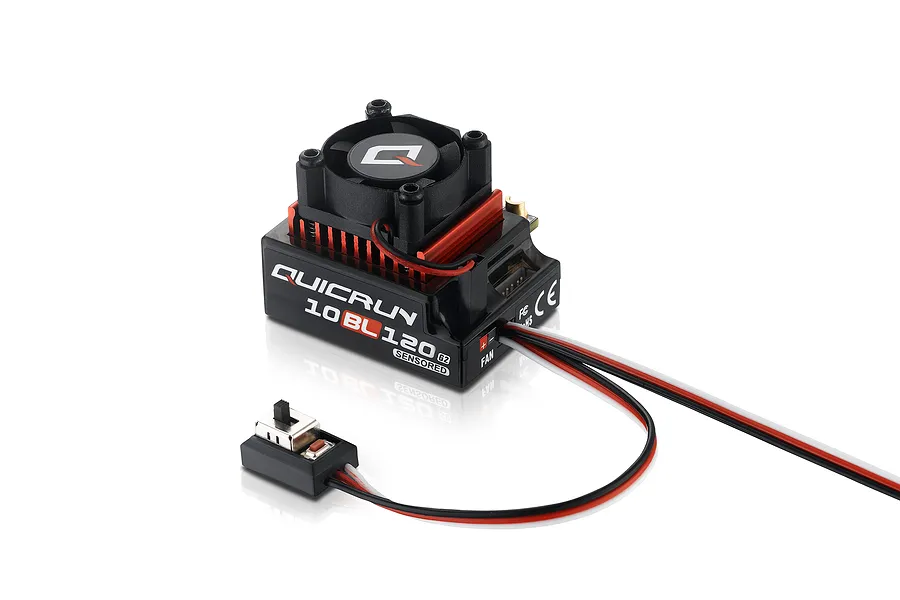

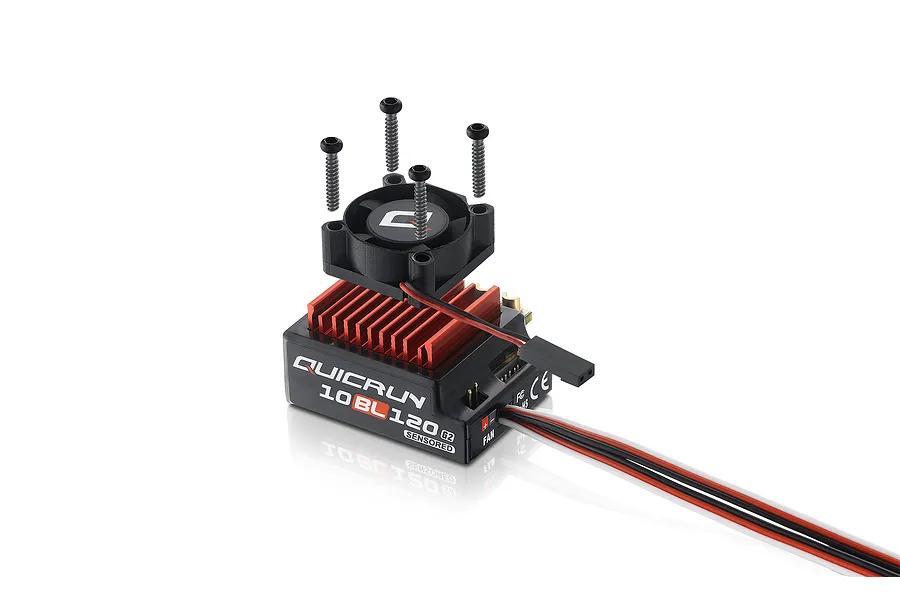

Hobbywing Quicrun 10BL120 120A Sensored Brushless ESC
Related Products
Description
Built upon the renowned quality and durability of Hobbywing, the new 10BL120 G2 ESC takes user-friendliness to the next level. Its streamlined design and intuitive setup make it the perfect choice for 10th scale enthusiasts, whether you're a seasoned racer or a weekend warrior.
With easy set, proven reliability and an incredible ability to handle difficult conditions, the 10BL120 is sure to impress.
Features
- Motor rotation adjustment compatible
- Programmable through on board button
- Low voltage, Overheat, Signal Loss and Voltage over load protection built in
- BEC upgrade
- Boost/Turbo timing technology
- Compatible with LCD program box PRO, LED Program Card (purchase separately)
Included Items
- 1x Hobbywing Quicrun 10BL120 120A Sensored Brushless ESC
Specifications
-
Length
- 36.8 mm (1.45 in)
-
Width
- 32.3 mm (1.27 in)
-
Height
- 43 mm (1.70 in)
-
Weight
- 101.5 g (3.57 oz)
-
Continuous/Peak Current
- 120/760A
-
Waterproof
- No
-
Motor Limit
- 2S LiPo?4.5T 3S LiPo?10.5T 3650 Size Motor
-
BEC
- 6, 7.4V @ 4A
-
Voltage Limit
- 11.1V LiPo
-
Programmable
- Yes
-
Scale
- 1/10
-
Sensored
- Yes
ESC (Electronic Speed Controller)
-
For Motor Type
- Brushless
-
Max Voltage
- 11.1V
-
Waterproof Design
- No
-
Burst Amps
- 760A
-
Continuous Amps
- 120A
-
Motor Connectors
- 4.0mm Bullet
-
Battery Connector
- Bare Wires
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Fan
-
BEC Voltage
- 6V, 7.4V
-
Dual Motor
- No
