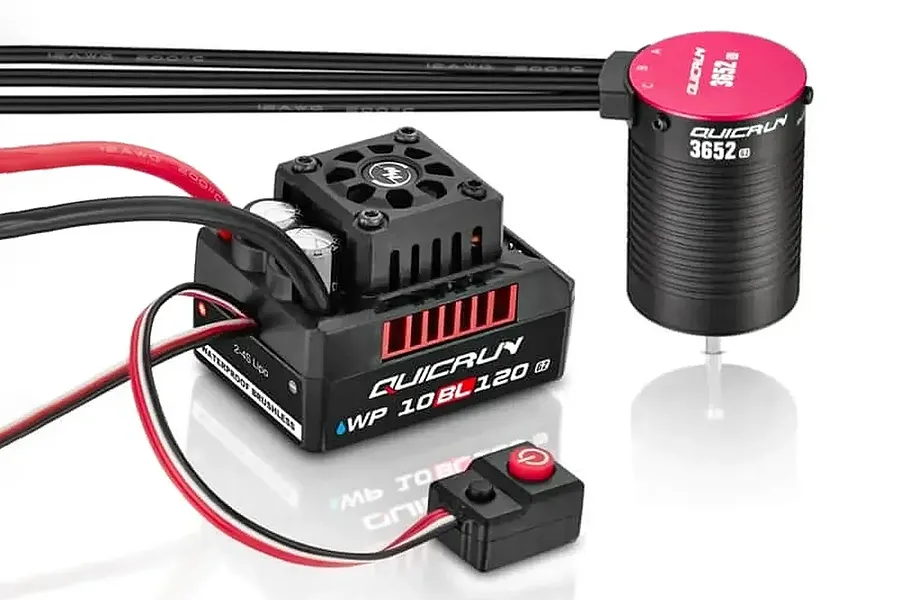

Hobbywing QR10BL120 120A ESC & 3652SL 3250kV G2 Motor Combo
Built upon the renowned quality and durability of HOBBYWING, the new 10BL120 Waterproof G2 ESC takes user-friendliness to the next level. Its streamlined design and intuitive setup make it the perfect choice for 10th scale enthusiasts, whether you're a seasoned racer or a weekend warrior. With easy set programs, proven reliability and an incredible ability to handle difficult conditions, the 10BL120 is sure to impress
This wonderful ESC has been paired by Hobbywing with the Quicrun Series of brushless motors ready to bolt straight into your rig and instantly get the most out of it.
- Motor rotation adjustment compatible
- Programmable through on board button
- Low voltage, Overheat, Signal Loss and Voltage over load protection built in
- BEC upgrade
- Boost/Turbo timing technology
- Waterproof design makes it perfect for a multitude of conditions
- Length: 39.8 mm (1.57 in)
- Width: 38.2 mm (1.50 in)
- Height: 52.8 mm (2.08 in)
- Weight: 119 g (4.20 oz)
- Continuous/Peak Current: 120/760A
- Waterproof: Yes
- Motor Limit: 3652, 3660 Sized Motors
- BEC: 6,7.4V @ 5A
- Voltage Limit: 14.8V LiPo
- Programmable: Yes
- Scale: 1/10
- Sensored: No
| Description | QTY |
|---|---|
| Hobbywing Quicrun 10BL120 120A Sensored Brushless ESC | 1 |
| Hobbywing Quicrun 3652SL 3250kV G2 Motor | 1 |
-
Continuous Amps
- 120A
-
Battery Connector
- Bare Wires
-
Motor Connectors
- Bare Wires
-
BEC Voltage
- 6V, 7.4V
-
Waterproof Design
- No
-
Cooling Method
- Fan
-
Programmable
- Yes
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Max Voltage
- 11.1V
-
For Motor Type
- Brushless
-
Dual Motor
- No
-
Burst Amps
- 760A
-
DiameterDiameter of the motor can
- 36mm
-
KVRPM (Revolutions Per Minute) per Volt
- 3250KV
-
LengthLength of the motor can
- 52mm
-
Type
- Brushless
-
Shaft Diameter (mm)
- 3.175 (1/8")
