Hobbywing Seaking V3.1 Waterproof 60A Brushless ESC
Brand: Hobbywing
|
SKU: 30302200
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

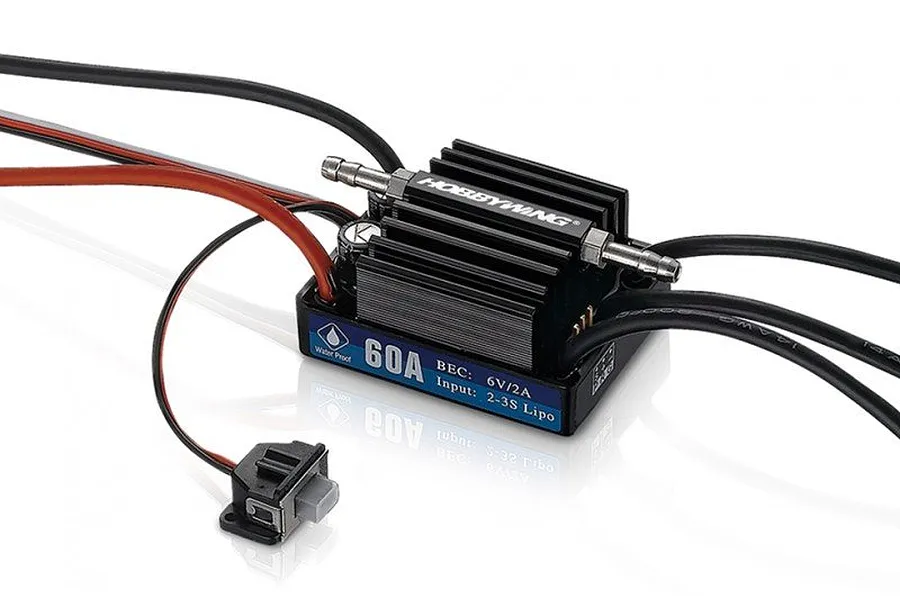

The Hobbywing Seaking V3.1 Waterproof 60A Brushless ESC is a high-quality, waterproof ESC designed for R/C boats. It features a high-efficiency water cooling system, multiple protections, and special firmware designed for RC boats.
Features
- IP67-rated waterproof design for protection against water and dust ingress
- Dedicated water cooling system for efficient heat dissipation under load
- Multi-level protection circuitry for low-voltage, thermal, and throttle signal loss scenarios
- Optimised firmware designed to maximise performance and efficiency in RC boats
- Compact and lightweight design for flexible installation in various boat hulls
- Supports high-torque brushless motors with smooth, linear throttle response
- Built-in switch-mode BEC provides 6V/3A for reliable servo operation
- Wide voltage range compatibility: 2-3S LiPo or 5-9 NiMH batteries
- Easily programmable using a compatible Hobbywing program box
- Genuine Hobbywing product
Specifications
- Length: 60.5mm (2.38 in)
- Width: 38.5mm (1.52 in)
- Height: 25.6mm (1.01 in)
- Weight: 95g (3.35 oz)
- Continuous/Peak Current: 60A/360A
- Waterproof: Yes
- Motor Limit: Brushless Motors
- BEC: 6V @ 3A
- Voltage Limit: 2-3S LiPo/5-9 Cells NiMH
- Programmable: Yes
- Boat Size: <70cm boat
- Sensored: No
Included items
| Description | QTY |
|---|---|
| Hobbywing Seaking V3.1 Waterproof 60A Brushless ESC | 1 |
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| For Motor Type: | Brushless |
| Max Voltage: | 11.1v |
| Waterproof Design: | Yes |
| Burst Amps: | 360 |
| Continuous Amps: | 60 |
| Motor Connectors: | 4.0mm Bullet |
| Battery Connector: | Bare Wire |
| LVC: | Yes |
| Programmable: | Yes |
| Cooling Method: | Water |
| BEC Voltage: | 6 |
| Dual Motor: | No |
