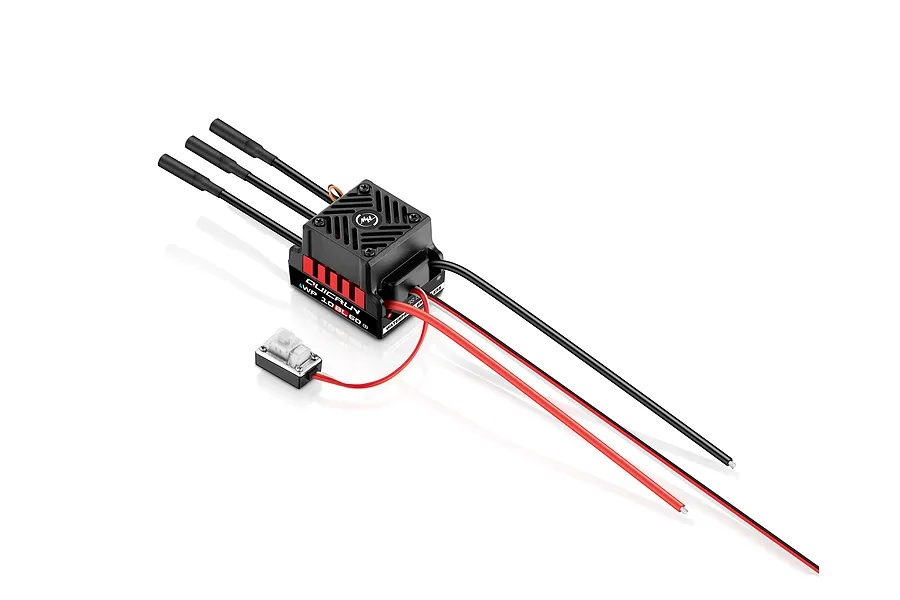

Hobbywing 10BL60 G2 60A Waterproof Brushless ESC
Brand: Hobbywing
|
SKU: 30107300
Description
The Hobbywing QuicRun WP 10BL60 G2 is a waterproof, sensorless brushless ESC designed for 1/10th scale vehicles. It offers a balance of performance, reliability, and value, making it suitable for both casual enthusiasts and competitive racers.
Features
- Waterproof and dustproof design (IP67)
- Efficient cooling system with mesh heat sink and fan
- Capacitor overheating protection
- Multiple programming methods (LCD PRO box, LED box, SET key)
- Intelligent freewheeling technology for smoother operation
- Small and compact design for easy installation
- 60A continuous / 360A burst current handling
- Genuine Hobbywing product
Specifications
- Length: 46mm (1.81 in)
- Width: 36.5mm (1.44 in)
- Height: 34.3mm (1.35 in)
- Weight: 82.6g (2.91 oz)
- Continuous/Peak Current: 60A/360A
- Waterproof: Yes
- Motor Limit: 2S LiPo: KV≤6000;3S LiPo: KV≤3500(3652/3660 size motor)
- BEC: Switch Mode 6V @3A
- Voltage Limit: 2-3S LiPo
- Programmable: Yes
- Scale: 1/10th
- Sensored: No
Included Items
- Hobbywing 10BL60 G2 60A Waterproof Brushless ESC
Specifications
ESC (Electronic Speed Controller) | |
---|---|
Burst Amps: | 360 |
For Motor Type: | Brushless |
Max Voltage: | 11.1 |
Continuous Amps: | 60 |
Motor Connectors: | 4.0mm Bullet |
Battery Connector: | Bare Wires |
LiPo Cut-off: | Yes |
Programmable: | Yes |
Waterproof Design: | Yes |
Cooling Method: | Fan |
BEC Voltage: | 6 |
Dual Motor: | No |
