MST XBL 60A Brushless ESC
MST XBL 60A Brushless ESC
MST XBL 60A ESC: Reliable Power with Efficient Cooling and Overheat Protection
Efficient Cooling System with Mesh Heat Sink and Fan
Capacitor Overheating Protection
Durable and Designed for 1/10th Scale Vehicles
Genuine MST Product

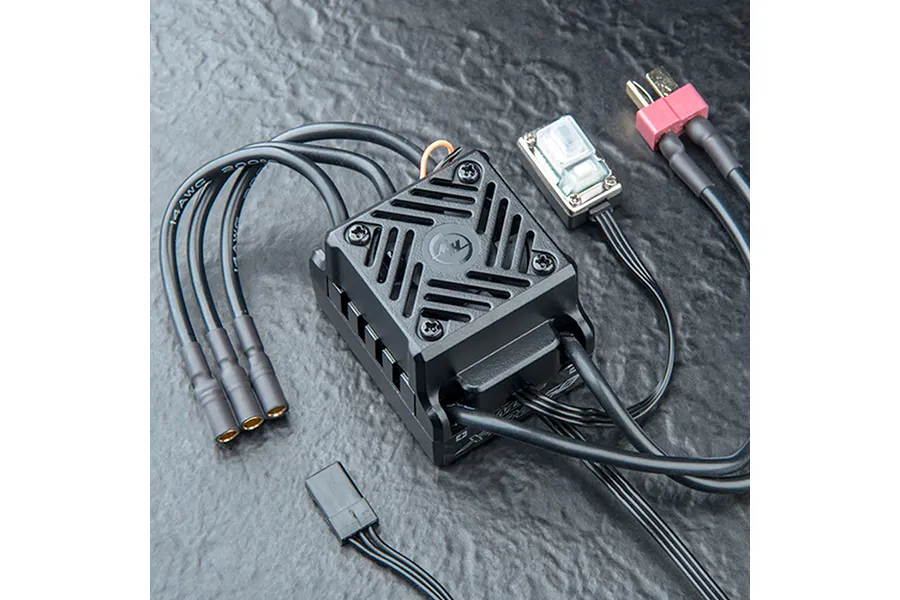

The MST XBL 60A ESC is a waterproof, sensorless brushless ESC designed for 1/10th scale vehicles. Using a base of brilliant Hobbywing electronics this ESC offers a balance of performance, reliability, and value, making it suitable for both casual enthusiasts and competitive drifters.
Waterproof and dustproof design (IP67)
Efficient cooling system with mesh heat sink and fan
Capacitor overheating protection
Multiple programming methods (LCD PRO box, LED box, SET key)
Intelligent freewheeling technology for smoother operation
Small and compact design for easy installation
60A continuous / 360A burst current handling
Hobbywing internals
Genuine MST product
1x MST XBL 60A Brushless ESC
-
Length
- 46mm (1.81")
-
Width
- 36.5mm (1.44")
-
Height
- 34.3mm (1.35")
-
Weight
- 82.6g (2.91 oz)
-
Continuous/Peak Current
- 60A/360A
-
Waterproof
- Yes
-
Motor Limit
- 2S LiPo: KV≤6000；3S LiPo: KV≤3500（3652/3660 size motor）
-
BEC
- Switch Mode 6V @3A
-
Voltage Limit
- 2-3S LiPo
-
Programmable
- Yes
-
Scale
- 1/10th
-
Sensored
- No
-
For Motor Type
- Brushless
-
Max Voltage
- 11.1V
-
Waterproof Design
- Yes
-
Burst Amps
- 360A
-
Continuous Amps
- 60A
-
Motor Connectors
- 4.0mm Bullet
-
Battery Connector
- Deans
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Fan
-
BEC Voltage
- 6V
-
Dual Motor
- No
