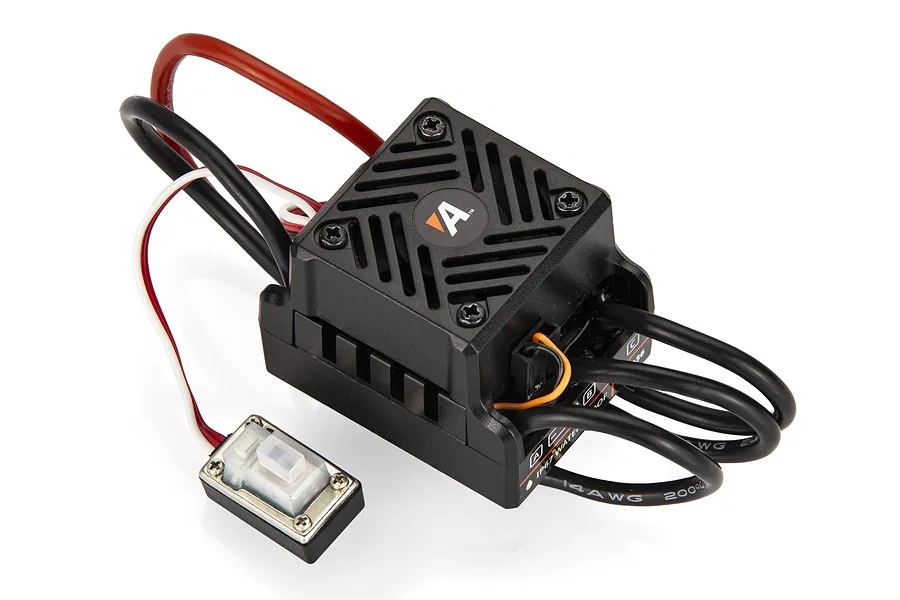

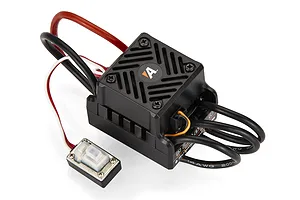

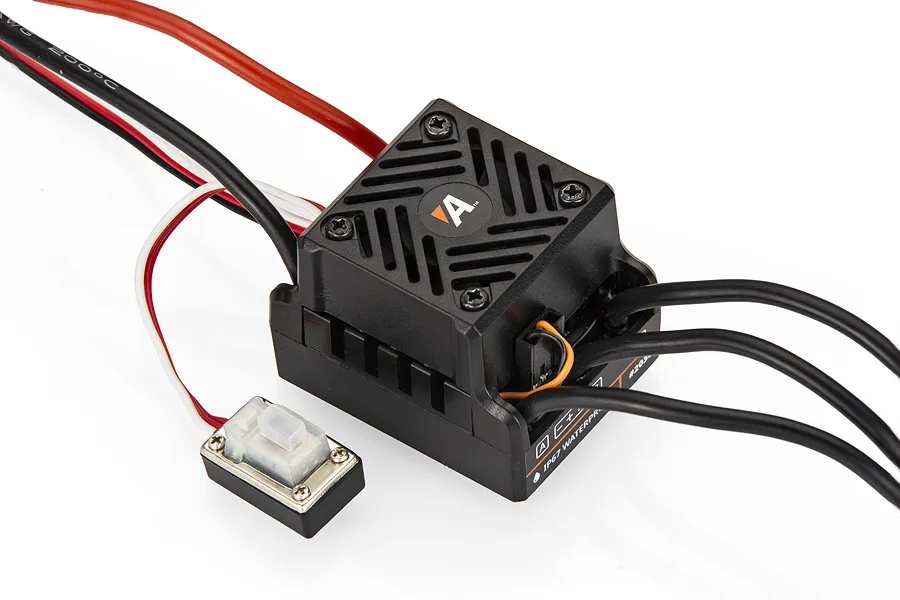

Atrek 10BL60 G2 60A Waterproof Brushless ESC
Atrek 10BL60 G2 60A Waterproof Brushless ESC
A Durable and Reliable ESC for All-Weather Racing
IP67 Waterproof and Dustproof Construction
Intelligent Freewheeling for Cooler Operation
3S LiPo Capable for Exciting High-Speed Performance
Power your 1/10th scale vehicle with the reliable and robust Atrek WP (Waterproof) 10BL60 G2. This 60A brushless ESC (Electronic Speed Control) is designed for all-weather operation, boasting an IP67 (Ingress Protection) rating that provides excellent protection against water and dust, allowing you to run in a variety of harsh conditions.
Engineered with intelligent freewheeling technology, the G2 runs cooler and more efficiently than its predecessor. It features an effective cooling system with a fan and a built-in capacitor overheating protection function for superior reliability. The ESC is compatible with 2-3S LiPo (Lithium Polymer) batteries and includes a 6V, 3A switch-mode BEC (Battery Eliminator Circuit) to power your vehicle's electronics.
With its compact design and simple programmeming options via the onboard SET button or an optional programme box, the Atrek 10BL60 G2 is a fantastic, high-quality choice for entry-level users all the way to experienced bashers that are looking for a dependable bruhsless power solution.
Features intelligent freewheeling technology for higher efficiency and lower running temperatures
A fully IP67 waterproof and dustproof design allows for all-weather operation
Built with a robust and efficient cooling system, including a mesh heat sink and fan
Includes capacitor overheating protection to prevent damage from overload usage
Compact and lightweight design makes for a clean and easy installation in most 1/10 vehicles
Supports multiple programming methods including the SET button and optional program boxes
Capable of handling up to 3S LiPo power for high-speed performance
Genuine Atrek RC Product
Length: 46mm (1.81")
Width: 36.5mm (1.44")
Height: 34.3mm (1.35")
Weight: 82.6g (2.91oz) (Included wires & connectors)
Continuous/Peak Current: 60A/360A
Waterproof: Yes
Motor Limit: 2S LiPo: KV≤6000；3S LiPo: KV≤3500（3652/3660 size motor）
BEC Output: Switch Mode 6V @3A
Voltage Limit: 2-3S Lipo
Programmable: Yes
Scale: 1/10th
Sensored: No
1x Atrek 10BL60 G2 60A Waterproof Brushless ESC
1x Instruction Manual
-
Burst Amps
- 360A
-
Continuous Amps
- 60A
-
For Motor Type
- Brushless
-
Motor Connectors
- 4.0mm Bullet
-
Battery Connector
- Deans
-
BEC Voltage
- 6V
-
Dual Motor
- No
-
Cooling Method
- Fan
-
Waterproof Design
- Yes
-
Programmable
- Yes
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Max Voltage
- 11.1V
