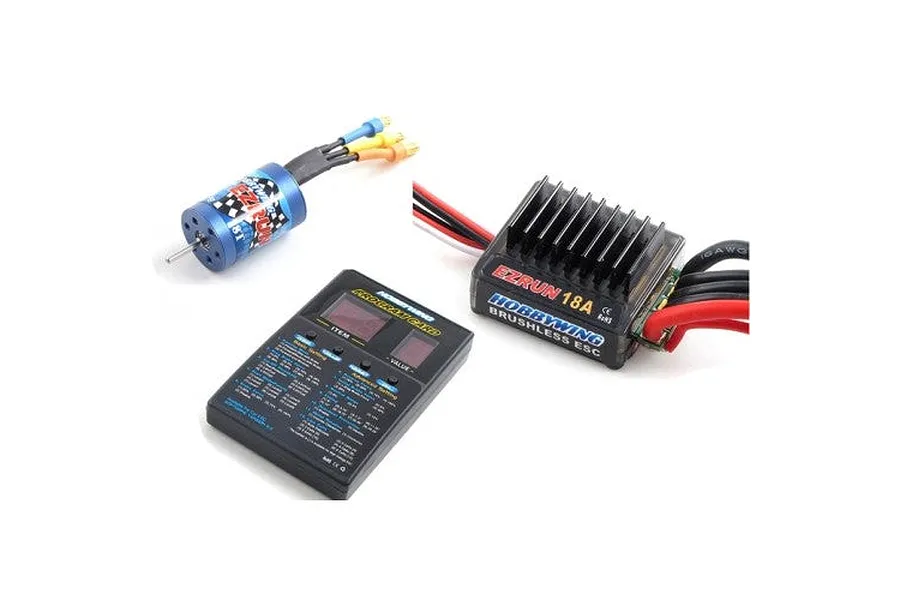

Hobbywing EzRun 2030SL 5200Kv Brushless Motor and 18A ESC Combo

Hobbywing EzRun 2030SL 5200Kv Brushless Motor and 18A ESC Combo

Hobbywing EzRun 2030SL 5200Kv Brushless Motor and 18A ESC Combo

Brand: Hobbywing | MPN: 81030010
discontinued
Description

Hobbywing universal 1/16, 1/18 brushless kit — this combo features a powerful 5200Kv 2030SL brushless motor which fits a wide range of 1/16 & 1/18 RC vehicles. Also included is a compact 18A brushless ESC which makes it the perfect upgrade brushless kit for 1/16, 1/18 RC models. Even if you're looking for a powerful brushless combo for a scratch build or custom project, this combo is a fantastic option to get the most out of your 1/16, 1/18 RC model.

Note

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Specifications
Motor:
Max Input Voltage
3S 11.1V LiPo
Weight
46g (1.62oz)
Motor Diameter
20mm
Motor Length
30mm
Shaft Diameter
2mm
Connector
3.5mm bullet
ESC:
Max Input Voltage
2–3S LiPo / 4–9 Cells NiMH
Amp Rating
18A
Brake
Proportional with Adjustable Braking Force
Low Voltage Cut-Off
Yes, programmable
Size
31.5 x 27.5 x 15mm
Weight w/ Wires
19g
Output Motor Connectors
3.5mm bullet

Motor
Type
Brushless
KV
RPM (Revolutions Per Minute) per Volt
5200KV
Length
Length of the motor can in mm
30mm
Diameter
Diameter of the motor can
20mm
Shaft Diameter
2mm
Turns
Turns affect speed and torque: low = fast, high = strong
18
ESC (Electronic Speed Controller)
For Motor Type
Brushless
Max Voltage
11.1V
Waterproof Design
No
Continuous Amps
18A
Motor Connectors
3.5mm Bullet
Battery Connector
Mini Tamiya
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Programmable
Yes
Cooling Method
Air
BEC Voltage
6V
Dual Motor
No
