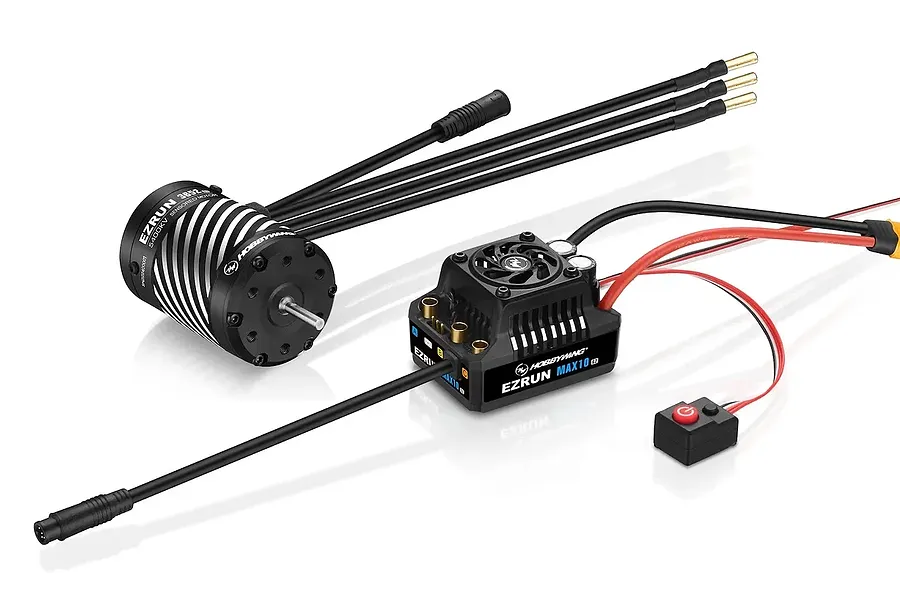

Hobbywing Max10 G2 80A ESC & 3652SD 5400Kv Brushless Motor Combo
Hobbywing Max10 G2 80A ESC & 3652SD 5400Kv Brushless Motor Combo
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
-
Type
- Brushless
-
KVRPM (Revolutions Per Minute) per Volt
- 3300KV
-
LengthLength of the motor can in mm
- 52mm
-
DiameterDiameter of the motor can
- 36mm
-
Shaft Diameter
- 3.175 (1/8")mm
-
For Motor Type
- Brushless
-
Max Voltage
- 11.1V
-
Waterproof Design
- Yes
-
Continuous Amps
- 60A
-
Motor Connectors
- 3.5mm Bullet
-
Battery Connector
- N/A
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Fan
-
BEC Voltage
- 6V
-
Dual Motor
- No
