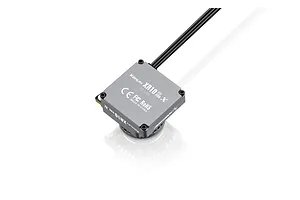

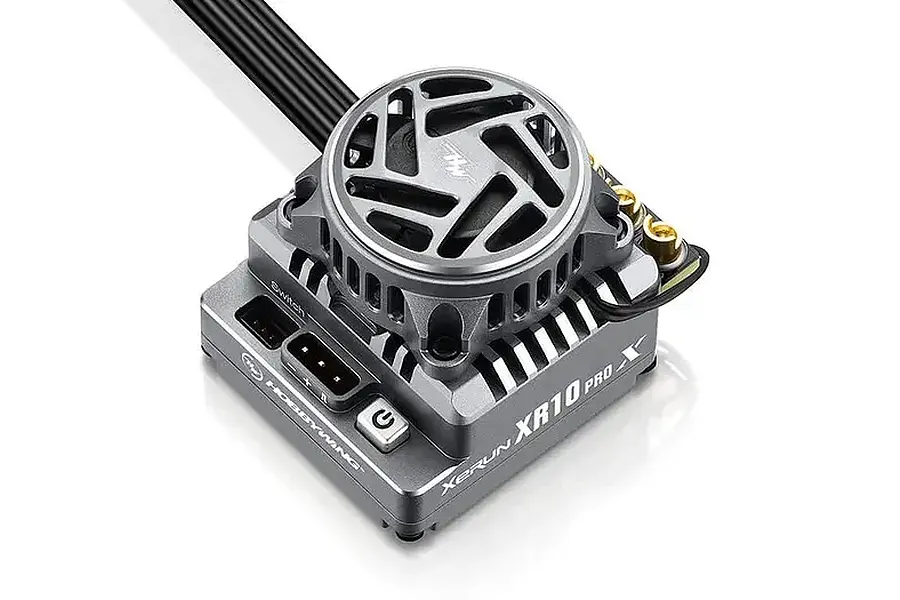

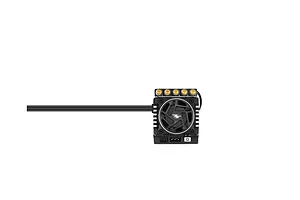

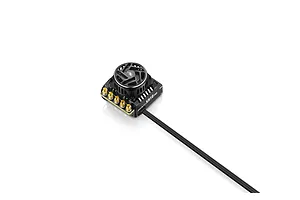

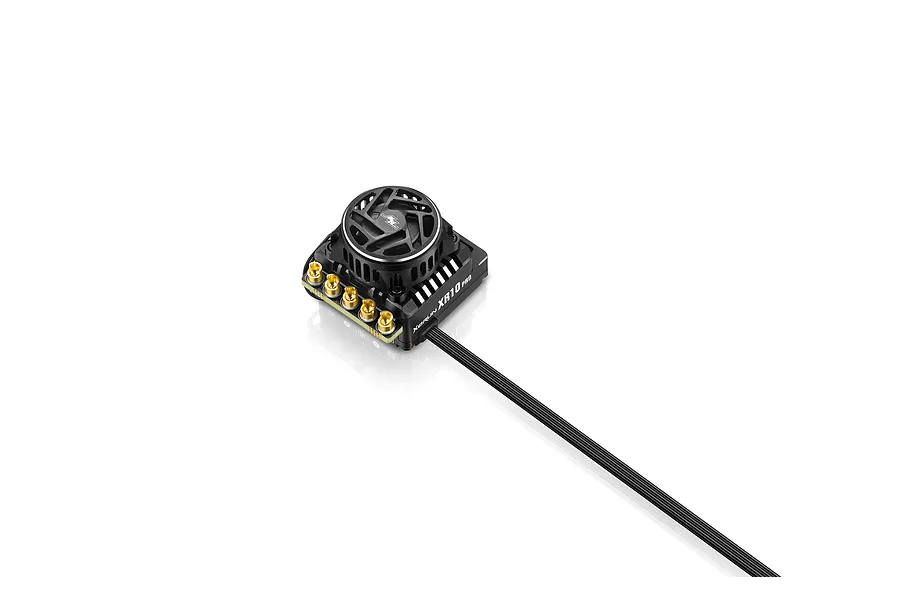

Hobbywing XeRun XR10 Pro G3 Brushless Sensored ESC
Hobbywing XeRun XR10 Pro G3 Brushless Sensored ESC
Hobbywing XeRun XR10 Pro G3: Packed with Advanced Features for Serious Racers
Designed for 1/10th scale competition racing
Delivers 160A continuous and 1200A burst current
Features a 32-bit processor for smooth and precise throttle control
Includes an adjustable switch-mode BEC with 5V-7.4V output
Offers programmable parameters and data logging capabilities
Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
The Hobbywing XeRun XR10 Pro G3 is a high-performance, sensored brushless ESC that's engineered for victory. Designed for 1/10th scale touring car and buggy racing, this ESC delivers a perfect balance of power, precision, and advanced features to give you the edge on the track.
Experience smooth, responsive throttle control and lightning-fast acceleration with the XR10 Pro G3's 32-bit M4 processor and advanced algorithms. The built-in data logging function allows you to analyze your performance and fine-tune your setup for optimal results. With its low centre of gravity design and optimised cable output, the XR10 Pro G3 is easy to install and wire in your vehicle. Take your racing to the next level with the Hobbywing XeRun XR10 Pro G3.
Advanced 32-bit M4 microprocessor for precise control and rapid response
High power output with a continuous current of 160A and a burst current of 1200A
Built-in switch mode BEC with a maximum output of 6A and adjustable voltage from 5V to 7.4V
Multiple programmable parameters for fine-tuning performance
Data logging capability for analysing performance data
Firmware upgradeable for staying up-to-date with the latest features
Compatible with sensored and sensorless brushless motors
Genuine Hobbywing product.
1x Hobbywing XeRun XR10 Pro G3 Brushless Sensored ESC
-
Length
- 35.0 mm (1.38")
-
Width
- 33.6 mm (1.32")
-
Height
- 30.3 mm (1.19")
-
Weight
- 93 g (3.28 oz) (with wires)
-
Continuous/Peak Current
- 160A/1200A
-
Waterproof
- No
-
Motor Limit
- Sensored brushless motors / Sensorless brushless motors (designed for 1/10th Touring car & Buggy racing; 1/10th Drift, F1, Rally)
-
BEC
- Switch Mode 5V-7.4V @ 6A
-
Voltage Limit
- 2S LiPo
-
Programmable
- Yes (via LCD G2 Program Box, LCD PRO, OTA Programmer, Separate Program Port)
-
Scale
- 1/10th
-
Sensored
- Yes
-
For Motor Type
- Brushless Sensored
-
Max Voltage
- 7.4V
-
Waterproof Design
- No
-
Burst Amps
- 1200A
-
Continuous Amps
- 160A
-
Motor Connectors
- N/A
-
Battery Connector
- N/A
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Fan
-
BEC Voltage
- 5V, 7.4V
-
Dual Motor
- No
