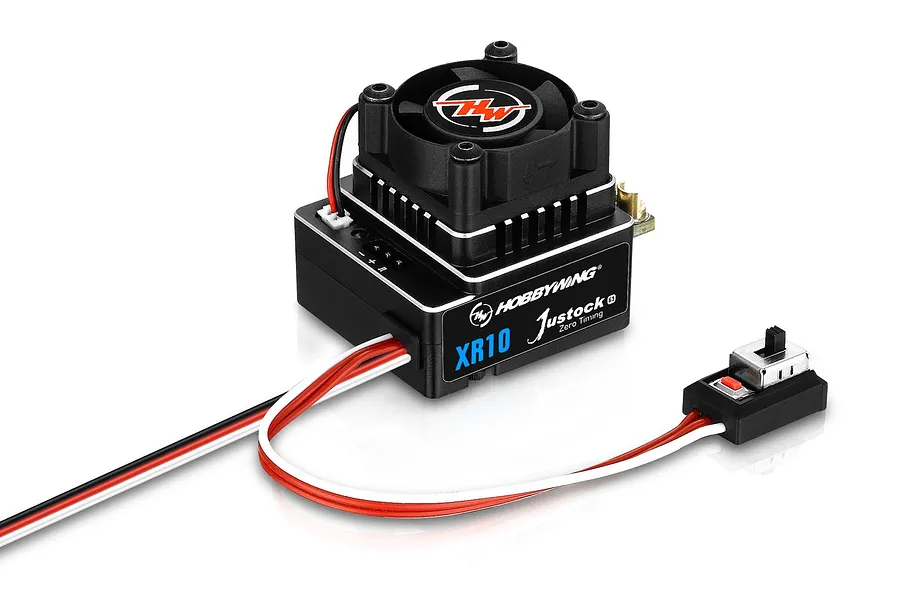

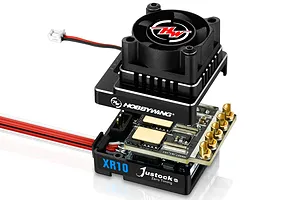

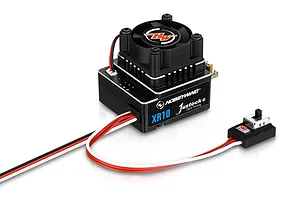

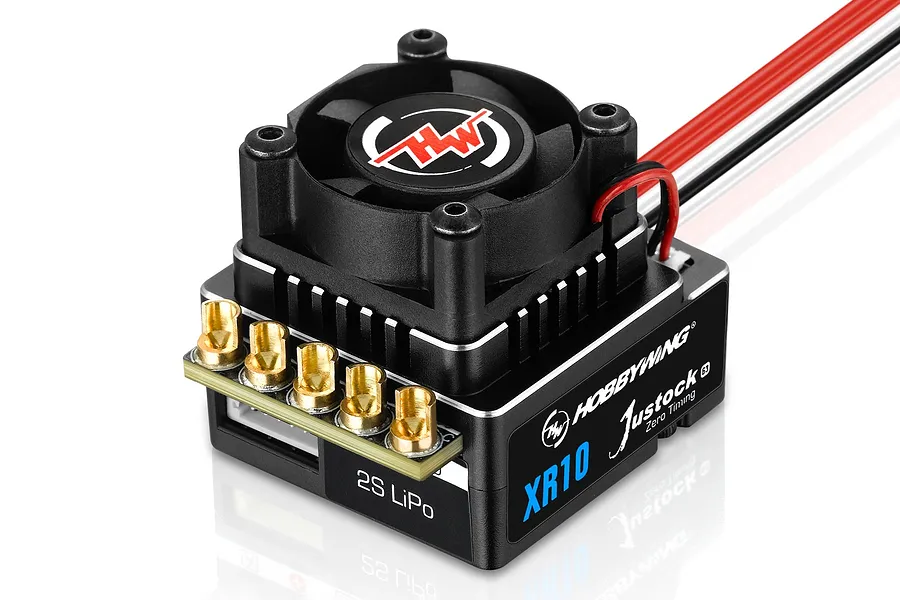

Hobbywing XR10 Justock G3 60A Sensored Brushless ESC

Hobbywing XR10 Justock G3 60A Sensored Brushless ESC

Hobbywing XR10 Justock G3 60A Sensored Brushless ESC

Brand: Hobbywing | SKU: 30112003
discontinued
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Designed to provide the edge in competitive racing, the Hobbywing XR10 Justock G3 60A Sensored Brushless ESC combines advanced features with user-friendly operation. The ESC's zero-timing design and RPM speed limit function ensure compliance with different race rules in various competitions, while its built-in protections and upgradeable firmware offer a high level of reliability and future-proofing.

Features
  • Zero timing competition design for fair play

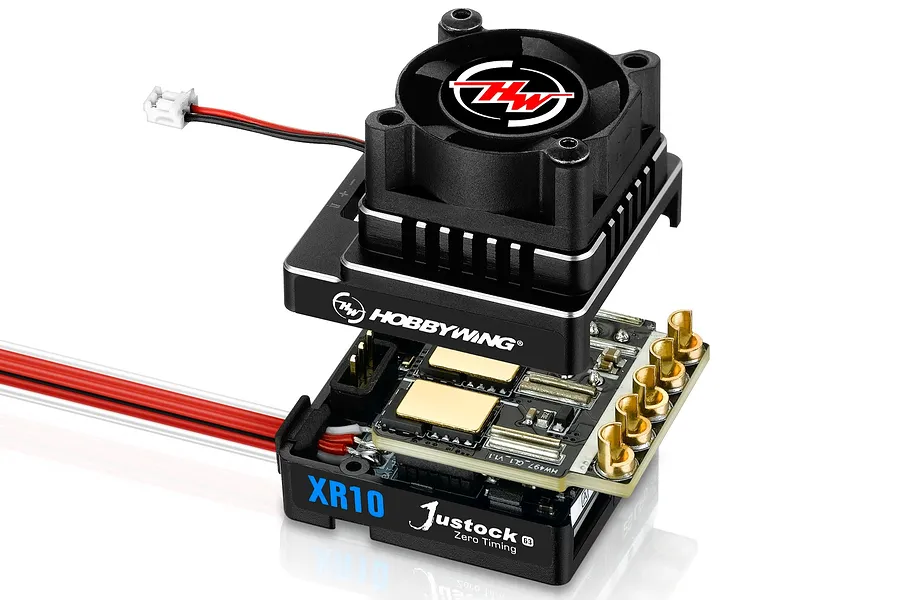

  • Built-in capacitor module for space-saving and reliability
  • Supports bi-directional motor movement for versatility
  • Built-in polarity protection for added safety
  • RPM speed limit function with 6-speed selection
  • Built-in BEC supporting high-voltage steering gear (6V/7.4V, 8A)
  • Single programming and RESET design button for easy setup
  • Genuine Hobbywing product
Specifications
  • Length: 40.9mm (1.61 in)
  • Width: 33.9mm (1.33 in)
  • Height: 32.1mm (1.26 in)
  • Weight: 75.4g (2.66 oz)
  • Continuous/Peak Current: 60A/380A
  • Waterproof: No
  • Motor Limit: ≥10.5T 3650 Motor
  • BEC: 6V,7.4V @ 4A
  • Voltage Limit: 2S LiPo
  • Programmable: Yes
  • Scale: 1/10 & 1/12
  • Sensored: Yes
Included items
Description QTY
Hobbywing XR10 Justock G3 60A Sensored Brushless ESC 1
Specifications
ESC (Electronic Speed Controller)
For Motor Type
Brushless
Burst Amps
380A
Battery Connector
N/A
Continuous Amps
60A
Dual Motor
No
Motor Connectors
N/A
BEC Voltage
6V, 7.4V
Cooling Method
Fan
Waterproof Design
No
Programmable
Yes
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Max Voltage
7.4V
