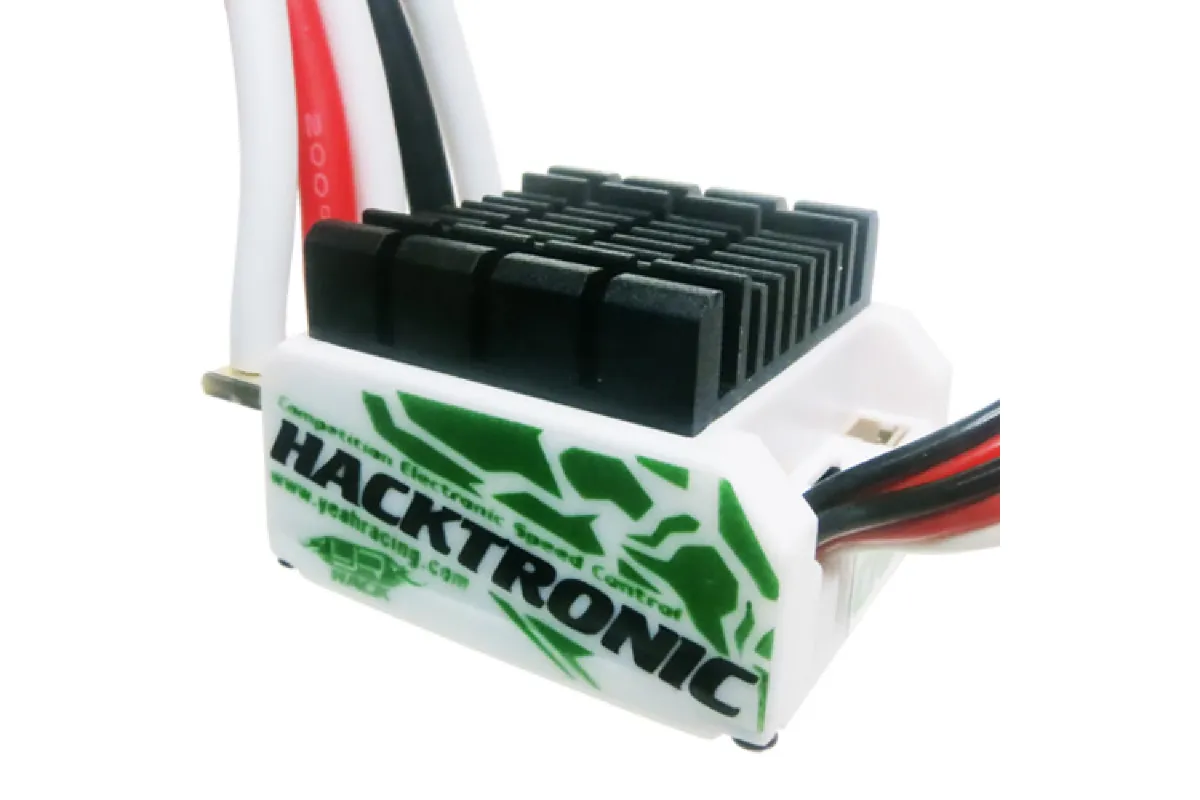

Name: Yeah Racing Hacktronic-C Crawler 120A Brushless Sensored ESC
Brand: Yeah Racing
SKU: YEA-HTN-E03
Price: 142.21 AUD
Availability: Discontinued

Overview

A revolutionary ESC that allows you to switch from Touring, Drift and Crawler programs on one ESC (with the Hacktronic Firmware Update USB Cable #HTN-303, Sold Separately). Fully Programmable in each program with its own set of parameters with very user-friendly interface.

The Hacktronic-C is the ESC Preset in Crawlers Programs which allows the change of 6 Parameters with the Hacktronic Program Card #HTN-301 (Sold Separately). 6 Parameters are Turbo Timing, Punch, RPM Lock, Brake LV, Crawler Holding, and Crawler Reverse. These parameters and programs are exquisitely designed to make the car drive more precisely on steep incline slopes and decline slopes with more control.

Note

Hacktronic Program Card #HTN-301 (Sold Separately) required to adjust parameters. Hacktronic Firmware Update USB Cable #HTN-303 (Sold Separately) required to switch to Touring or Drift programs.

Features

For: 1/10
Support Brushless Sensored Motor
Multi Protection System (Motor Lock, Overheat, Signal Fail)
Comes With 25mm Cooling Fan
User Friendly Setting Interface
Can Swap Around to Touring and Drift Program with Firmware Update USB Cable #HTN-303
Specially for Crawlers with 6 Crawler Settings (Turbo Timing, Punch, RPM Lock, Brake LV, Crawler Holding, and Crawler Reverse)

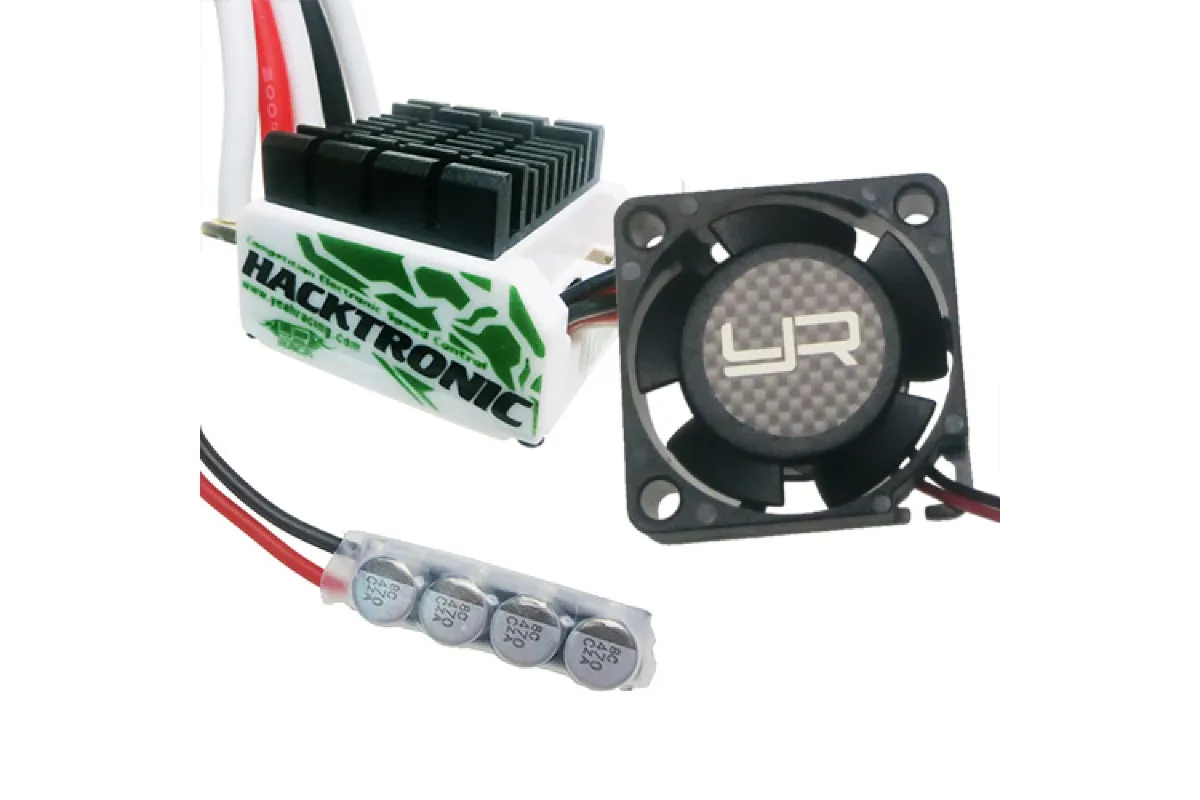

In the box

Hactronic ESC 1Pc
Cooling Fan 1Pc
Power Capacitor 1Pc
Manual

Specifications

Length	39mm
Width	31mm
Height	22.5mm
Forward/Brake/Reverse	Yes
Weight	45g
Voltage Input	4.8–9.9V DC, 3–6 Cells NiCD/NiMH, 1–2 Cell LiPO / 1–3 Cell LiFe
Peak Current	540A
Motor Limit	Over 5.5 Turns
B.E.C	6V / 3.0A

ESC (Electronic Speed Controller)

For Motor Type	Brushless
Max Voltage	7.4V
Waterproof Design	No
Continuous Amps	120A
Motor Connectors	N/A
Battery Connector	Deans
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes
Cooling Method	Fan
BEC Voltage	6V
Dual Motor	No
