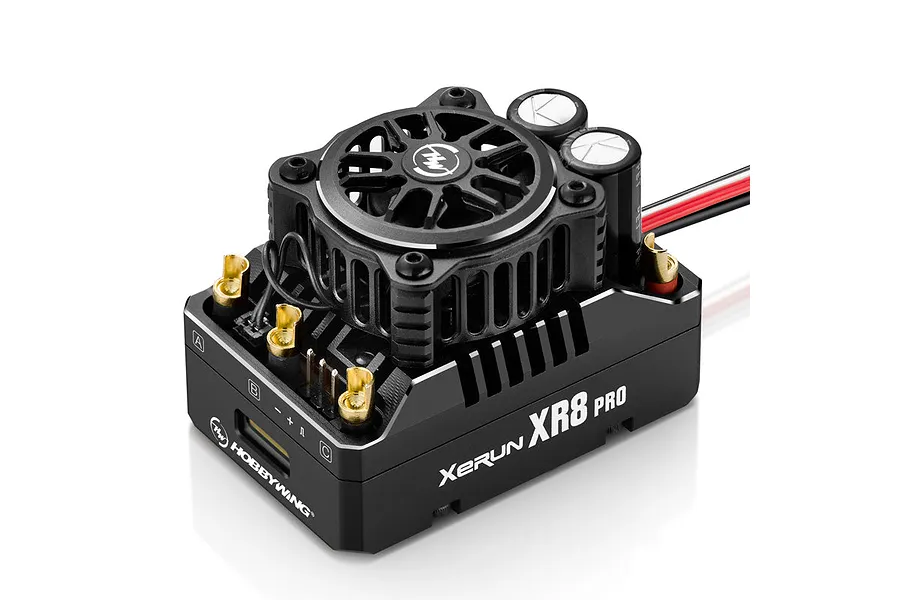

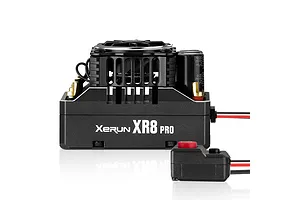

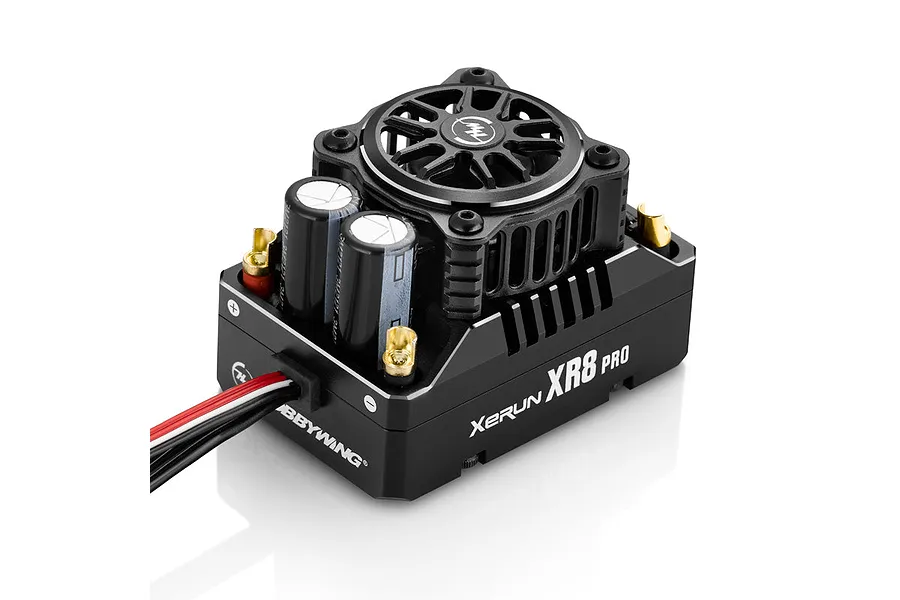

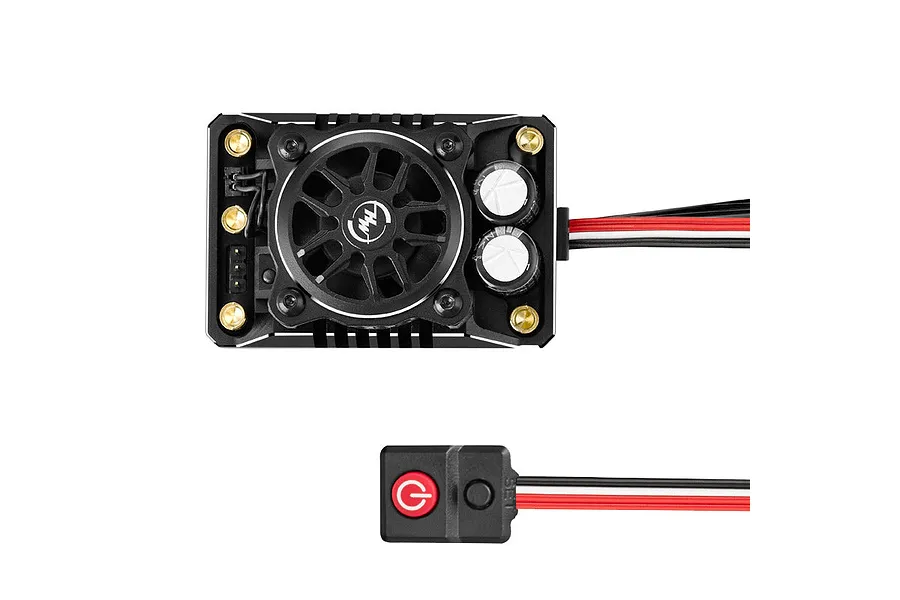

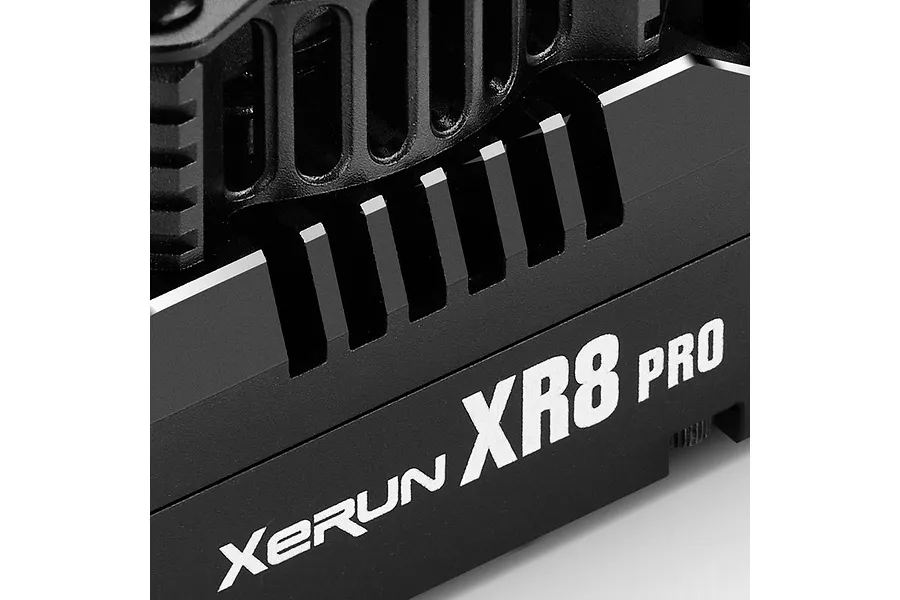

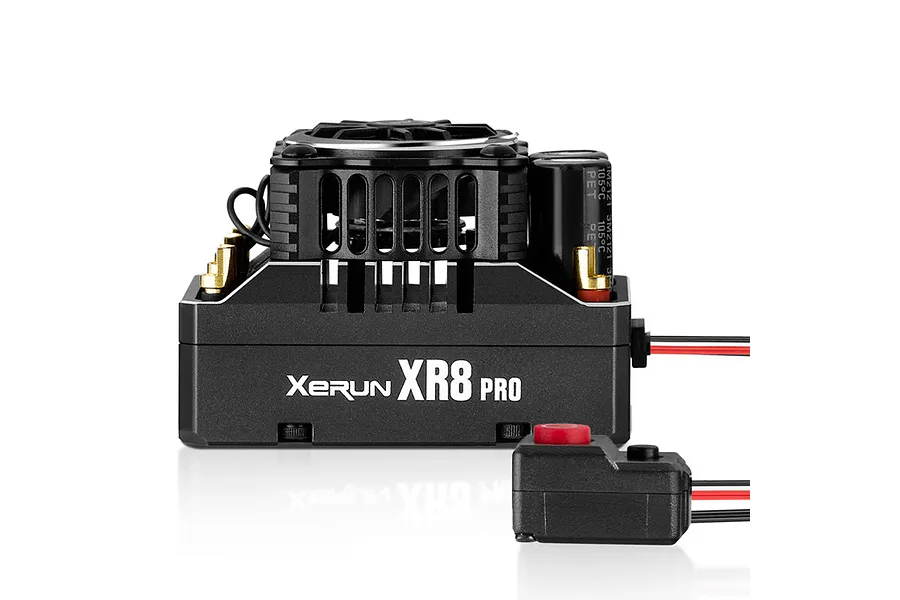

Hobbywing XR8 Pro G3 200A Sensored Brushless ESC

Hobbywing XR8 Pro G3 200A Sensored Brushless ESC

Hobbywing XR8 Pro G3 200A Sensored Brushless ESC

Brand: Hobbywing | MPN: 30113400
sold out
$262.19
or 4 fortnightly payments of $65.55 with Afterpay

Hobbywing XR8 Pro G3 200A ESC: Unleash Powerful Performance For Your 1/8 Scale Racer!

  • Powerful 1/8th scale racing ESC with 200A output

  • Compact and lightweight design for improved handling

  • Advanced features including dual brake modes and turbo timing

  • Efficient cooling with intelligent fan control

  • Compatible with Hobbywing's high-performance motors

Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description

The Hobbywing XR8 Pro G3 200A Sensored Brushless ESC is a high-performance powerhouse designed for serious 1/8 scale racers. This ESC offers a compact and lightweight design, high power output, and advanced features that will give you an edge on the track. With its 200A continuous current and 1080A burst current, the XR8 Pro G3 can handle the demands of high-powered racing. Dual brake modes, including an innovative closed-loop torque brake control, provide precise stopping power. The Advanced Boost & Turbo Timing Technology, when paired with Hobbywing 4268/4274 G3 motors, unleashes even greater performance. The XR8 Pro G3 also features efficient cooling with intelligent fan control, a frameless fan for durability, and superior dustproof protection. With its real-time data recording function, you can monitor performance and fine-tune your setup. The Hobbywing XR8 Pro G3 200A ESC is the ultimate choice for racers who demand the best.

Features
  • Compact and lightweight design with a reduced footprint compared to its predecessor

  • High power output with a continuous current of 200A and a burst current of 1080A

  • Dual brake modes: innovative closed-loop torque brake control (disc brake mode) and traditional brake mode

  • Advanced Boost & Turbo Timing Technology for increased performance when paired with Hobbywing 4268/4274 G3 motors

  • Excellent hardware design with smart freewheeling technology for higher drive efficiency and lower operating temperature

  • Intelligent fan start/stop function for noise reduction and power saving

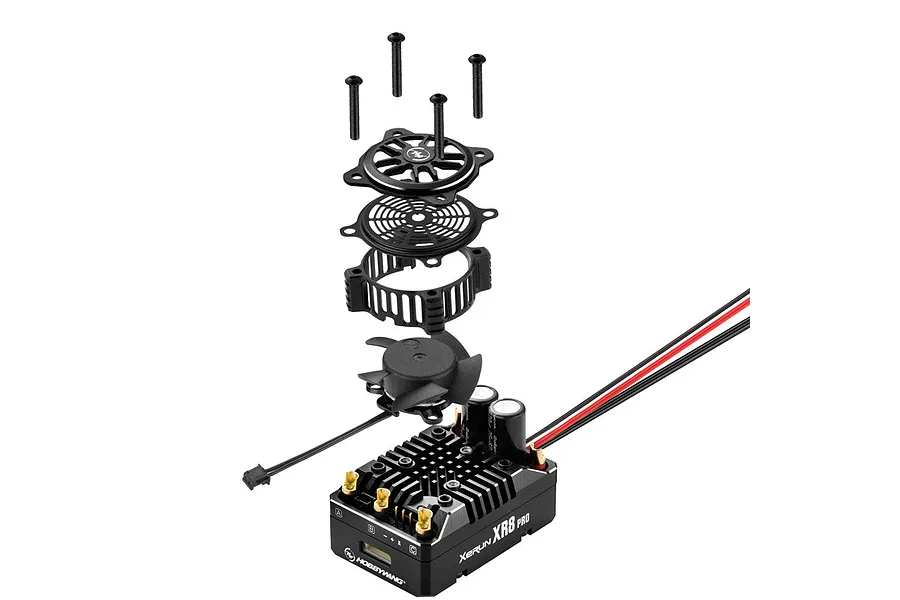

  • Frameless fan for efficient and durable cooling

  • Built-in reverse polarity protection circuit for enhanced safety

  • Real-time data recording function for monitoring performance

  • Capacitor thermal protection to prevent damage from overload

  • Superior dustproof protection with an IP5X rating

  • Custom ultra-soft 11AWG silicone wire for flexibility and low resistance

  • Genuine Hobbywing product

Included Items
  • 1x  Hobbywing XR8 Pro G3 200A Sensored Brushless ESC

Specifications
Length
54.8mm (2.16")
Width
36.8mm (1.45")
Height
38.8mm (1.53")
Weight
102.8g (3.63oz)
Continuous/Peak Current
200A/1080A
Waterproof
No
Motor Limit
4268/3660 size motor
BEC
6V/7.4V adjustable, continuous current 6A (switch-mode)
Voltage Limit
2-4S LiPo
Programmable
Yes
Scale
1/8th
Sensored
Yes

ESC (Electronic Speed Controller)
For Motor Type
Brushless Sensored
Max Voltage
14.8V
Waterproof Design
No
Burst Amps
1080A
Continuous Amps
200A
Motor Connectors
N/A
Battery Connector
Bare Wires
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Programmable
Yes
Cooling Method
Fan
BEC Voltage
6V, 7.4V
Dual Motor
No
