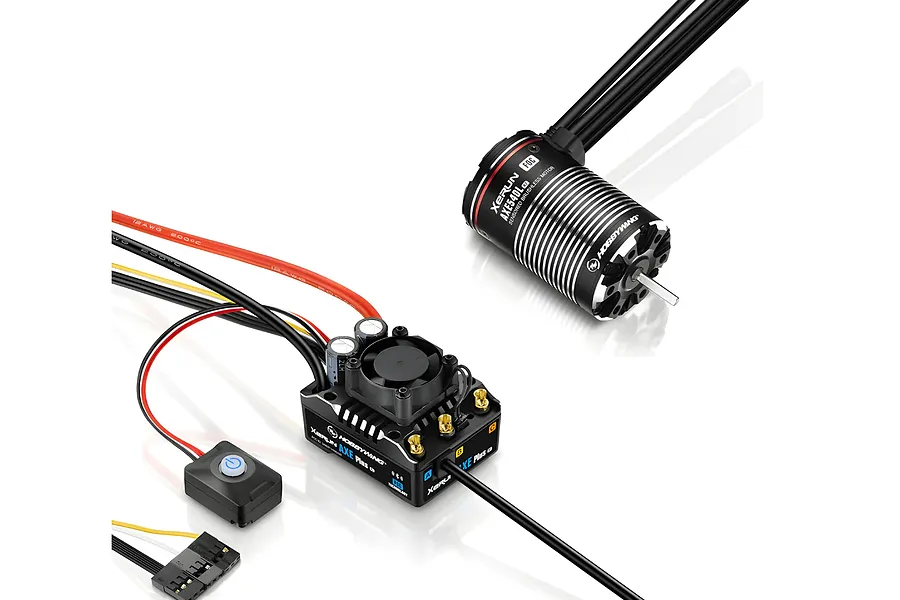

Hobbywing Xerun AXE Plus R3 135A ESC and AXE 540L 2300Kv Brushless Motor Combo

Brand: Hobbywing | SKU: 38020387

1 in stock

write a review

$400.48

Hobbywing XeRun AXE Plus R3 Combo: The Ultimate Power System for 1/10 Scale Rock Crawlers!

Sensored technology for improved response
Perfect for rock crawlers
Compatible with 1/10, 1/8 and 1/6th scale vehicles

Select Connector

XT60

Deans + $5.50

EC3 + $5.50

Other Connector + $5.50

Other Connector

Select Motor & ESC Wires Soldered

No, I Have A Soldering Iron

Yes, Solder + $5.50

Add to Wishlist

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

We'll send it today

When ordered within the next hms

Description

The Hobbywing XeRun AXE Plus R3 135A ESC and AXE 540L Brushless Motor Combo is a powerhouse designed to take your rock crawling experience up to the highest levels. This combo delivers exceptional torque and smooth control, making it ideal for tackling challenging terrains. The 135A ESC boasts advanced features like drag brake and hill-hold, specifically programmed for rock crawlers. With its waterproof and dustproof design, the XeRun AXE Plus R3 combo is ready for all-weather adventures. The motor provides ample power for tackling steep inclines and obstacles, while the CNC machined aluminium housing ensures efficient heat dissipation. Whether you're a seasoned rock crawler or just starting, the Hobbywing XeRun AXE Plus R3 combo delivers the performance and reliability you need to dominate the trail.

Features

Specifically designed for 1/10th scale rock crawlers
High power output with a continuous current of 135A and a burst current of 800A
Built-in switch mode BEC with a maximum output of 6A and an adjustable voltage of 6V or 74V
Advanced programming features including drag brake, hill hold, and variable throttle and brake curves
Multiple protection features: low-voltage cutoff, thermal protection, and overload protection
Waterproof and dustproof with an IP67 rating
4-pole 12-slot design for high torque and smooth operation
CNC machined aluminum housing for efficient heat dissipation
High-purity copper windings for maximum efficiency and performance
Powerful neodymium magnets for increased torque and power
Rebuildable design for easy maintenance and extended lifespan
Sensored technology for finer control
Genuine Hobbywing product

Specifications

ESC

Length: 49.5mm (1.95")
Width: 37.9mm (1.49")
Height: 32.8mm (1.29")
Weight: 126.5g (4.46oz)
Continuous/Peak Current: 135A/600A
Waterproof: Yes
Motor Limit: Only supports XeRun AXE R2/R3 motors
BEC: Switch Mode 6V/7.4V/8.4V @ 6A
Voltage Limit: 2-6S LiPo
Programmable: Yes (via built-in Bluetooth)
Scale: 1/10th, 1/8th, 1/6th
Sensored: Yes

Motor

KV: 2300Kv
LiPo Cells: 2-3S
Diameter: 36mm (1.42")
Length: 63.8mm (2.51")
Shaft Diameter: 3.175mm (0.125")
Weight: 268g (9.45 oz)

Included Items

1x Hobbywing Xerun AXE Plus R3 135A ESC
1x AXE 540L 2300Kv Brushless Motor

Specifications

Motor

KV RPM (Revolutions Per Minute) per Volt: 2300KV
Length Length of the motor can: 57mm
Diameter Diameter of the motor can: 36mm
Type: Sensored
Sensored Uses sensors for precise speed and position control: Yes
Shaft Diameter (mm): 3.175 (1/8")

ESC (Electronic Speed Controller)

Motor Connectors: Bare Wires
Battery Connector: XT60
Burst Amps: 600A
BEC Voltage: 6V, 7.4V, 8.4V
Waterproof Design: Yes
Cooling Method: Fan
Programmable: Yes
LVC Low Voltage Cut-Off. Required for Lithium batteries.: Yes
Max Voltage: 11.1V
Continuous Amps: 135A
For Motor Type: Brushless Sensored
Dual Motor: No
