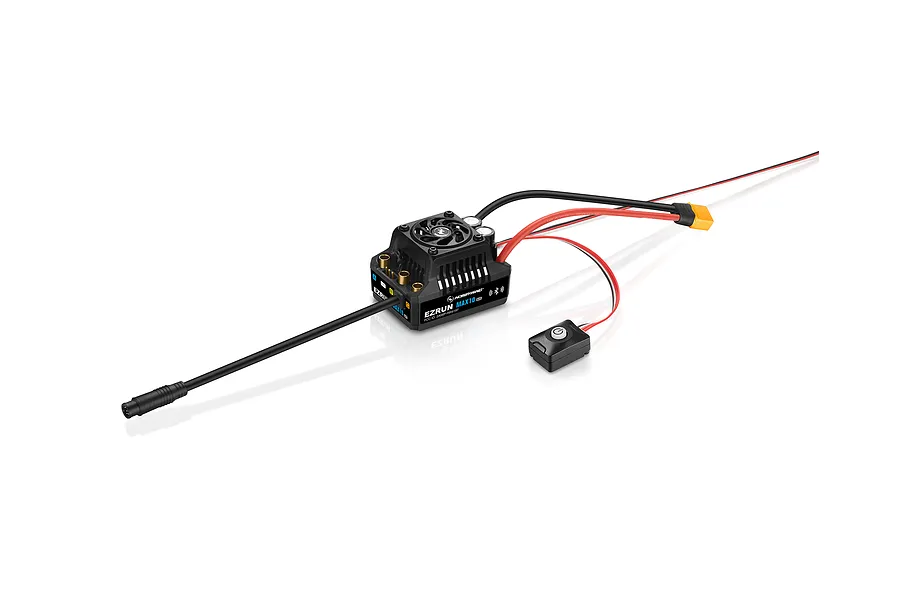

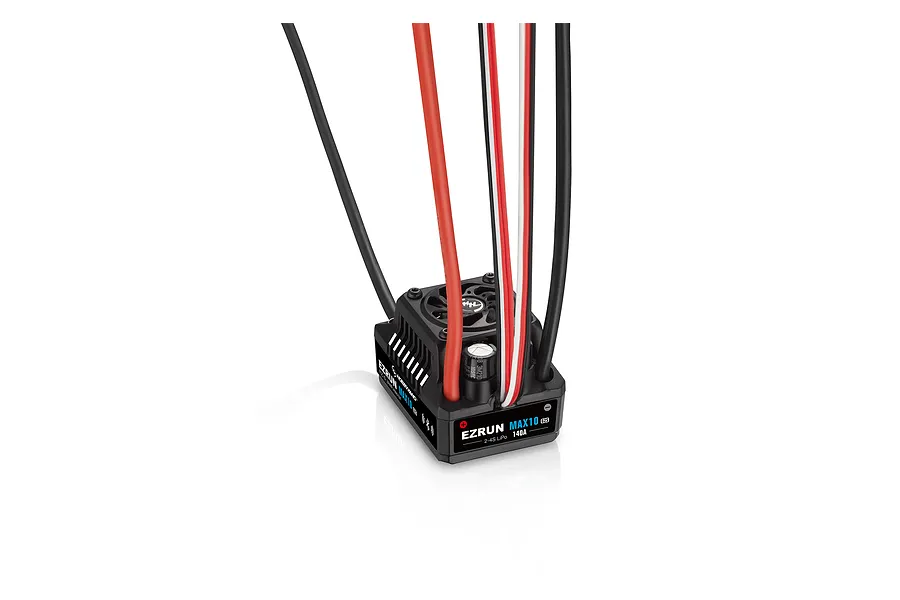

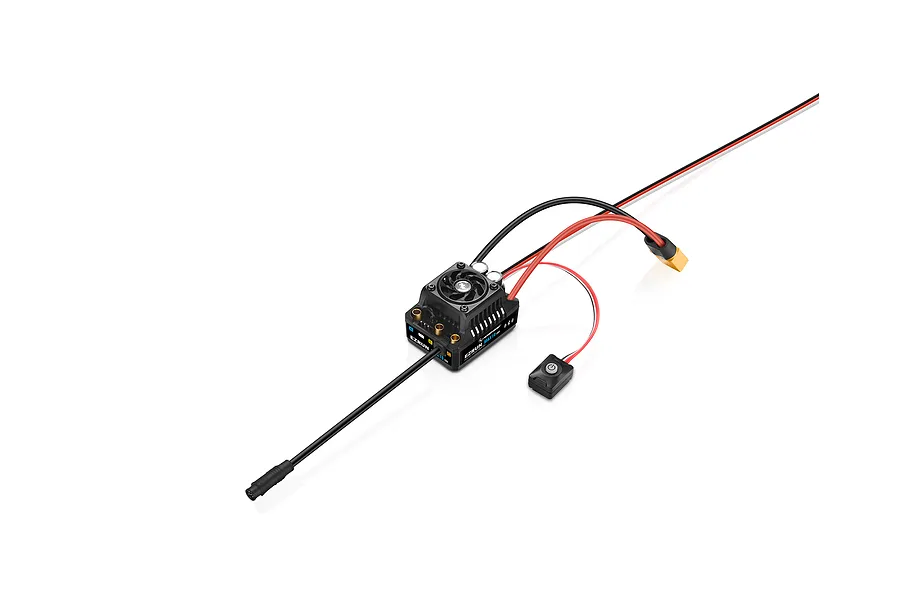

Hobbywing EzRun Max10 G2S 140A 2-4S Brushless ESC
- Brushless
Part no. 30102500
Hobbywing EzRun Max10 G2S 140A 2-4S Brushless ESC Upgrades Your 1/10 Scale Monster Truck With Massive Sensored Power
- Massive 140A Output Handles High-Speed Brushless Motors
- Sensored Brushless Technology Provides Smooth Linear Power
- Built-In Bluetooth Module Allows Wireless Smartphone Tuning
- IP67 Waterproof Rating Protects Against Harsh Weather
- Adjustable High Voltage BEC Powers High-Torque Servos
2 in stock · Ships Monday · order by Monday
Checking delivery dates…
Free 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Overview
Upgrade your 1/10-scale monster truck with this high-performance, sensorless brushless ESC. The Hobbywing EzRun Max10 G2S provides incredibly smooth and linear power output across the entire RPM range. This advanced 140A system gives you aggressive launches off the line while maintaining perfect low-speed control through technical sections of the track.
Tuning your vehicle is incredibly simple thanks to the built-in Bluetooth module located inside the power switch. You can easily adjust parameters, review real-time data logs, and update firmware directly from your smartphone using the HW LINK app. The integrated high-voltage BEC supplies reliable power to your steering servo, while the IP67 waterproof rating keeps you running in harsh weather conditions.
Features
- Massive 140A Output Handles High-Speed Brushless Motors
- Sensored Brushless Technology Provides Smooth Linear Power
- Built-In Bluetooth Module Allows Wireless Smartphone Tuning
- IP67 Waterproof Rating Protects Against Harsh Weather
- Adjustable High Voltage BEC Powers High-Torque Servos
- Turbo Timing Technology Increases Maximum Top Speed
- Intelligent Fan Control Reduces Noise And Power Consumption
- Integrated Data Logging Records Your Track Performance
- Capacitor Thermal Protection Prevents Costly Electrical Damage
- Genuine Hobbywing Product
In the box
- 1x Hobbywing EzRun Max10 G2S 140A 2-4S Brushless ESC
You'll need
- 1x Compatible 1/10 Scale RC Vehicle
- 1x Compatible Sensored Brushless Motor (3652, 3665, Or 4268 Size)
- 1x Compatible 2S-4S LiPo Battery With XT60 Connector
Specifications
| Weight | 125g (4.40oz) |
|---|---|
| Continuous Current | 140A |
| Peak Current | 880A |
| Input Voltage | 2-4S LiPo |
| BEC Output | 6V/7.4V/8.4V At 5A |
| Input Connector | XT60 |
| Output Connector | 4.0mm Gold Female |
| Specification | Compatible Vehicles: |
| Specification | 1/10 Scale Short Course Trucks And Monster Trucks |
Dimensions
| Length | 53mm (2.08") |
|---|---|
| Width | 39.5mm (1.55") |
| Height | 37.2mm (1.46") |
ESC (Electronic Speed Controller)
| For Motor Type | Brushless |
|---|---|
| Max Voltage | 14.8V |
| Waterproof Design | Yes |
| Burst Amps | 880A |
| Continuous Amps | 140A |
| Motor Connectors | 4.0mm Bullet |
| Battery Connector | XT60 |
| LVC | Yes |
| Programmable | Yes |
| Cooling Method | Fan |
| BEC Voltage | 6V, 7.4V |
| Dual Motor | No |
