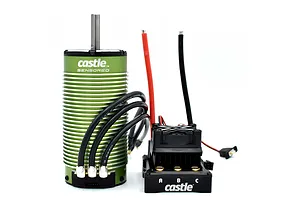

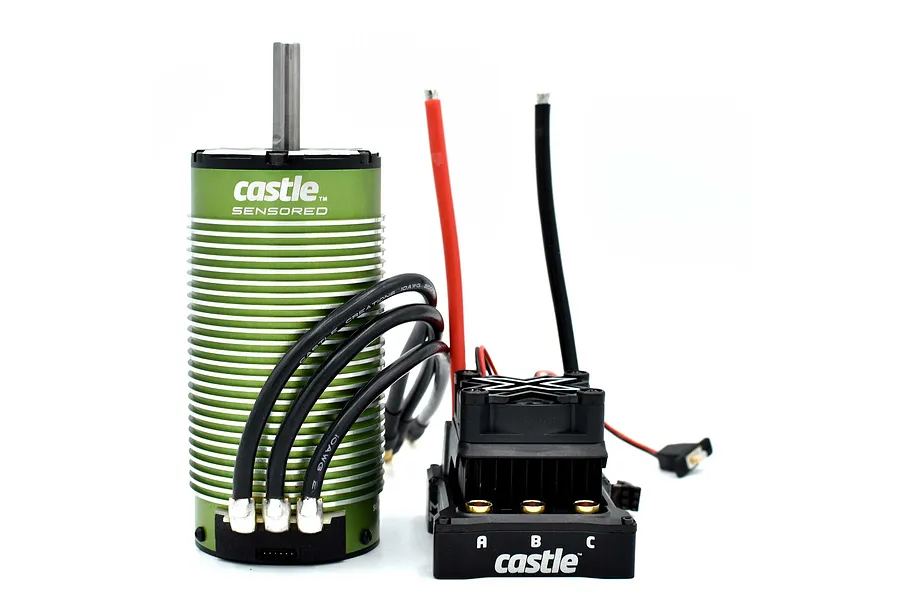

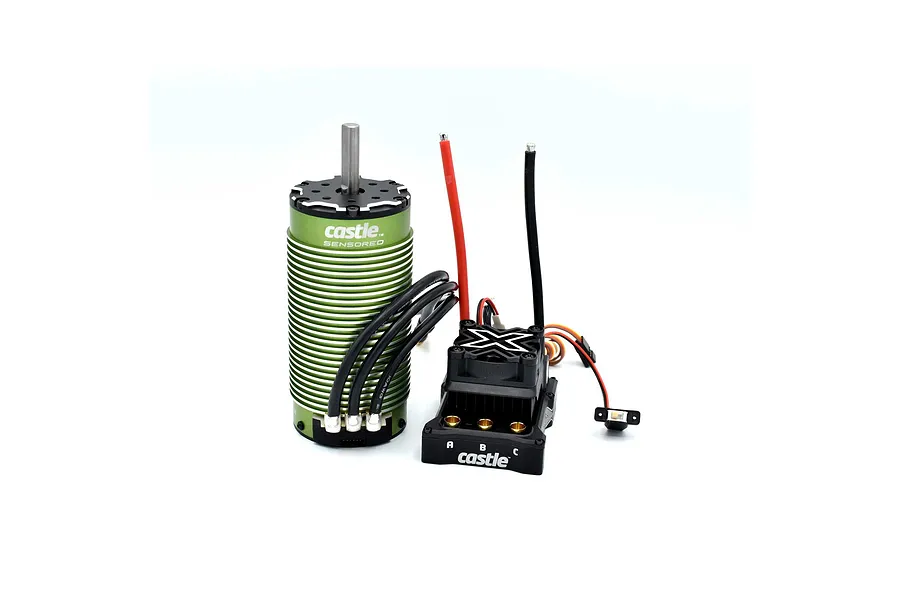

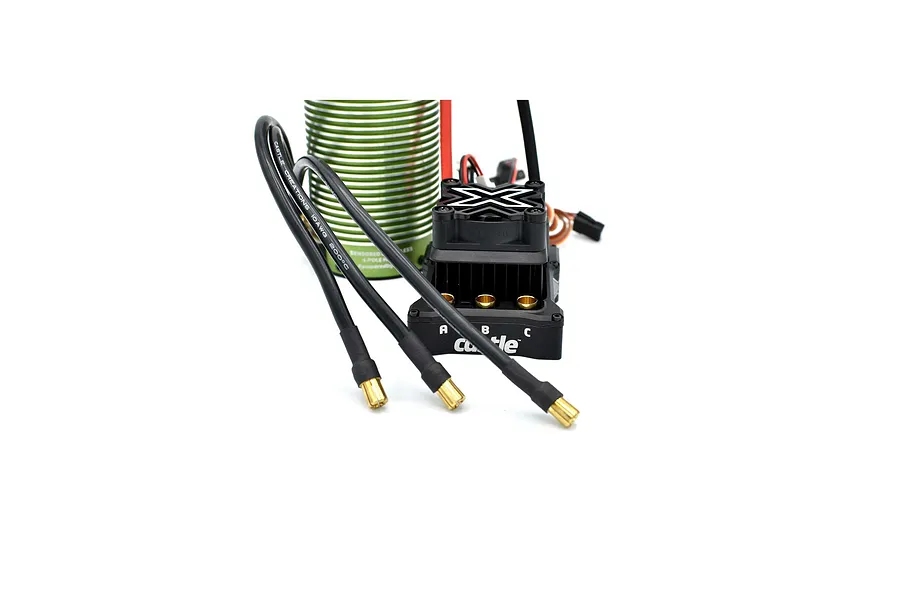

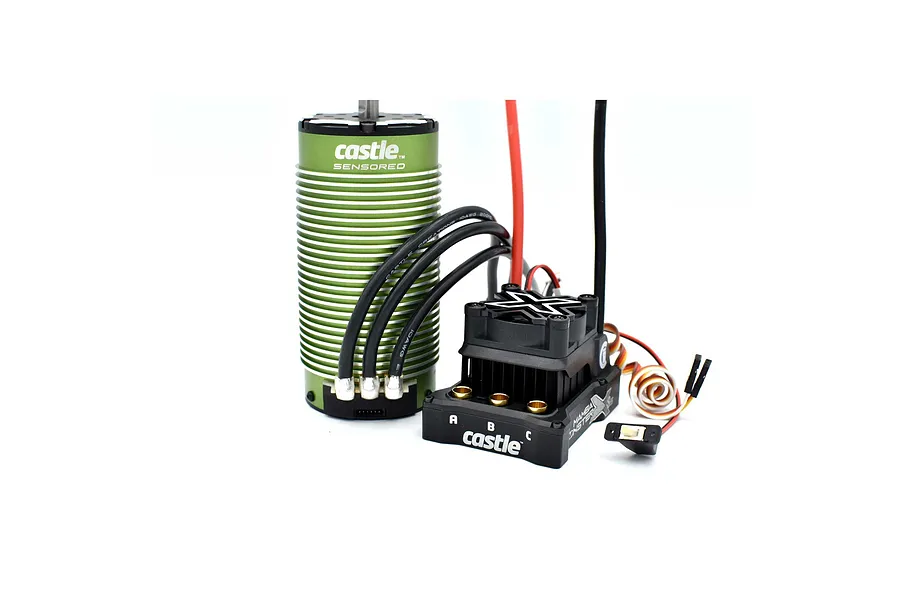

Castle Creations 2028 800Kv 4-Pole Sensored Brushless Motor & Mamba Monster X Waterproof 8S ESC Combo

  • Brushless

Part no. 010-0165-01

Sold outNo reviews yet
1 / 4
1 / 4

$819.60

or 4 fortnightly payments of $204.90 with afterpay or PayPal, or zip

Castle Creations Mamba Monster X 8S ESC & 2028-800kv sensored motor combo for 1:6th scale vehicles up to 25 lbs on up to 8S LiPo.

  • Supports vehicles up to 25 lbs on up to 8S LiPo
  • CRYO-DRIVE™ technology for reduced heat and longer runs
  • 4-pole 12-slot 2028-800kv sensored motor included
  • Waterproof CNC aluminium case with 40mm thermally controlled cooling fan
  • SmartSense™ for smooth sensored starts transitioning to ultra-efficient sensorless running
Select Male Connector
Select Wiring Configuration
$819.60

Overview

The Mamba Monster X 8S ESC supports any RC vehicle weighing up to 25 lbs running up to 8S LiPo. It utilises Castle's CRYO-DRIVE™ technology, which reduces the rate at which the ESC heats up and removes heat more efficiently, allowing the setup to handle higher gear ratios in heavier vehicles with longer runs. An open housing design with a 40mm cooling fan and forged elliptical fin heatsink maximises airflow throughout the system.

Constructed around a robust aluminium casing with epoxy potting, the Mamba Monster X 8S is designed for all-weather use. Setup profiles can be created, saved and downloaded through the Castle Link Programming Suite on Windows, or wirelessly with the B-Link Bluetooth Adapter and Castle Link app for Android or iOS. Auxiliary wire on-the-fly adjustments allow access to parameters such as Torque Control, Max Brake and Rock Race Mode from your transmitter.

When paired with the 2028-800kv 4-pole 12-slot sensored motor, SmartSense™ mode uses the motor's sensors for smooth starts, excellent torque, and low-speed drivability, then seamlessly transitions to Castle's ultra-efficient sensorless mode. CRYO-DRIVE™ minimises the time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation.

Note

Although Mamba Monster X 8S is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt. The cooling fan must be removed before driving in wet conditions.

Applying voltages higher than 33.6V will cause irreparable damage to the ESC. DO NOT run HV cells (above 4.2V/cell) when running at max cell count (8S) — this will exceed the 33.6V rating and will damage the ESC.

Features

  • ESC
  • Input voltage range 2S–8S LiPo
  • Sensorless, Sensored and SmartSense™ running modes
  • Powerful integrated 8A peak adjustable BEC (5.25V–8.0V)
  • CRYO-DRIVE™ technology for improved thermal performance during partial throttle operation
  • Rugged CNC aluminium case potted in waterproof epoxy
  • Premium forged heatsink with elliptical fins for superior airflow and increased heat dissipation
  • Oversized factory-equipped thermally controlled 40mm cooling fan
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
  • Waterproof design for all weather conditions
  • Data logging capability to capture and record performance data
  • Auxiliary wire functionality for on-the-fly adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cut-off
  • Convenient transmitter programming for six common adjustable settings
  • USB and Bluetooth programming options (B-LINK Bluetooth Adapter sold separately)
  • Proudly designed and manufactured in Olathe, KS USA; backed by Castle Creations' 1-year warranty
  • Motor
  • 4-pole 12-slot sensored design with exceptional efficiency and less heat
  • Proprietary stator winding produces low internal resistance for a cooler-running motor
  • Dual sensor ports for optimal installation in large-scale vehicles
  • Oversized NMB bearings and vibration dampening system
  • High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap

In the box

  • 1x Mamba Monster X 8S ESC
  • 1x 4-Pole Sensored 2028-800kv Motor
  • 1x Castle Decals
  • 1x Instruction Manual

You'll need

  • High current battery connector rated for 120+ amps required — such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarised Castle Connectors, soldered to the battery leads

Specifications

SpecificationESC
Application Guidelines1:6th scale vehicles weighing up to 25 lbs
Input Voltage RangeMIN 2S LiPo, MAX 8S LiPo (33.6V)
Running ModesSensored, Sensorless and SmartSense™ when paired with a Castle 4-pole 12-slot sensored motor
BrakeProportional
ReversibleYes, but may be disabled for racing
On/Off SwitchYes, waterproof
Cooling FanYes, factory equipped (40mm), fully removable
SizeL x W x H 69.5mm x 54.1mm x 47mm
Weight (with wires)5.75 oz. (163g)
Connectors6.5mm female bullets for motor connection
Operating EnvironmentWaterproof design for all weather conditions
Telemetry Link CapableYes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX transmitters
SpecificationMotor
Input Voltage Range3S–12S LiPo (8S MAX with this ESC/Motor Combo)
Kv800
Max. RPM45,000
SizeLength 4.4" (112.7mm), Diameter 2.2" (56.3mm)
Weight (w/wires)44 oz. / 1.25kg
Shaft SizeLength 30mm, Diameter 8mm
Mounting Hole Specifications4mm @ 30mm
Connectors6.5mm male connectors

Motor

TypeBrushless
KVRPM (Revolutions Per Minute) per Volt800KV
LengthLength of the motor can in mm112.7mm
DiameterDiameter of the motor can56.3mm
Shaft Diameter8mm

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage33.3V
Waterproof DesignYes
Motor Connectors6.5mm Bullet
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC VoltageProgrammableV
Dual MotorNo
